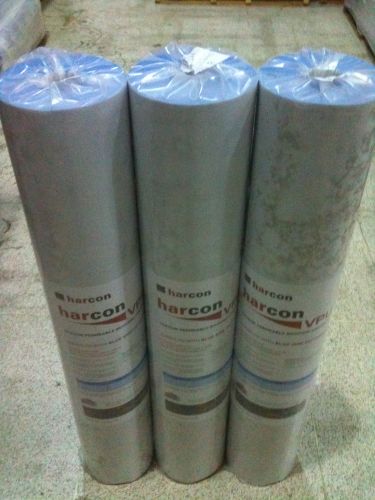

Harcon Vapour Permeable Underlay (VPU) (50m x 1.5m)

Code:
VPU150DL
Free UK Delivery

Harcon Vapour Permeable Premier Underlay (50m x 1.5m) Water Vapour Resistance 0.20 MNs/g Superb water resistance 3.0m BBA certified – 04/4145 Excellent nail and tear strength 105N when tested to MOAT 27:5:4:1 Complies with BS5534 No n... Read More

Create a wishlist

"Great price and super fast delivery"

Juliette Savage

Description

Harcon Vapour Permeable Premier Underlay (50m x 1.5m)

  • Water Vapour Resistance 0.20 MNs/g
  • Superb water resistance 3.0m
  • BBA certified – 04/4145
  • Excellent nail and tear strength 105N when tested to MOAT 27:5:4:1
  • Complies with BS5534
  • No nuisance noise
  • Good UV stability
  • Easily identifiable bright blue colour
  • Lap lines printed for easy installation


MATERIAL

Harcon VPU has a 3 layer composite structure with the highly vapour permeable film bonded between two layers of nonwoven polypropylene.The top polypropylene layer provides high levels of water resistance while the bottom layer provides the strength for this flexible breather membrane which can be used in both unsupported and fully supported applications.

PRODUCT DETAILS

Thickness

  • 0.5mm

Weight

  • 0.125kg/m2

Width

  • 1500mm

Length

  • 50m

Roll Weight

  •  9.38kg

Colour

  • Bright Blue



PURPOSE

A vapour permeable membrane has 4 functions to perform.

1 Condensation Control
   It allows warm moist air generated in the building to pass freely through it, helping to prevent   condensation in the roof. As it is waterproof    the water drops created by the condensation which forms on the primary roof covering will simply roll down the Harcon VPU into the   gutter.

2 Secondary Roof Covering
   Stops any rain or snow which penetrates the roof tiles or slates getting into the building below.

3 Temporary waterproofing
   During construction and if the primary roof covering is damaged Harcon VPU will protect the structure below.

4 Wind
   Harcon VPU will prevent wind and any particles it may be carrying entering the roof void.



There are no product specifications to show.
