Fakro PTP-V/C O2/07 uPVC Conservation Window - 78cm x 140cm

Code:
PTP-V/C O2/07 OBSCURE
Brand:
Free UK Delivery

Fakro PTP-V/C O2 Centre Pivot Conservation Window with Double Glazed Obscure Glass - 78cm x 140cm This is a white uPVC double glazed window with laminated obscure glass and has a uValue of 1.3. The PTP-V/C O2 is a unique product that combines aluminium and PVC construc...Read More

Create a wishlist

"Good communication/great delivery…"

Skipwith Station Holidays

Description

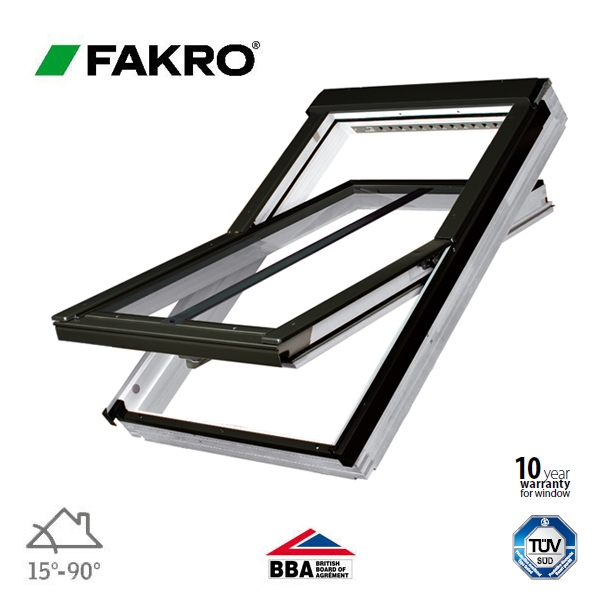

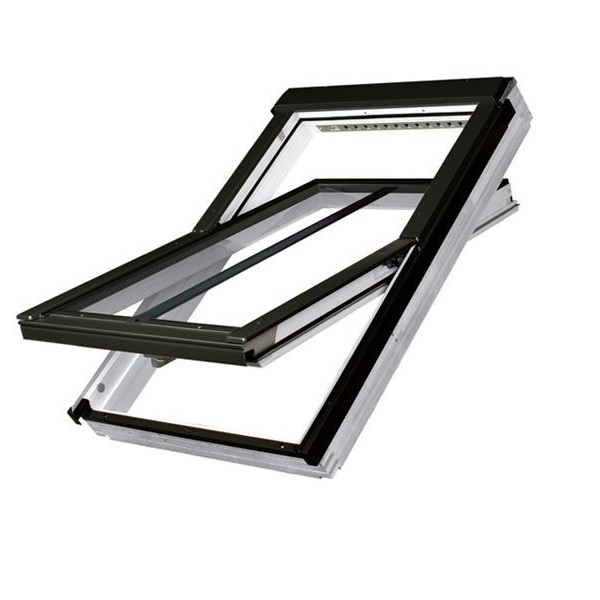

Fakro PTP-V/C O2 Centre Pivot Conservation Window with Double Glazed Obscure Glass - 78cm x 140cm

This is a white uPVC double glazed window with laminated obscure glass and has a uValue of 1.3.

The PTP-V/C O2 is a unique product that combines aluminium and PVC construction. It is designed for use in rooms with increased humidity such as bathrooms or kitchens. This window can also be used in rooms where the homeowner wants a white, easy to clean roof window.

The conservation window is designed for old, historic and traditional-looking buildings.
It's characteristic feature is the sash bar down the middle of the window, and black (similar to RAL 9005) metal covering on the window and flashing which is designed to suit traditional buildings.
Using the Fakro sash bar, the window retains the unique historic character of the building from the outside while creating a comfortable and modern interior.

The PTP window is a centre pivoting roof window, made of multi-chamber PVC-U profiles in white and reinforced with steel. This construction ensures very good stability and protects profiles against warping. The window also uses a new aluminium profile to hold down the glass. The profile matches perfectly with the window's exterior and ensures the product's durability.

The window is durable, resists corrosion and weathering, and requires minimum maintenance. The material the window is made of does not absorb any humidity and exhibits a high resistance to acids and alkaloids.

Properties
Window uValue : 1.3 W/m2K.
Glazing uValue : 1.1 W/m2K.
Inert gas filled panes : argon.
Handle : elegant.


Features
Modern frame and sash.
Innovative hardware.
New handle.
New tightening system.

Obscure Glass
One side of the Fakro PTP-V/C O2 window is smooth, while the other side has an embossed pattern, making it an ideal option for bathrooms. The patterned surface is on the outside of the window with the smooth glass on the inside for ease of cleaning. Obscure glass is toughened and is used on the outer pane of the double-glazing. The inside pane has a low emission coating.

Seals:
PTP roof window has a triple tightening system; clinging seal, border seal and also a seal in the profiles covering the frame sides.

Handle:
New, white handle located at the bottom part of the sash allows easy operation of the window and also contains a two step ventilation system.

Aluminium profiles:
Externally the PTP window is covered with aluminium profiles, both sides covered with polyester coating, making them more durable and weather resistant. Trapezium shaped profiles are made of aluminium 1.0 mm thick, which results in higher durability of the aluminium elements, and better resistance to mechanical or transportation damage. Externally the PTP window does not differ visually from wooden windows.

Flashings for PTP-V/C O2/07 78cm x 140cm
Slate
Tile 45mm
Tile 90mm
Plain Tile
Recessed Slate

Dimensions

Size 78cm x 140cm Width 780mm

Details

Code PTP Height 1400mm Type Centre-pivot Finish White uPVC
Operation Manual Glazing O2 Obscure Double Glazing Pitch 15 - 90 degrees U Value 1.3 Flashing Type Conservation Flashing
