Easy-trim Roto Pantile & Profiled Tile Flashing

Code:
ETR-ZIE

This item is out of stock and not available to purchase.

The Easy-trimroto ZIE Flashings will create a weathertight finish for all Easy-trim Roto roof windows. With thermal insulation and waterproofing at the core of their design, long term weather protection is guaranteed. Window flashings are essential for the correct installatio...Read More

Create a wishlist

"Reclaimed tiles for a roof repair"

Neil Howard

Description

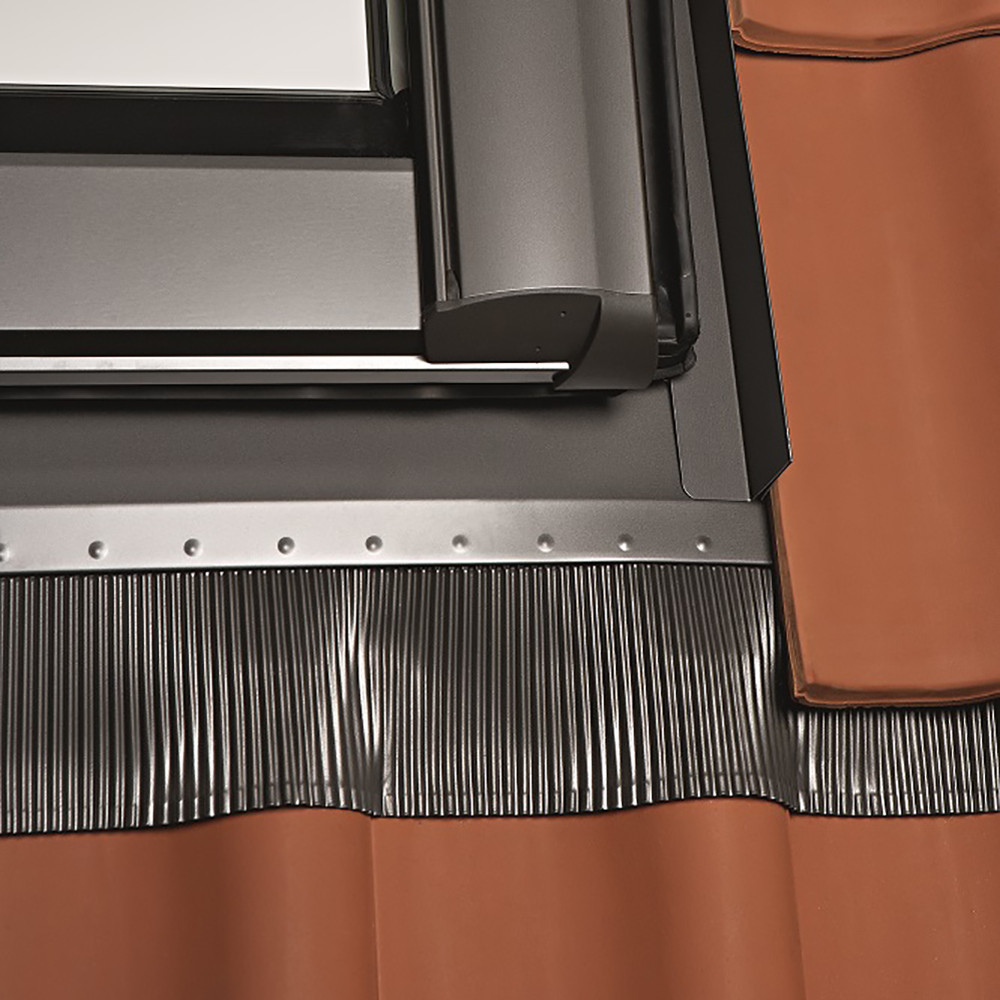

The Easy-trimroto ZIE Flashings will create a weathertight finish for all Easy-trim Roto roof windows. With thermal insulation and waterproofing at the core of their design, long term weather protection is guaranteed.

Window flashings are essential for the correct installation of roof windows and the Easy-trim Roto’s flashings have been designed to sit flush around the window to create a weather-proof seal. They integrate with your roofing material to allow water to flow past the window and into the guttering. Flashings create a sleek and modern finish.

Easy-trim Roto offer a wide range of flashings to suit any roofing material. ZIE flashings have been designed for Pantiles or Profiled tiles. It is important to note that this product is not compatible with interlocking slate.

ZIE flashings are for installing one window into a roofing material with a height that ranges from 15mm to 45mm. They are for pitches between 15° to 90°.

Please note, this flashing is not suitable for the Easy-trim Roto ETR7 5 T AL IC and ETR8 8C T AL IC window.

This kit includes:

  • EDR Rx O + U Top & Bottom single flashing
  • Water drain channel (Except for metal roofing)
  • EDR Rx SEB UBottom flashing side-parts
  • Mounting clips

Features & Benefits

  • Long-term protection from weather
  • Compatible with Pantiles & Profiled tiles
  • For profiles up to between 15mm to 45mm
  • For pitches between 15° to 90°

Product Specification

Dimensions:

540mm x 780mm
540mm x 980mm
540mm x 1180mm
650mm x 1180mm
740mm x 980mm
740mm x 1180mm
740mm x 1400mm
740mm x 1600mm
940mm x 1400mm
1140mm x 980mm
1140mm x 1180mm
1340mm x 980mm
1340mm x 1400mm

Material: Aluminium

Suitable for: Pantiles & Profiled tiles

Maximum thickness of roof material: 45mm

Roof Pitch: 15° to 90°

Dimensions

Length 780mm Size 540mm x 780mm
540mm x 980mm
540mm x 1180mm
650mm x 1180mm
740mm x 980mm
740mm x 1180mm
740mm x 1400mm
740mm x 1600mm
940mm x 1400mm
1140mm x 980mm
1140mm x 1180mm
1340mm x 980mm
1340mm x 1400mm
Width 1140mm
1340mm
540mm
650mm
740mm
940mm

Details

Height 780mm
980mm
1180mm
1400mm
1600mm
Thickness Up to 45mm Roof Covering Universal Tile Flashing Type Standard Flashing
