FAKRO B1/2 Vertical Twin Conservation Flashing for Tiled Roofs

Code:
FAKRO-B1-2-CONV-VERTICAL-TWIN-TILED
Brand:

The B1/2 vertical twin flashing for conservation windows has been manufactured from aluminium, with a ridged profile to provide malleability around the roof tiles and roof window. The flashing is then coated with polyester to add durability, before being finished in black (RAL...Read More

Create a wishlist

"Speedy delivery"

Mags from Weardale

Description

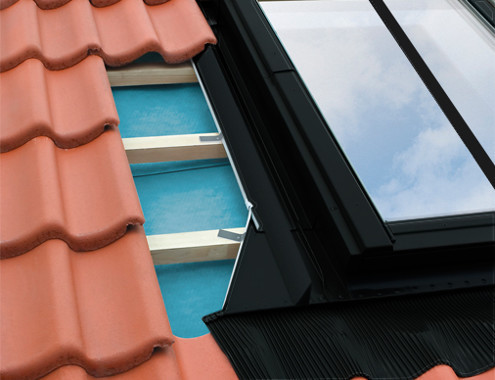

The B1/2 vertical twin flashing for conservation windows has been manufactured from aluminium, with a ridged profile to provide malleability around the roof tiles and roof window. The flashing is then coated with polyester to add durability, before being finished in black (RAL9005), creating a subtle finish which tends to fit in with most roof colourings.

What are FAKRO conservation windows?

FAKRO conservation windows have been manufactured by FAKRO specifically for buildings and homes that are situated in conservation areas. The FAKRO conservation windows are designed in a way that will meet a number of planning restrictions in situations where regular FAKRO roof windows would not pass the planning stages.

FAKRO conservation windows are designed with a single vertical black bar down the middle of the window, and black cladding, which not only makes them more suitable for traditional construction, but also helps them to blend into the roof structure more, which helps to retain the character of older buildings on the exterior.

Why do you need FAKRO vertical twin flashings?

Flashings are an integral part of the installation of a FAKRO window, and although often disregarded, are incredibly important.

Flashings are used to create a tight connection between the roof window and the roof tiles, ensuring that the window is fitted accurately, creating a neat finish. The twin flashings tend to allow a distance of around 10cm between each window.

However, the FAKRO flashing is not just used for visual effect, the flashing is also used to protect the windows from weather conditions, creating efficient rainwater drainage with the ridged design, and preventing water entry at the points where the windows connect to the roof.

By installing FAKRO flashings on your tiled roof, you are eliminating the potential for water to penetrate the roof, which prevents damp, condensation and structural issues from occurring over time. FAKRO flashings also help to increase the lifespan of the roof and the conservation roof windows.

Dimensions

Size 78cm x 118cm
55cm x 78cm
55cm x 98cm
55cm x 118cm
66cm x 98cm
66cm x 118cm
78cm x 98cm
78cm x 140cm
94cm x 118cm
94cm x 140cm
94cm x 160cm
114cm x 118cm
114cm x 140cm
134cm x 98cm
Width 1140mm
550mm
660mm
780mm
940mm
980mm

Details

Code EZV Height 780mm
980mm
1180mm
1400mm
1600mm
Finish Matt Pitch 15 - 90 degrees
Thickness 45mm Roof Covering Interlocking Tile Flashing Type Conservation Flashing Tile Type Interlocking Tiles up to 45mm Profile
Interlocking Tiles up to 90mm Profile
Plain Tiles up to 16mm Thick
