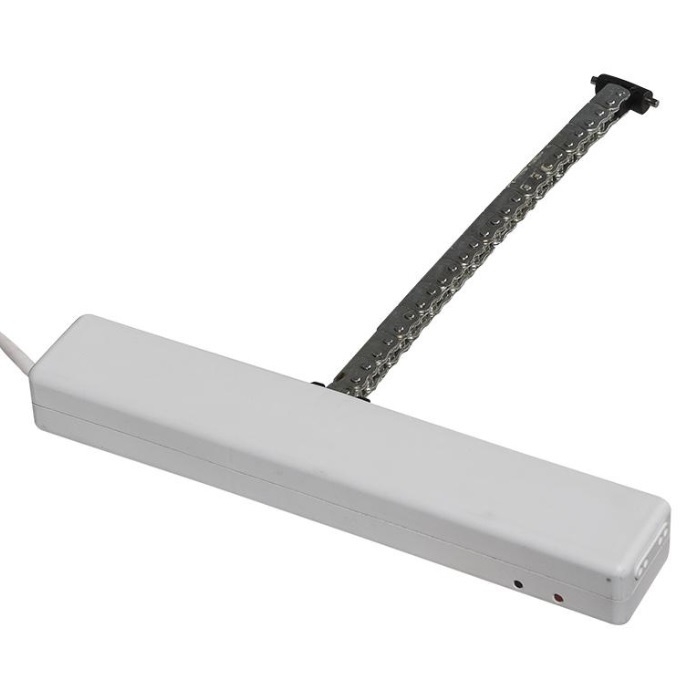

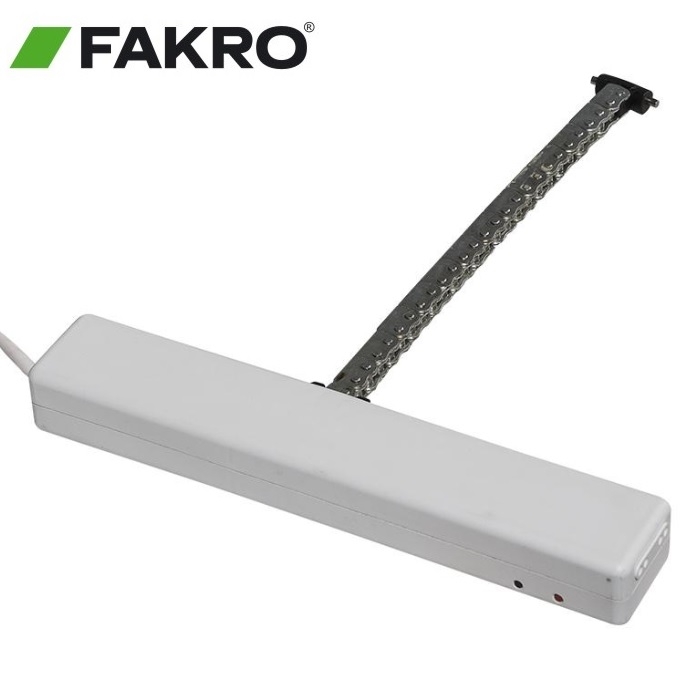

Fakro ZWS12 Z-Wave Electrical Conversion Kit
The ZWS12 chain motors thanks to their small dimensions and suitable force output are ideal for roof window operating, being fully compatible with the Z-Wave system. The motor can be applied in both the centre pivot and top hung and pivot roof windows as well as windows of non-standard dimensions. The maximum chain reach is 24cm.
Technical
Chain Reach : 240mm
Power Voltage : 15V DC
Rated Current : 0.36A
Power Output : 9W
Chain Pushing Force : 200N
Chain Stroke Rate : 4.25mm/s
Working Temperature : (-9°C) to (+50°C)
Power Cable : 2 x 0.75mm2 (0.4mb)
Dimensions (mm) : 262 x 47 x 3355
There are no product specifications to show.
Question:
Does this unit fit a fakro center pivot roof window dimensions aprox 1 meter x 1 meter ? and also does the motor need anything else e.g. a voltage converter
Answer:
We would need to know the code of your Fakro window, if you look along the top of the sash there will be an info plate with this info. If you email this to sales@roofingsuperstore.co.uk we can check with Fakro for you what item would be correct for you.
