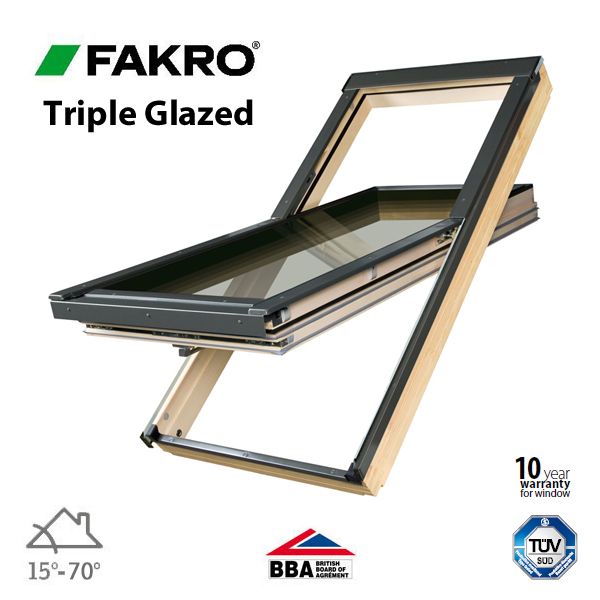

This is a triple glazed centre pivot manual window and has a uValue of 0.81 when installed with a EHV-AT Thermo flashing kit. Triple Glazed Centre Pivot Window. Centre Pivot hinge is located slightly above centre axis. BBA Approved. “topSafe” security and safety offering rein...Read More
This is a triple glazed centre pivot manual window and has a uValue of 0.81 when installed with a EHV-AT Thermo flashing kit.

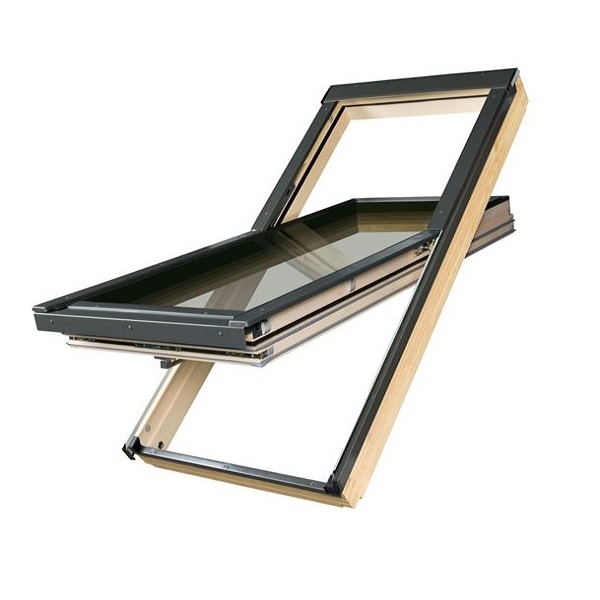

Triple Glazed Centre Pivot Window. Centre Pivot hinge is located slightly above centre axis. BBA Approved. “topSafe” security and safety offering reinforced hinge and keep together with a steel slat to the lower part of the sash to achieve at least class III safety as per EN13049. External aluminium colour reference RAL7022. Natural wood frame. Internal finish 2 layers of clear lacquer. Bottom placed handle.
Glass construction 6-18-4-18-6.2mm with 38dB reduction and external tempered glass internal low-E silver oxide coated producing a U-Value of 0.81W/m²K (glass U-Value 0.5W/m²K). Roof 15 to 70° pitch.
The glazing unit is set in a specially designed sash frame. It has wider wooden profiles, compared with a standard window. This design minimizes the phenomenon of thermal bridges and provides better insulation of the window. FTT Thermo U6 window with a heat transfer coefficient of Uw = 0.81 W/m2K. Windows opened via pivot with hinges positioned above the window mid-height, thanks to which even a tall person can comfortably stand upright by the open window.
Window uValue : 0.8 W/m2K.
Glazing uValue : 0.5 W/m2K.
Acoustic insulation Rw : 38dB.
Inert gas filled panes : krypton.
Glazing : 6HT-18-4H-18-33.2T.
Handle : elegant.
Flashings for FTT
Slate
Tile 45mm
Tile 90mm
Plain Tile
Recessed Slate
