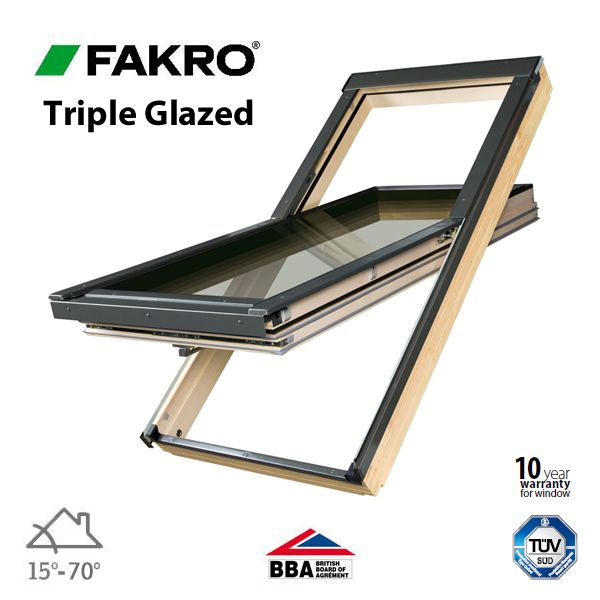

Fakro FTT U6/10 Triple Glazed Window Pine Centre Pivot - 114 x 118cm

Product Code:
FTT U6/10
Free UK Delivery
Est. Delivery: 15-20 Working Days
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlandsand Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

£731.00 Incl. VAT
£609.17 Ex. VAT
Oops! Please select from the options
  • 4+
    £683.00 Incl. VAT
    £569.17 Ex. VAT
  • 7+
    £655.00 Incl. VAT
    £545.83 Ex. VAT

Product Description

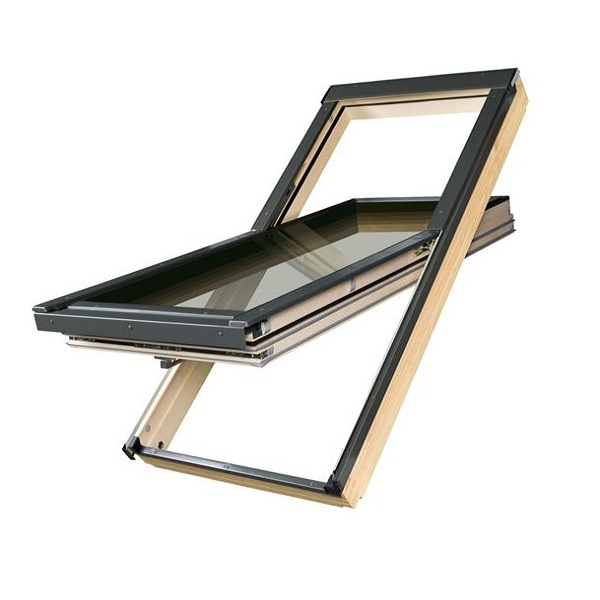

This is a triple glazed centre pivot manual window and has a uValue of 0.81 when installed with a EHV-AT Thermo flashing kit.

Triple Glazed Centre Pivot Window. Centre Pivot hinge is located slightly above centre axis. BBA Approved. “topSafe” security and safety offering reinforced hinge and keep together with a steel slat to the lower part of the sash to achieve at least class III safety as per EN13049. External aluminium colour reference RAL7022. Natural wood frame. Internal finish 2 layers of clear lacquer. Bottom placed handle.

Glass construction 6-18-4-18-6.2mm with 38dB reduction and external tempered glass internal low-E silver oxide coated producing a U-Value of 0.81W/m²K (glass U-Value 0.5W/m²K). Roof 15 to 70° pitch.

The glazing unit is set in a specially designed sash frame. It has wider wooden profiles, compared with a standard window. This design minimizes the phenomenon of thermal bridges and provides better insulation of the window. FTT Thermo U6 window with a heat transfer coefficient of Uw = 0.81 W/m2K. Windows opened via pivot with hinges positioned above the window mid-height, thanks to which even a tall person can comfortably stand upright by the open window.


Window uValue : 0.8 W/m2K.
Glazing uValue : 0.5 W/m2K.
Acoustic insulation Rw : 38dB.
Inert gas filled panes : krypton.
Glazing : 6HT-18-4H-18-33.2T.
Handle : elegant.


  • Special roof windows intended for energy-efficient and passive construction.
  • Easy washing the external glass and fastening awning blind thanks to a special bolt which blocks the sash when rotated through 180°.
  • Increased burglary-resistance – topSafe system.
  • Special window structure utilising wider sash frames and quadruple sealing system.

Flashings for FTT
Tile 45mm
Tile 90mm
Plain Tile
Recessed Slate


Width 1140mm


Size 114cm x 118cm Height 1180mm Type Centre-pivot Finish Pine Operation Manual
Glazing U6 Highly Energy Efficient Triple Glazing Pitch 15 - 70 degrees U Value 0.81
