This is a double glazed high pivot manual window with standard toughened glass and has a uValue of 1.3. The FYP - V window is opened in a pivot mode but its axis of rotation is situated above the center of the window, thanks to which even a tall person can approach the window... Read More

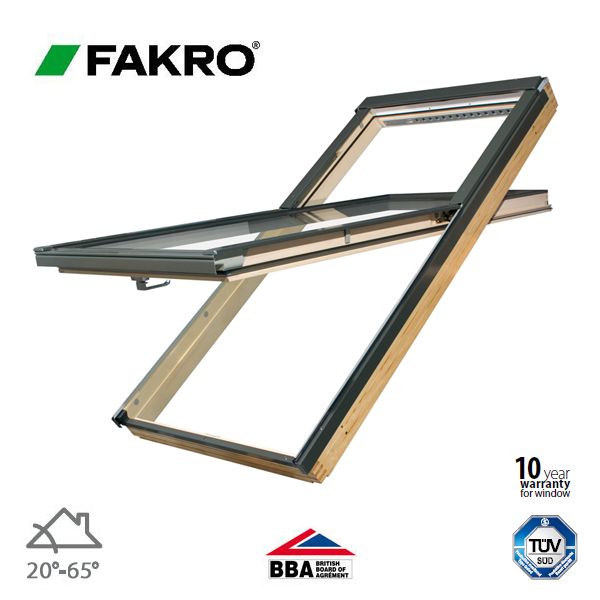

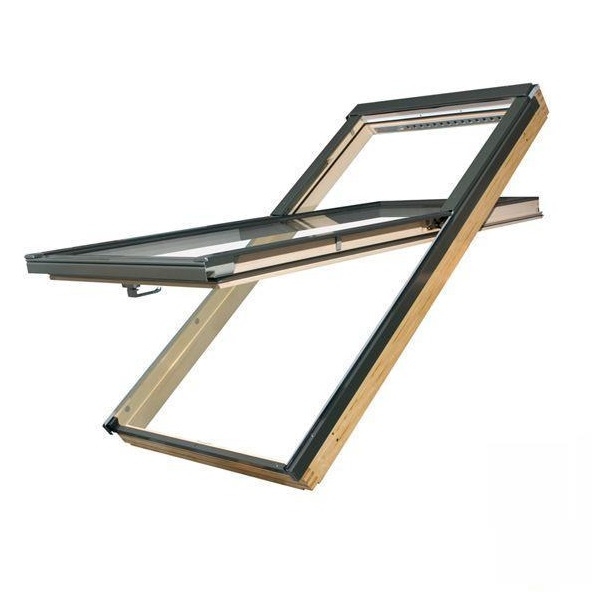

This is a double glazed high pivot manual window with standard toughened glass and has a uValue of 1.3.
The FYP - V window is opened in a pivot mode but its axis of rotation is situated above the center of the window, thanks to which even a tall person can approach the window's edge without any difficulties. The lower part of the sash fulfills the role of a top hung window and the upper one acts as an additional source of daylight.
It is the only window on the markets which after installation in the roofs with pitches between 39° and 43° satisfies the conditions of DIN 5034-1* standard, according to which the lower edge of the window should be situated 95cm and the upper one minimum 220cm above the floor level.
The sash when rotated through 0°- 45° is held up by an innovatory support mechanism which allows leaving the window open in any position within this range. Equipped with an automatic air inlet V40P supplying the optimum amount of fresh air into the room. Operated by means of a handle situated in the lower part of the sash providing a two-step micro-opening facility. The sash can be rotated through 160° and blocked for washing with the use of a bolt.
Increased resistance to burglary - TopSafe system.
Installation range 20 to 65°.
Window uValue : 1.3 W/m2K.
Glazing uValue : 1.1 W/m2K.
Acoustic insulation Rw : 32dB.
Inert gas filled panes : argon.
Air flow : V40P.
Handle : elegant.
Flashings for FYP
Slate
Tile 45mm
Tile 90mm
Plain Tile
Conservation Window
This window is also avaliable as a conservation window.
