Hambleside Danelaw Underlay Lap Ventilator in Black - 2,280mm2 Airflow

Product Code:
HD ULV
Est. Delivery: 1-2 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

£1.20 Incl. VAT
Oops! Please select from the options

Description

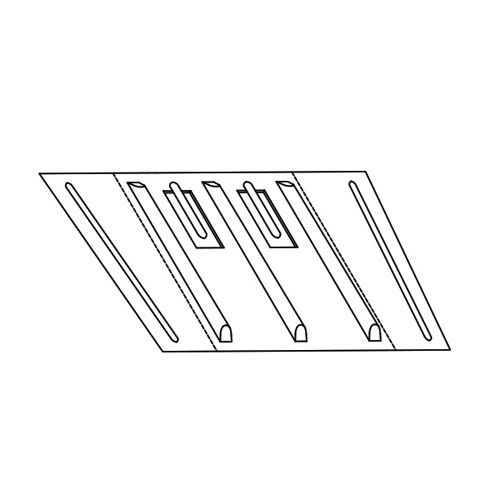

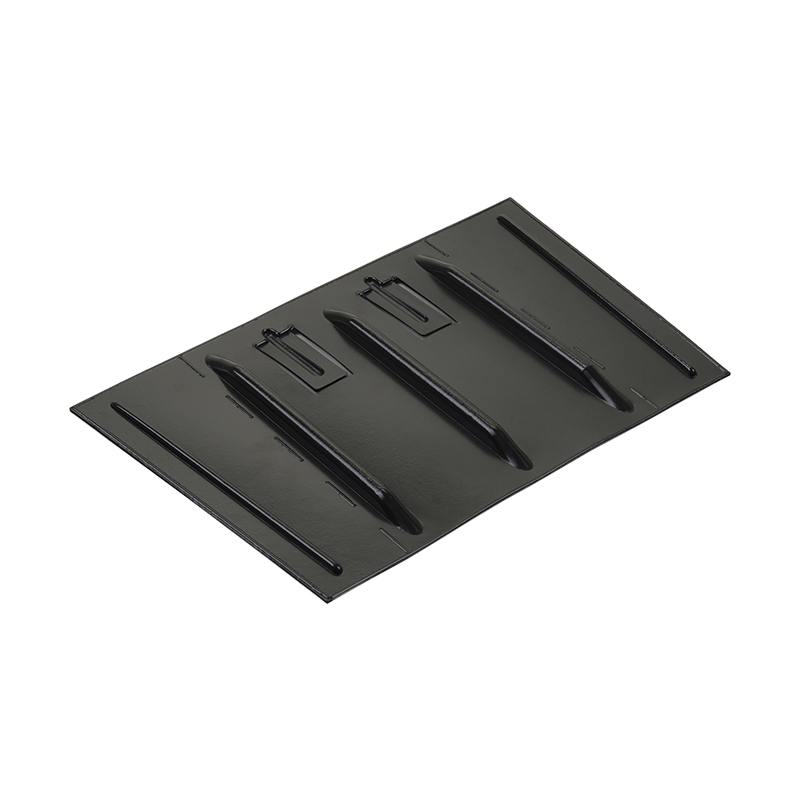

The Hambleside Danelaw underlay lap vent has a shallow and tapered design to fit between the overlaps in the roofing underlay below the tiles or slates to introduce ventilation openings.

It is retrofitted to reduce condensation in the roof space. Simple for anyone to fit from inside the loft by simply inserting between the overlaps of the underlay.

The underlay lap ventilator is designed for simple professional or DIY installation from the inside of cold pitched roofs where condensation is a problem. It is designed to fit between the overlaps in the roofing underlay below the tiles or slates to introduce ventilation openings where there is no proper provision for roof space ventilation or existing ventilation air paths have been blocked, particularly when the loft insulation has been upgraded. The shallow and tapered design of the panel suits all commonly encountered rafter spacings and allows for easier fitting between the roofing felt or underlay where the overlaps are tight.



Properties

Airflow : 2,280mm2 airflow per vent.
Material : PVC.
Colour : black.

Application

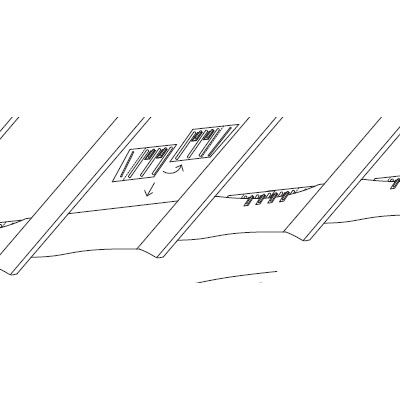

• It is recommended that one ventilator panel is fitted between each rafter in the lowest underlay lap above the level of the insulation layer in the loft on both sides of the roof (see product brochure fig. 1).

• For rafter centres of 600mm and above, the ventilation area provided can be increased by the installation of two panels between each rafter. The two panels should be trimmed along the dotted line and overlapped by interlocking the first spacing rib (see product brochure fig. 2).

• In cases of severe condensation or for large roofs where the distance between eaves exceeds 10m (30ft), or the roof pitch is steeper than 35o, then it is recommended that an additional row of ventilation panels be fitted into the highest line of roofing felt or underlay lap closest to the ridge on both sides of the roof.

• The panels should be fully inserted with the ribs uppermost and the two retaining tabs locating over the exposed edge of the roofing underlay.

• After installation, the condensation levels should be monitored and if found to persist, then it is recommended that an additional row of ventilation panels be fitted between the next lowest roofing underlay overlap on both sides of the roof.

Ventilation area per linear metre

400mm rafter centres : 5700mm2 minimum.
450mm rafter centres : 5060mm2 minimum.
600mm single panel : 3810mm2 minimum.
600mm double panel : 6270mm2 minimum.

There are no product specifications to show.

Questions & Answers

Question:

I’ve bought the other type but no way will they slide behind the felt. I don’t want to buy these if they won’t slide in place. It is very tight so I need a thinner gap. What gap do these ones have? How many mm?

Answer:

These will not fit if the felt is too tight - you need more room than the smaller units we sell

Question:

What size is this product. I’m sure you have it somewhere but i cant find it.

Answer:

The top width is 350mm and the bottom width is 310mm

The sides are 225mm

Question:

How many of these felt lap vents are in a box Or are they £4.20 each ?

Answer:

This is the price per unit, but if you order 50 or more the price drops down.
