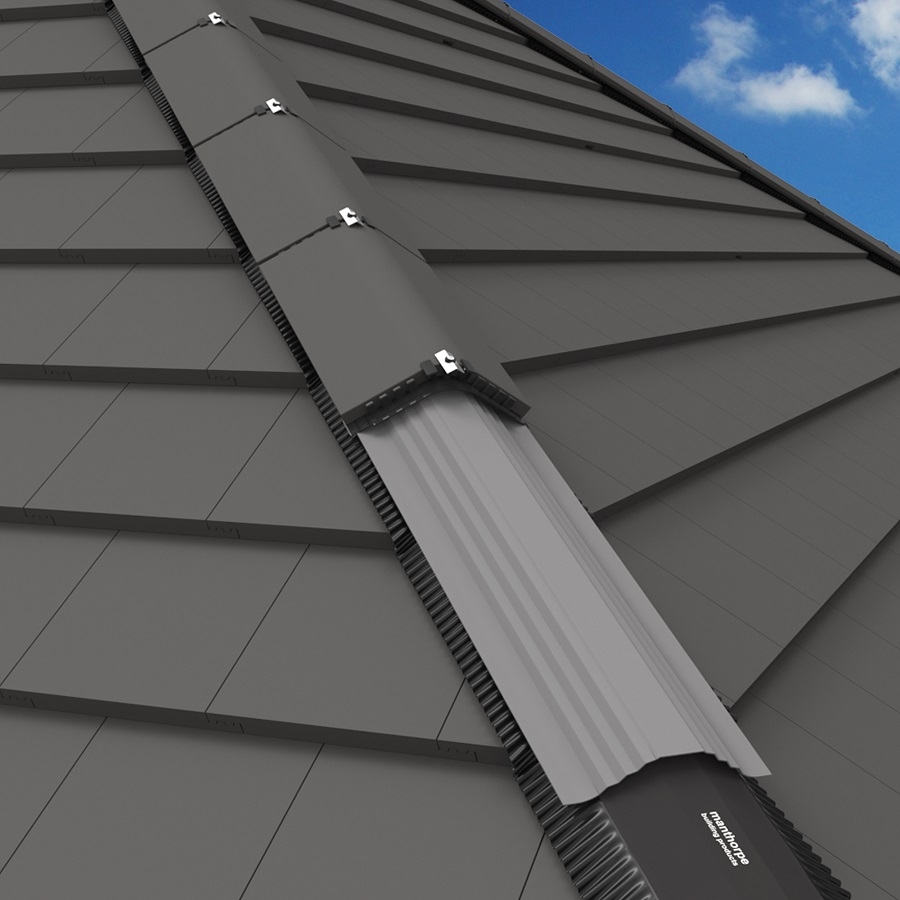

The Manthorpe GDRH-CL Roll-Out Clay Hip is a mechanically fitted system which securely fixes the ridge tiles on to a roof.

The GDRH-CL system does not require mortar fixing, making the installation process quick, easy, and clean. As there is no need for mortar it is also possible to install during frosts and other adverse weather conditions.

The system is designed to suit traditionally deeper clay ridge tiles (both round and angled), but is also compatible with concrete ridge tiles and can be fitted onto most roof coverings, including profiled tiles. A single box of the dry hip system provides all of the components required for a hip run approximately 6 metres in length (excluding the hip tiles).

Pack Contents

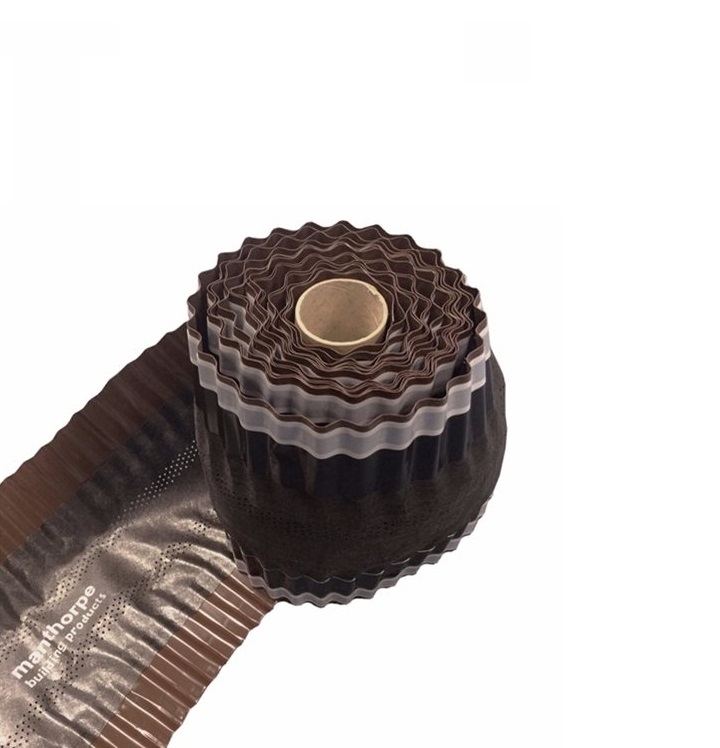

1 x 6m Ventilated Dry Fix Ridge Roll.

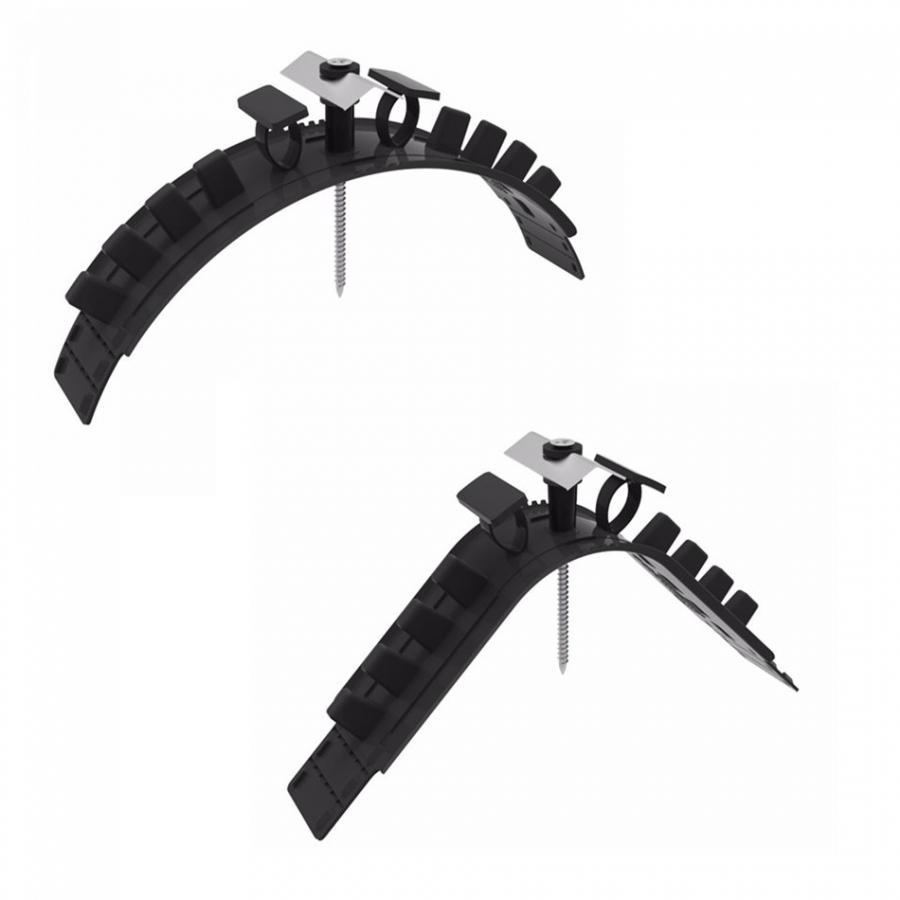

13 x Clay Tile Unions (including mechanical fixings)

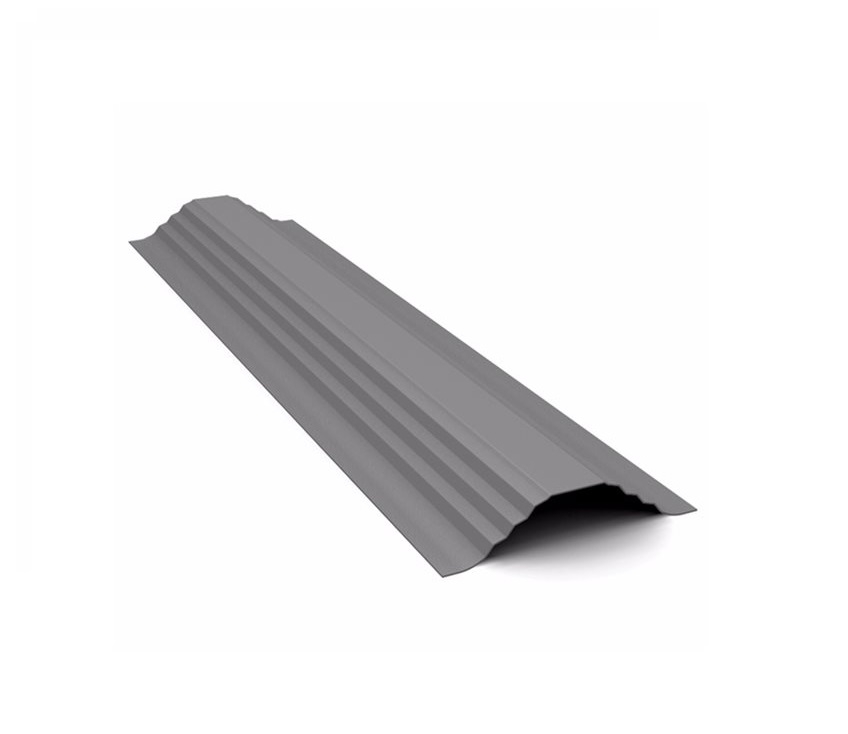

6 x 1.1m Hip Support Tray.

Features and Benefits

• A mechanically fixed system for securing clay hip tiles without the need for mortar and pointing.
• The hip support tray levels out the run of the hip to provide a level mounting for the hip tiles.
• One box provides all of the components required for a 6 metre hip run with 450mm long tiles (excludes tiles).
• Additional unions available for use with shorter ridge tiles.
• Compatible with most makes of clay and concrete hip tiles; both round and angled.
• Can be fitted to the hip of most roof pitches (pitches must be within tile manufacturers recommendations for the tile type being used)
• The system can be fitted onto most slate, clay and concrete roof coverings, including profiled tiles.
• Quick and easy to fix with no special tool requirements.
• Available in 2 different colours (Black and Dark Brown)
• Hip ends can be finished off with Manthorpe’s unique hip end closer.
