Mayan RealRidge Natural Slate Overlap Graphite Block End - 90 Degree

Code:
DOVLBLO090500B
Free UK Delivery

Featuring full cover 185mm extra-wide wings and 5mm built-in continuous vent, the Mayan RealRidge Natural Slate Overlap Graphite Block End Ridge creates a rugged aesthetic, ideal for properties with a traditional style. The variable overlap allows for course alignment and equi... Read More

Create a wishlist

"Extremely helpful staff"

Tore H

Description

Featuring full cover 185mm extra-wide wings and 5mm built-in continuous vent, the Mayan RealRidge Natural Slate Overlap Graphite Block End Ridge creates a rugged aesthetic, ideal for properties with a traditional style. The variable overlap allows for course alignment and equidistant setting out.

Roll-out ridge systems are not required, and fixings are supplied as standard to ensure quick and straightforward installation.

Features & Benefits: Mayan RealRidge Natural Slate Overlap Graphite Block End - 90 Degree

  • Suitable for roof pitches of 37.5º - 45º
  • Creates a rugged aesthetic, ideal for traditional properties
  • Made from premium quality 6mm thick grey roofing slate
  • Full cover 185mm extra-wide wings and 5mm built-in continuous vent
  • Considerable labour savings with the RapidFix installation
  • Fortuitous ridge ventilation equivalent to a roll-out ridge system
  • Variable overlap allows for course alignment and equidistant setting out
  • Chemically and mechanically bonded to a weatherproof GRP liner
  • Fixings included

Fully compliant with BS 5534 and BS 8612, this block end ridge tile is made using premium quality 6mm thick grey roofing slate that is chemically and mechanically bonded to a proven long-life weatherproof glass-reinforced polyester (GRP) liner.

This 90º Overlapping RealRidge Classic Natural Slate Graphite Block End Ridge is suitable for roof pitches of 37.5º to 45º. The minimum overlap is 125mm above 35º roof pitch (375mm gauge), while the minimum overlap is 150mm below 35º roof pitch (350mm gauge).

Standards & Certification

  • British Standard: BS 5534 and BS 8612

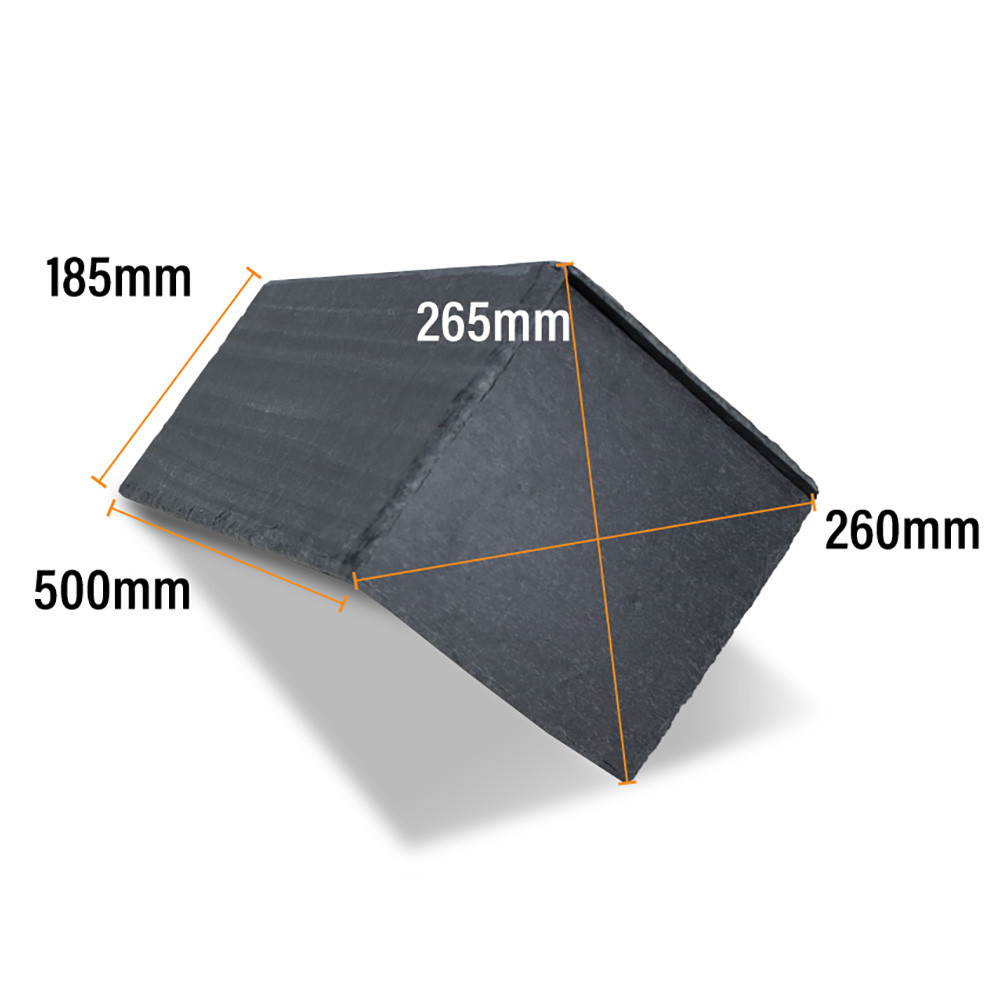

Dimensions

Length
265mm
Depth
500mm
Width
260mm

Details

Type
Block End
Ridge
Colour
Grey
Material
Natural Slate
Slate Origin
Spanish
Minimum Pitch
37.5 Degrees
Maximum Pitch
45 Degrees
Angle
90 Degrees
