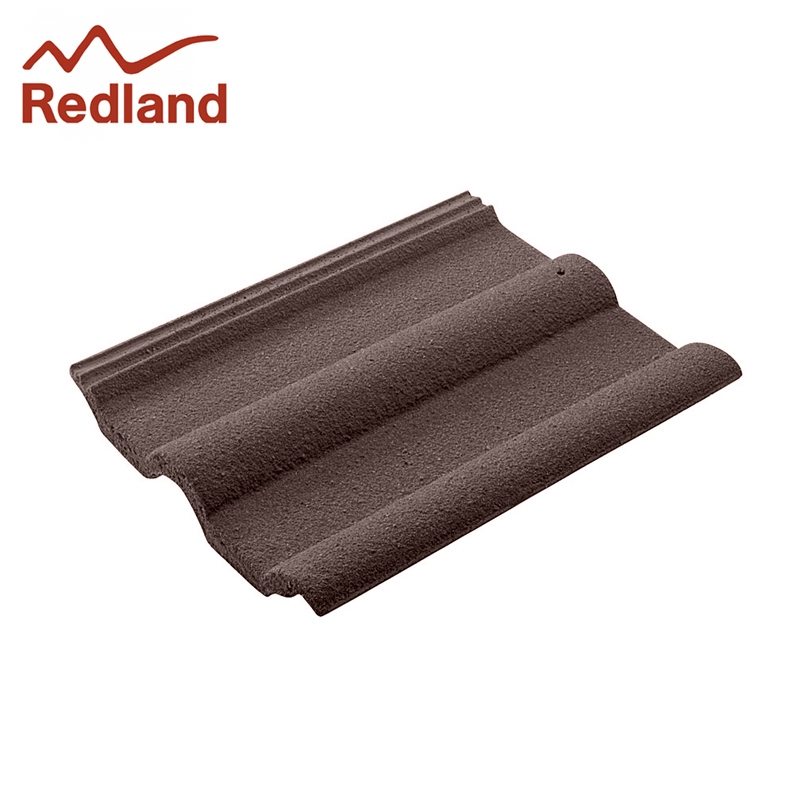

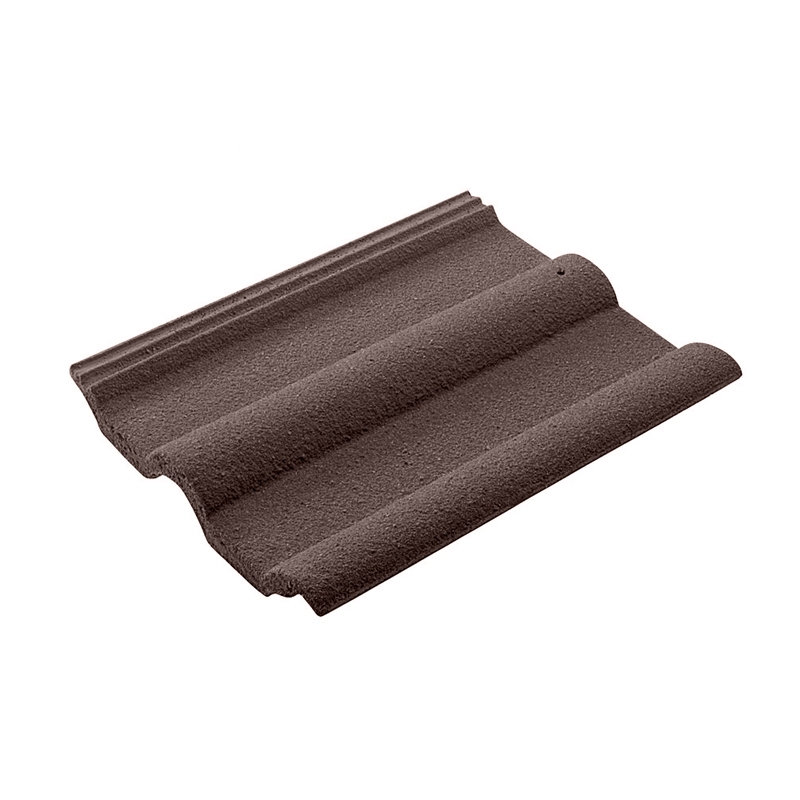

Redland 50 Double Roman Concrete Interlocking Roof Tile Brown - Pallet of 252

Code:
10001711
Brand:

A classic interlocking concrete tile with a distinctive Roman profile, boasting a gentle roll and subtle pans. It is available in a wide range of colours, including the new Rustic Red, to blend harmoniously with any environment. Once installed, these tiles create the look of ...Read More

Create a wishlist

"Couldn’t pick a fault in the proce…"

andyparkins

Description

A classic interlocking concrete tile with a distinctive Roman profile, boasting a gentle roll and subtle pans. It is available in a wide range of colours, including the new Rustic Red, to blend harmoniously with any environment.

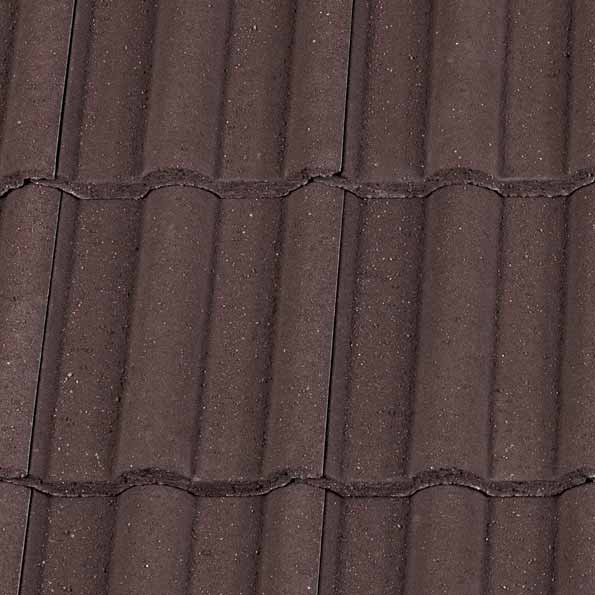

Once installed, these tiles create the look of a classic, clay double roman roof with the added advantage of being compatible with a wide range of fittings and accessories.

Properties

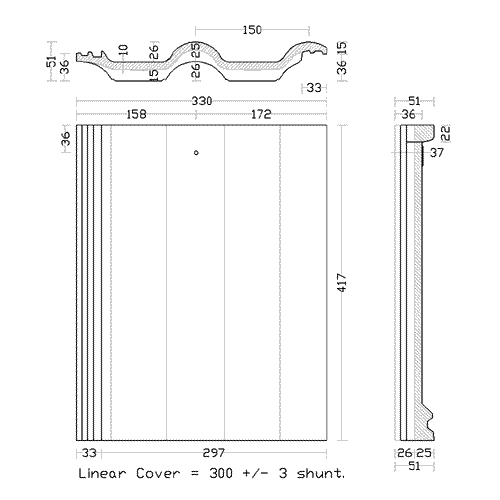

Size: 418mm x 330mm.
Minimum pitch:
Through coloured.
17.5° at 100mm headlap.
22.5° at 75mm headlap.
Granular.
22.5° at 100mm headlap.
30° at 75mm headlap.
Maximum pitch: 90° - subject to fixing specification.
Maximum headlap: 125mm.
Minimum gauge: 293mm.
Maximum gauge: 318mm below 22.5°.
343mm at 22.5° and over.
Tile thickness: 25mm.
Coverage: 10.5 tiles/m2 at 318mm gauge.
9.7 tiles/m2 at 343mm gauge.
Weight: 4.2 tonnes/1000.
Batten size: 38mm x 25mm - rafter centres up to 450mm.
50mm x 25mm - rafter centres up to 600mm.
Battens required: 3.15m/m2 at 318mm gauge.
2.92m/m2 at 343mm gauge.
Nail size: 60mm x 3.35mm.
Tile finish: granular.
Tile profile: profiled.

BBA certified.
50 Double Roman Tiles conform to BS EN 490: 2011 Concrete roofing tiles and fittings for roof covering and wall cladding - Product Specifications.

Details

Type Tile Finish Granulated Colour Brown Material Concrete
Profile 50 Double Roman
