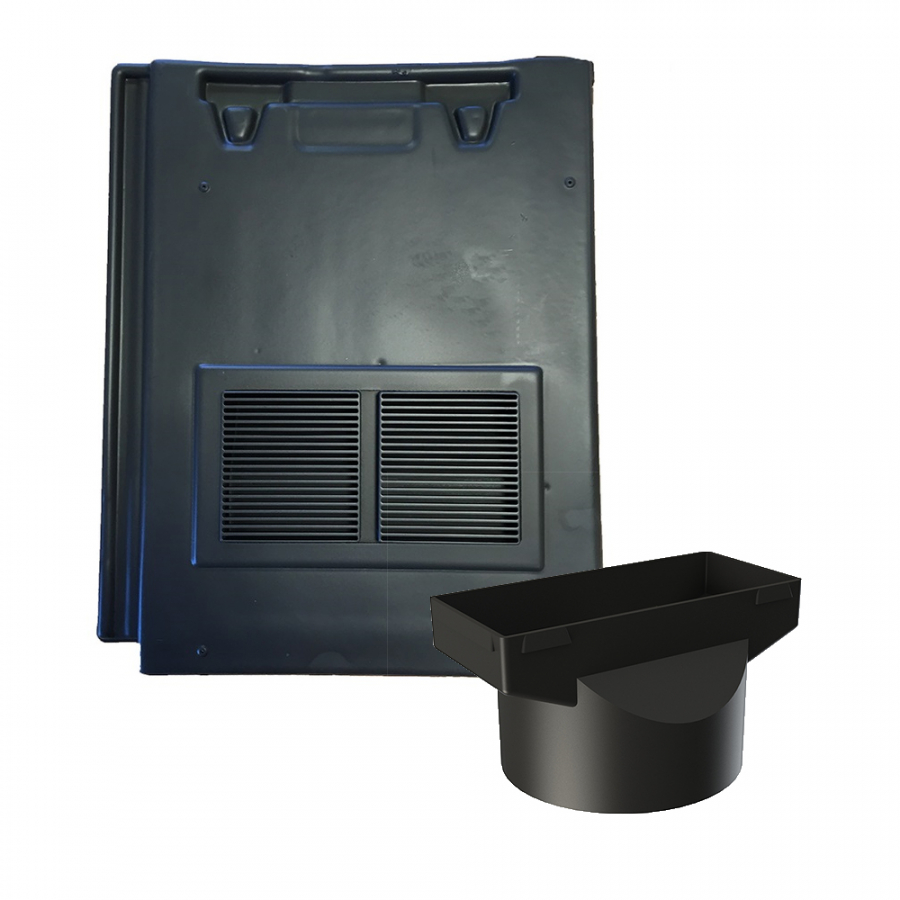

Sandtoft New Cassius Concealed Tile Vent with Pipe Adaptor - Antique Slate

Code:
2453586868
Brand:

This item is out of stock and not available to purchase.

The most efficient and effective method of controlling condensation is to provide natural roof space ventilation and to mechanically extract high levels of water vapour at the source. Concealed ventilators are designed to maximise the aesthetic features of the roof by being vi... Read More

Create a wishlist

"Even better than expected and deli…"

Alison Bushell

Description

The most efficient and effective method of controlling condensation is to provide natural roof space ventilation and to mechanically extract high levels of water vapour at the source.

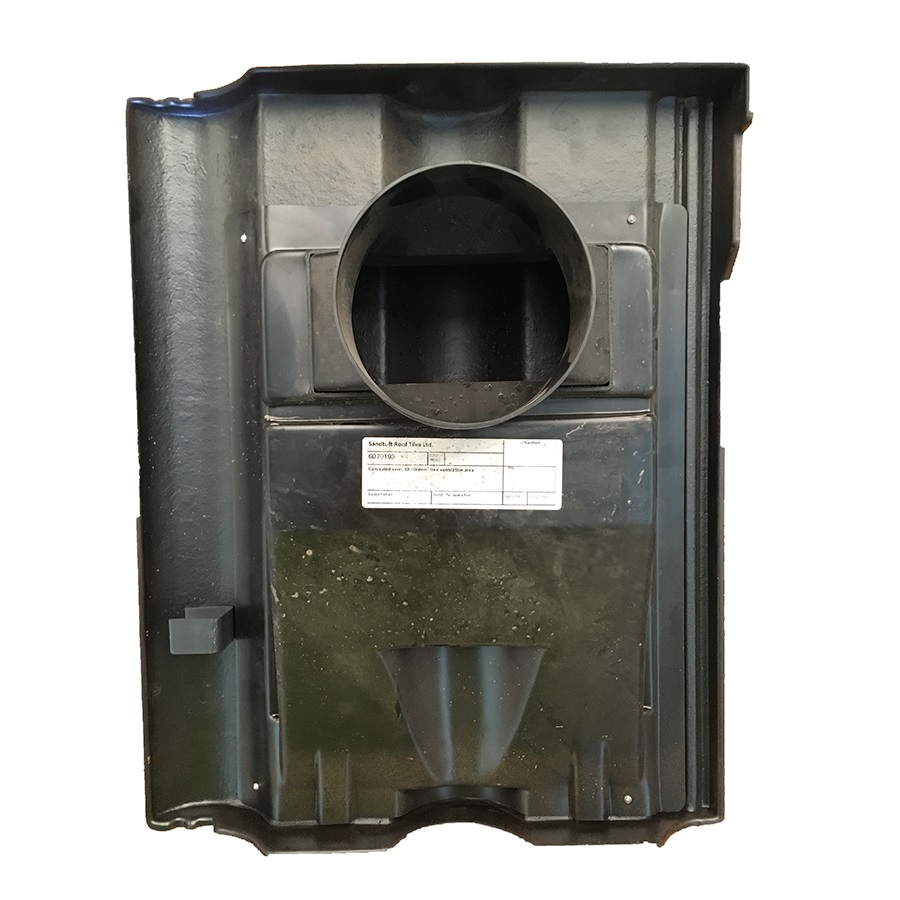

Concealed ventilators are designed to maximise the aesthetic features of the roof by being virtually unseen once installed. Concealed Tile Vents can be used for connection to soil or mechanical extraction pipes through the use of the included Pipe Adaptor, and Flexible Pipe (sold separately).

Specifications

Free vent area: 10,000mm2
Spacing at low level (10,000 mm2 per m): 1m Intervals
Spacing at high level (5,000 mm2 per m): 2m Intervals
Minimum roof pitch: 22.5 degrees

Dimensions

Size
418mm x 335mm

Details

Type
Adaptor
Finish
Smooth
Colour
Grey
Material
Clay
Profile
New Cassius
Minimum Pitch
22.5 Degrees
