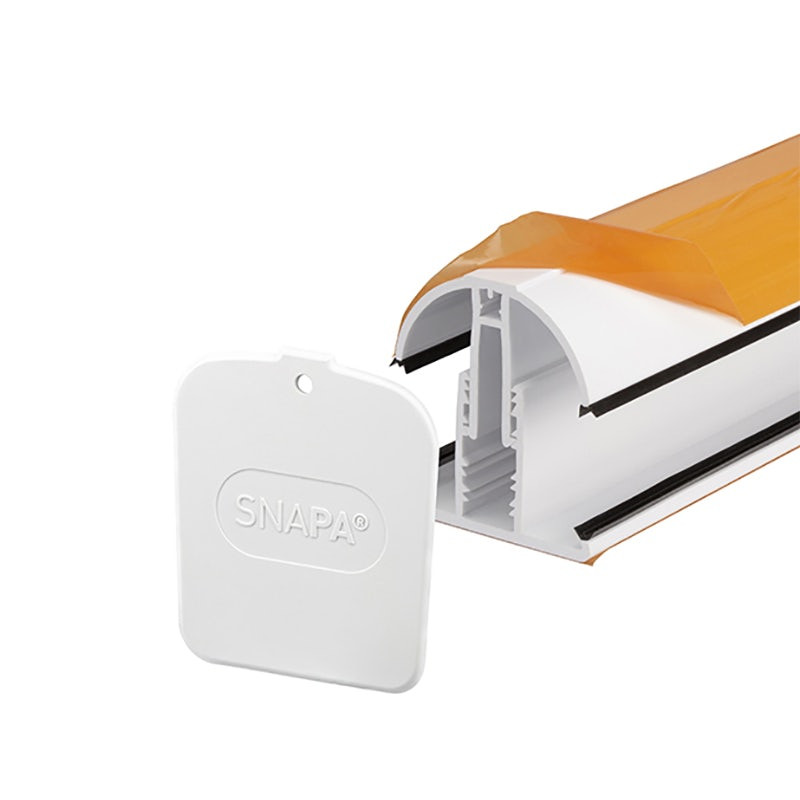

SNAPA Snap-Fix PVC Glazing Bar & End Cap in White
Description
The SNAPA® Rafter Top Glazing Bar is extruded as a low cost budget glazing bar. The SNAPA® glazing bar works well with 10mm, 16mm, 25mm, 32mm and 35mm AXIOME® multiwall polycarbonate sheet.
Whilst SNAPA® bars are ideal for smaller DIY type projects, where greater longevity or strength are required, ALUKAP®-XR glazing bars are recommended.
SNAPA® bar glazing system has been designed and manufactured to with multiple click connection points so that it will work well with AXIOME® multiwall of almost any thickness. The high quality PVC profiles are extruded with a significant wall thickness providing a high degree of strength and rigidity.
The SNAPA® bar is very fast to install with an easy snap-fix connection.
SNAPA® Snap-Fix Benefits
- Quick snap fix fitting
- Installer friendly
- Easy to cut
- Economical solution
Applications
- Canopies
- Covered Decking Areas
- Carports
- Verandas
- Covered Walkways
- DIY
Specification
Dimensions
2500mm
3000mm
4000mm
5000mm
Details
Downloads
There are no product downloads to show.
Questions & Answers
Question:
Do they do one for the end of a car port the ones you show it take a sheet both sides so do they do one that is one sided for the end
Answer:
Have a look at
https://www.roofingsuperstore.co.uk/product/snapa-snapfix-10mm-pvc-drip-trim-white-2-1m.html
Question:
Does this bar allow a curved (convex-up) installation?
Answer:
No they are not designed to bend like that
Question:
I need to be able to dismantle the roof from time to time. Can the bar be released or once the connection has been pushed home is it permanent?
Answer:
It's designed to be a permanent fix, However, you can prise it open if you are careful
Question:
is this self supporting over 2.80m span or would it need to have rafters to fix it to ?
Answer:
This would need to sit on a rafter.
Question:
is this self supporting over 3.50m span or would it need to have rafters to fix it to ?
Answer:
This would need to sit on a rafter.
Question:
Are glazing bars supplied complete with end caps?
Answer:
Yes these would come with an end cap.
Question:
Hi, are these suitable for 3 to 4mm thick polycarbonate sheets?
Answer:
Unfortunately not this is for use with 10mm, 16mm, 25mm, 32mm and 35mm sheets.
