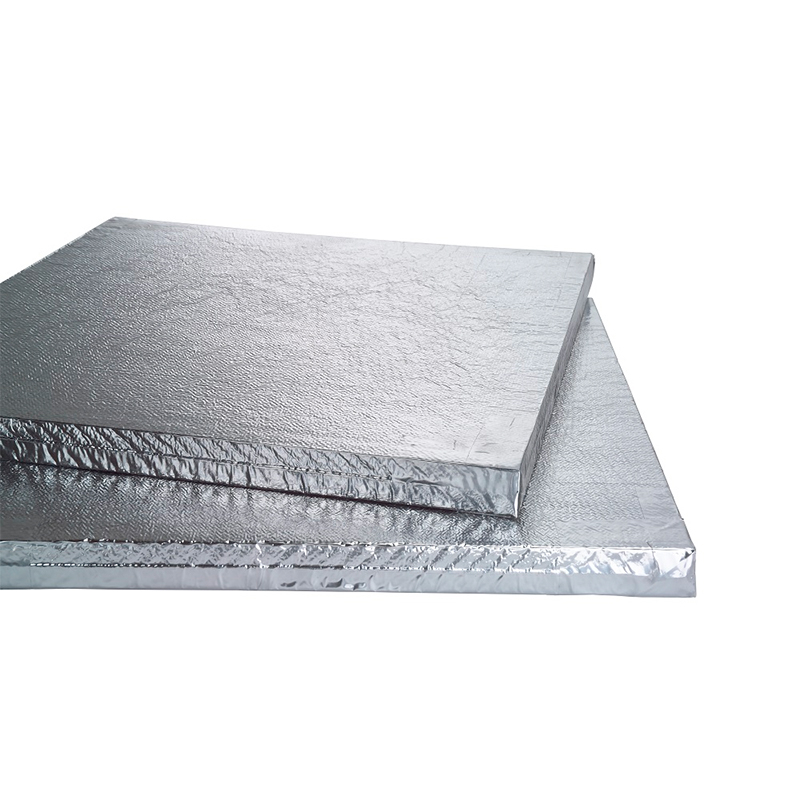

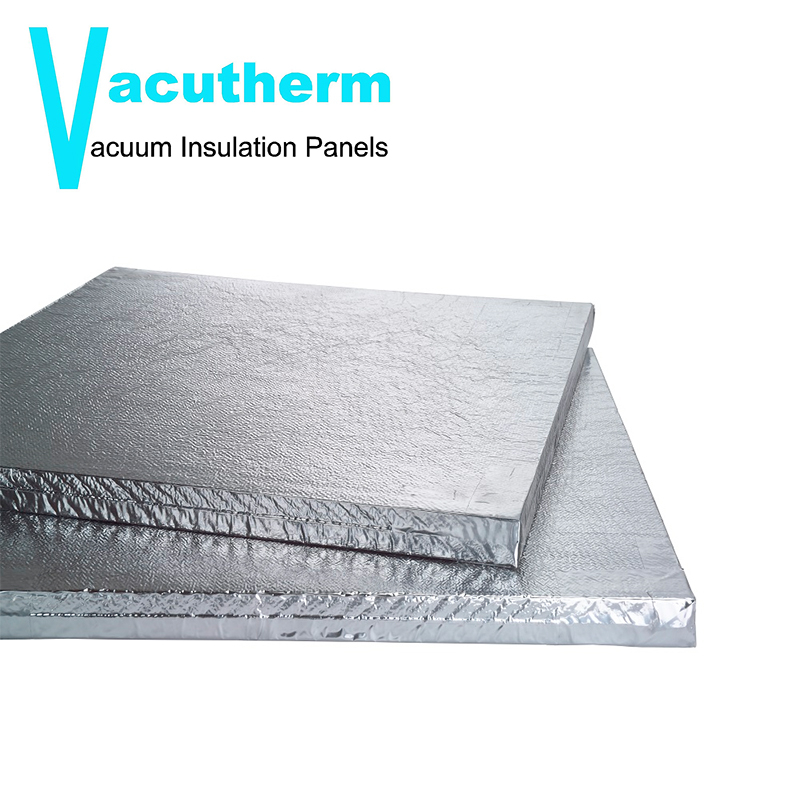

Vacutherm Vacupor NT-B2 vacuum insulated panels are the ideal insulation material when you’re looking to minimise construction thickness whilst still achieving excellent thermal insulation. You may not have a lot of space but vacuum insulated panels can be as thin as 20mm and still offer 0.005 W/mK.
Low internal pressure, a
microporous material that breathes, and low density all contribute to
the fantastic thermal performance of these vacuum insulated panels.
Applications for Vacutherm Vacupor NT-B2 include terrace insulation,
cold storage floor insulation, flat roof insulation and façade elements
but these vacuum insulated panels are a great choice for a building
requiring increased fire protection.
Vacutherm Vacupor have a
class A1 fire rating meaning that they’re non-flammable and the German
Institute of Civil Engineering has approved this product for use in
applications: DAD, DAA, DZ, DI, DEO, WAB, WAA, WH, WTR and WI. It’s also
approved for pre-fabricated panels with insulated glass character.
Please note : drilling, cutting, milling, nailing or otherwise puncturing vacuum insulated panels will remove all their insulating properties.
Length : 1.2m.
Width : 1m.
Thickness : 30mm.
Panel size : 1.2m2.
Thermal conductivity :
Rated value - 0.008 W/mK. (according to DIBT approval number Z-23.11-1662).
Ambient pressure - 0.0019 W/mK.
1 mbar pressure - 0.005 W/mK.
Heat resistance : -50°C to +120°C.
Fire rating : Class A1.
Density : 170 - 210 kg/m3.
Colour : silver - caused by film.
Balcony insulation.
Floor insulation.
Flat roof insulation.
Cold storage floor insulation.
Internal and external walls.
