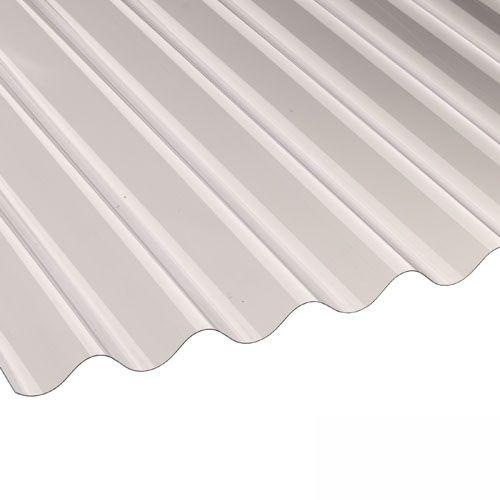

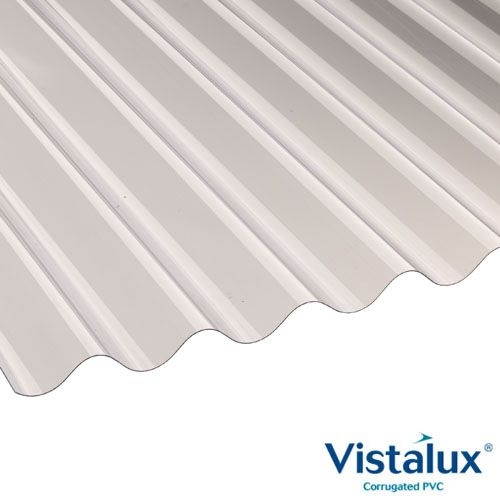

Vistalux 10/3 Iron Corrugated PVC Roof Sheets - 3.05m x 0.812m

Name: Vistalux 10/3 Iron Corrugated PVC Roof Sheets - 3.05m x 0.812m
Brand: Vistalux
SKU: 24012
Price: 46.19 GBP
Availability: Discontinued

Code:

24012

Brand:

Vistalux

Free UK Delivery

Vistalux 10/3 Iron Corrugated PVC Roof Sheets Heavy Duty - 3.05m x 0.812m Properties Length : 3.05m. Width : 812mm. Thickness : 1.3mm. Profile : 10/3 corrugated iron. Colour : clear. Light transmission : 66%. uValue : 5.67 W/m2K. Fire performance : Class 1. Fixing requ...Read More

View full product details

View questions about this product

Create a wishlist

Ziggy

Description

Vistalux 10/3 Iron Corrugated PVC Roof Sheets Heavy Duty - 3.05m x 0.812m

Properties

Length : 3.05m.
Width : 812mm.
Thickness : 1.3mm.
Profile : 10/3 corrugated iron.
Colour : clear.
Light transmission : 66%.
uValue : 5.67 W/m2K.
Fire performance : Class 1.

Fixing requirements
Divide the roof width by the fixing centres. Divide the roof length by the support centres and add 1.
Multiply these two values together.

Warranty
This product is covered by a 10 year warranty. A replacement is provided free of charge if the product has failed due to a manufacturing defect, in normal climatic conditions within a 10 year period from the date of purchase.

Vistalux MUST be fixed and maintained in accordance with the manufacturer's instructions for the warranty to remain valid : re-erections or consequential damage costs are not included.

Storage

Storage indoors on a flat and dry surface in cool surroundings is preferable.
When outdoor storage is unavoidable, store flat on wooden bearers, spaced at about 1m (3' 3") centres and cover completely with an opaque light coloured tarpaulin.
Stacked sheets left uncovered in direct sunlight will distort due to solar heat gain in the stack.

Material uses

Porches.
Car ports.
Canopies.
Rooflights.
Cloches and coldframes.
Planthouses.
Side cladding.
Covered walkways.
Garden sheds.
Lean to extensions.

Key Properties

Ideal PVC sheet for roofing and cladding, qualities include:

Fine optical clarity : visually attractive sheet which will enhance the appearance of your property.
Provides 3 times more natural light into a building than the same area of vertical glazing : creating a bright pleasant environment in the area beneath.
Excellent fire performance : PVC is a self extinguishing material which will melt away from the flames stopping as soon as the source is removed.
Strong yet light in weight.
Simple to handle and install.
Good workability : cutting and drilling the material are straightforward procedures requiring only the most basic of tools.

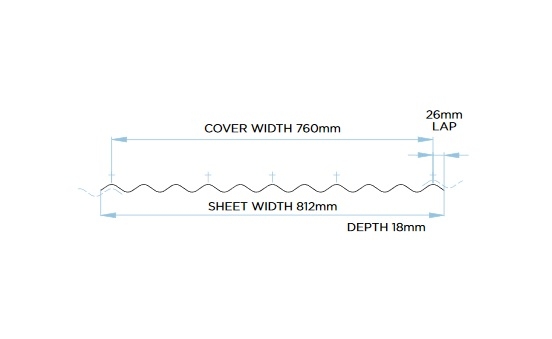

Specification

Dimensions

Length 3050mm Width 812mm

Details

Thickness 1.3mm Colour Translucent Material PVC
