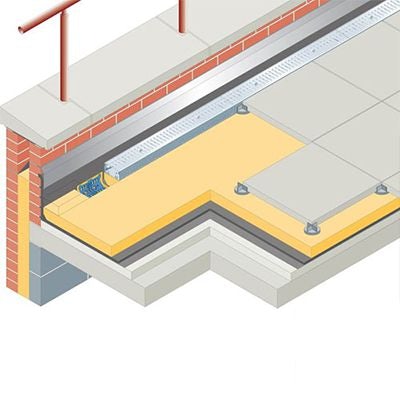

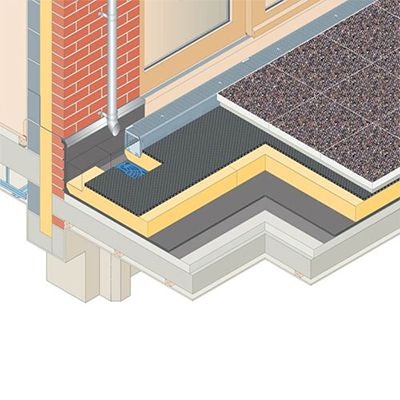

The ACO FreeDeck mesh access frame grating is a stainless steel asset made for the FreeDeck range advanced roof and balcony drainage systems. It comes with a FACTA A rating. Combining line drainage with point drainage, this system uses an open-sided drainage channel system. The rainwater is collected and conveyed to drainage points with a raised or suspended deck structure, then intercepted at three points. This includes the surface run-off, percolation within the deck and rainwater outlet positions.

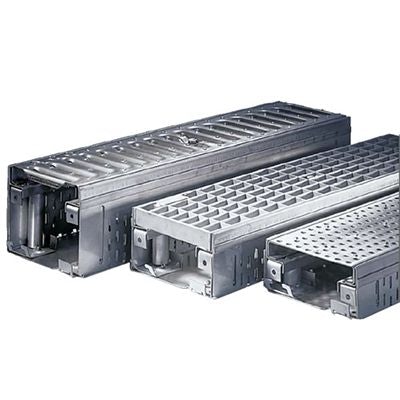

ACO's FreeDeck channel is manufactured using stainless steel and laid directly onto the insulation layer or waterproofing membrane. If the surface requires pavings to be laid 'open or closed joint', this provides efficient drainage. As a result, better safety for foot traffic and weathered protection of the building fabric. Compliance also includes national access regulations, providing level access drain in compliance with British Standards and Building Regulations.
For application, the FreeDeck is suitable for rainwater drainage and safe access for all types of suspended deck construction. It also details into all types of flat roof finishes, is practical within all applications throughout building life and protects and maintains the building fabric.
Please note:
There are no product downloads to show.
Question:
Hi, whats size is this please, I am looking for 395mm x 395mm x 25mm if you have one. Thanks Rob
Answer:

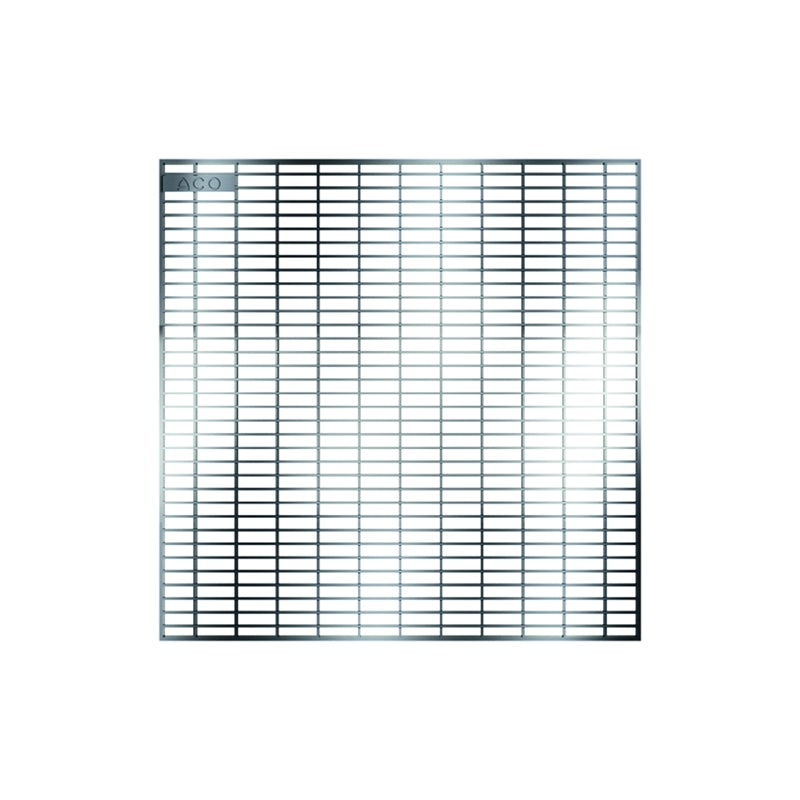

Hi Rob, The ACO Freedeck Mesh Access Frame Grating - Stainless Steel has a width of 390mm and a height of 20mm. The clear access size, as shown in the technical drawing, is 500mm x 500mm. The mesh grating has a 16mm x 30mm mesh pattern. Unfortunately, it does not match the exact dimensions of 395mm x 395mm x 25mm that you are looking for. If you need a specific size, it might be worthwhile to conduct a search on our site for other products, or you can reach out to our customer service team who would be more than happy to assist you in finding a product that fits your requirements.
