Alumasc Aqualine Box Internal Angle

Product Code:
Est. Delivery: Select option below
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

£90.01 Incl. VAT
Oops! Please select from the options

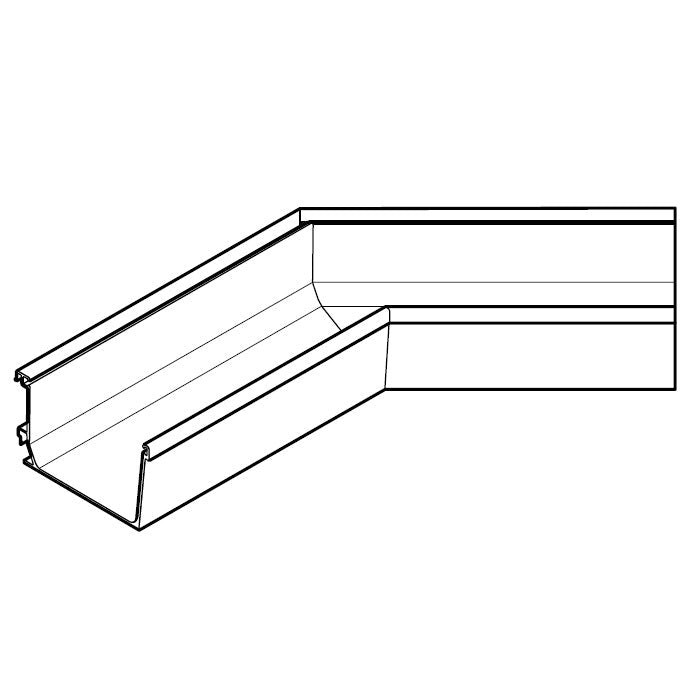

Designed to fit at the corners of buildings, this internal angle guttering is fully compatible with the Alumasc Aqualine Box extruded aluminium guttering system. Directing the flow of rainwater into a gutter or running outlet and into a water system below is fantastically easy. This Box internal angle has a striking rectangular profile and a trough shape that maximises the water flow capacity for your gutters.

This Box internal angle enhances and complements the appearance and architectural character of contemporary designed buildings by displaying intricate detailing and smooth lines. Suitable for both flush and projecting eaves applications, this internal angle contributes to an efficient and compact rainwater system. Manufactured from durable and non-corrosive aluminium and available in a range of colours, diameters and angles, this internal angle can be made to fit your gutting needs.

Features & Benefits: Alumasc Aqualine Box Internal Angle

  • Made from non-corrodible aluminium with a life expectancy of 40 years for rural /suburban areas and up to 25 years for industrial/marine areas
  • Manufactured in the United Kingdom to British standards
  • BBA approved process for factory-applied polyester powder coatings
  • Recyclable aluminium to make it environmentally friendly
  • Crafted with aluminium extrusions 6063 T6 alloy to BS EN 573: BS EN 755, BS EN 12020 and BS 9101
  • Ideal for enhancing buildings with intricate details, smooth lines and concealed bracketry, giving a clean appearance
  • Minimal maintenance once installed
  • Light in weight and easy to install and handle
  • Ideal for both flush and projecting eaves applications
  • Available in a range of colours, diameters and angles
  • High flow capacity for enhanced performance

Quick and easy to install, this lightweight internal angle uses a unique dry jointing system to give a completely clean external appearance. This Aqualine Internal angle gutter can drop and lock onto concealed brackets with locked and aligned internal joints using slide/lock bars situated at the front and rear. Ensuring a completely secure gutter system, this internal angle allows for free linear thermal movement.


Colour Anthracite Grey
Silver Metallic Matte

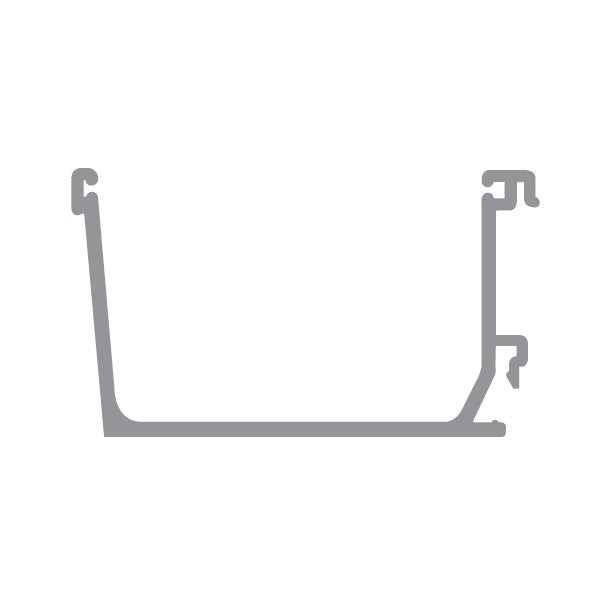

Material Aluminium Profile Box Gutter Diameter 120mm x 80mm
140mm x 100mm
160mm x 100mm
Angle 90 Degrees
135 Degrees
Range Aqualine
