Atlas Fixed Clear Tint Flat Rooflight

Code:
ATLAS-FIXED-CLEAR-TINT-FLAT-ROOFLIGHT

This flat rooflight has been manufactured by Atlas, with a clear tint, and is unable to be opened. The Atlas flat rooflight range is popular as a way to complete a modern and contemporary finish to flat roofs, extensions and other projects. Atlas flat rooflights are designed w...Read More

from
£474.50 Incl. VAT
Oops! Please select from the options
Delivery from: 1-2 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Thursday, Feb 22nd - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

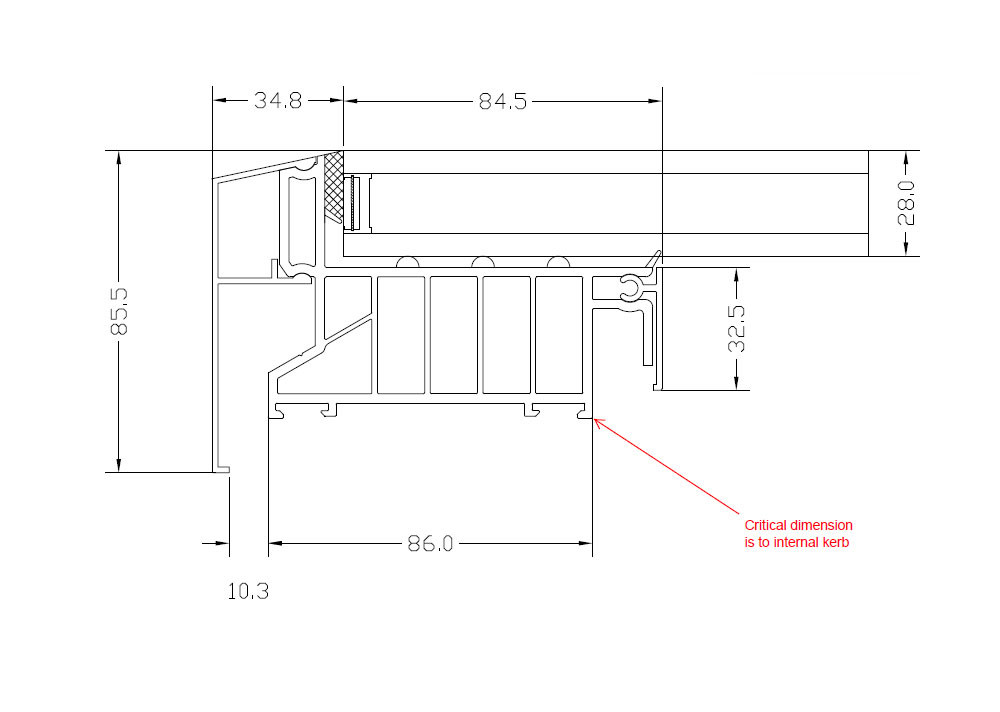

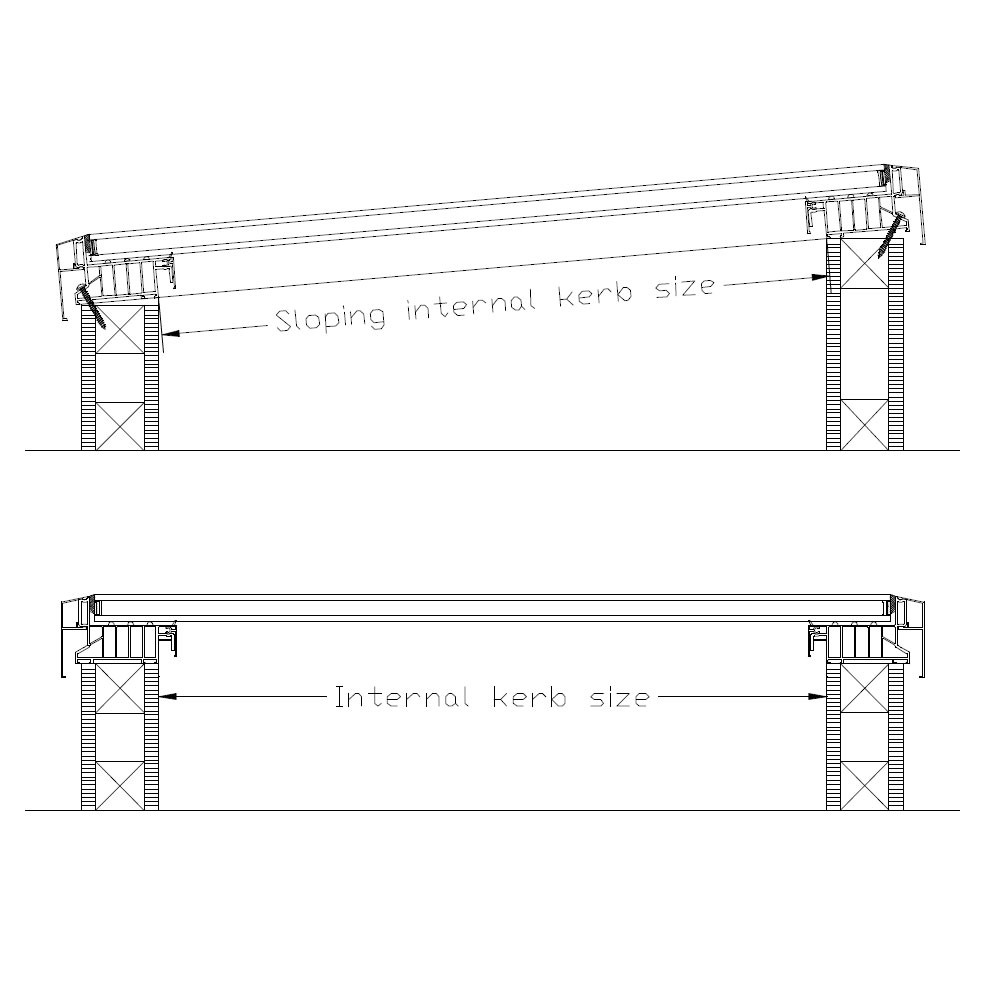

Please note: the dimensions/size stated on all Atlas Flat Glass Rooflights refers to the internal dimensions of the kerb. Important: minimum pitch of kerb to be 5 degrees - measure internal kerb length along slope.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

CLEARANCE OFFER - 5% off the next purchase of this frame

USE CODE: FRAMESPECIAL5
CODE COPIED

Description

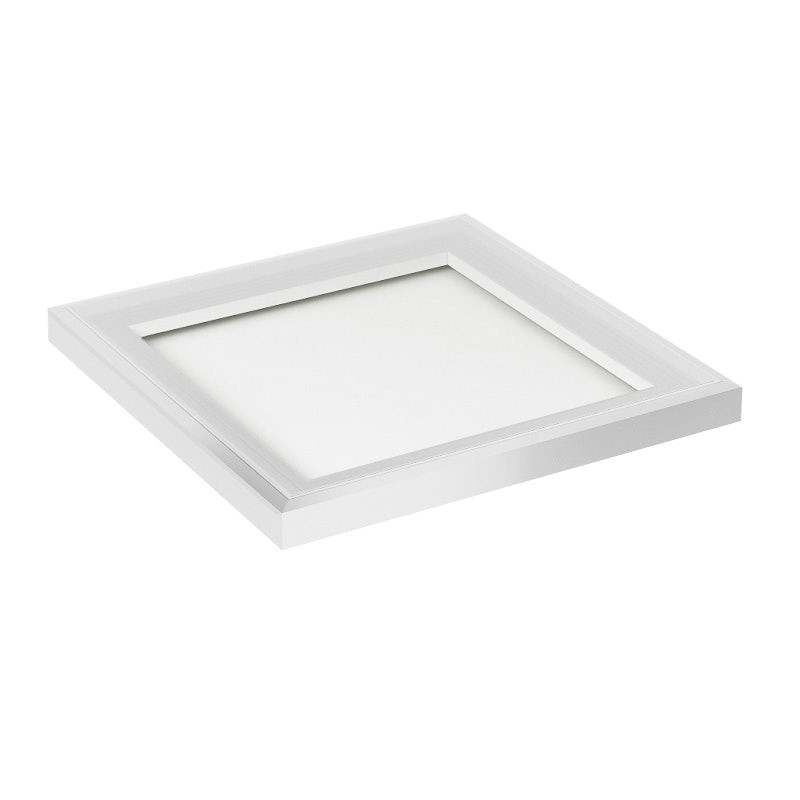

This flat rooflight has been manufactured by Atlas, with a clear tint, and is unable to be opened. The Atlas flat rooflight range is popular as a way to complete a modern and contemporary finish to flat roofs, extensions and other projects. Atlas flat rooflights are designed with a minimal visible frame, ensuring that maximum sunlight can pass through and into the room below.

The Atlas fixed clear tint rooflight consist of a uPVC internal core, which is bridged with a thick glass unit - the glass unit consists of double glazing with an argon cavity between the two pieces of glazing for maximum thermal efficiency.

There are a number of different colours of frame available with this clear tint Atlas rooflight, to ensure the rooflight either blends in with your roof for minimal visual impact, or creates a great feature. The internal frame and external frame can be different colours, and you can choose from black, grey or white internal and external frames.

This fixed flat rooflight is supplied with a clear tint. The clear tint has been designed to maximise the light transmission through the rooflight, providing a clear view through both sides of the rooflight.

This clear tint flat rooflight is not supplied with an upstand, so it is important to note that an upstand will need to be manufactured for the installation of the flat rooflight.

Dimensions

Length 800mm
900mm
1000mm
1100mm
1200mm
1300mm
1400mm
1500mm
1600mm
1700mm
1800mm
1900mm
2000mm
2100mm
2200mm
2300mm
2400mm
2500mm
2600mm
2700mm
2800mm
2900mm
3000mm
Size 1100mm x 800mm
1100mm x 900mm
1300mm x 1100mm
1300mm x 800mm
1300mm x 900mm
1500mm x 1100mm
1500mm x 1200mm
1500mm x 1300mm
1500mm x 1400mm
1500mm x 900mm
1600mm x 1100mm
1600mm x 1200mm
1600mm x 1300mm
1600mm x 1400mm
1700mm x 1000mm
1700mm x 1100mm
1700mm x 1200mm
1700mm x 1300mm
1700mm x 1400mm
1800mm x 1000mm
1800mm x 1100mm
1800mm x 1300mm
1800mm x 1400mm
1900mm x 1100mm
1900mm x 1200mm
1900mm x 1300mm
1900mm x 1400mm
1900mm x 800mm
1900mm x 900mm
2000mm x 1100mm
2000mm x 1200mm
2000mm x 1300mm
2000mm x 1400mm
2100mm x 1000mm
2100mm x 1100mm
2100mm x 1200mm
2100mm x 1300mm
2100mm x 800mm
2100mm x 900mm
2200mm x 1100mm
2200mm x 1200mm
2200mm x 1300mm
2200mm x 800mm
2200mm x 900mm
2300mm x 1000mm
2300mm x 1100mm
2300mm x 1200mm
2300mm x 800mm
2300mm x 900mm
2400mm x 1100mm
2400mm x 800mm
2400mm x 900mm
2500mm x 1100mm
2500mm x 1200mm
2600mm x 1100mm
800mm x 1200mm
1200mm x 1400mm
800mm x 800mm
800mm x 900mm
800mm x 1000mm
800mm x 1100mm
800mm x 1300mm
800mm x 1400mm
800mm x 2800mm
900mm x 800mm
900mm x 900mm
900mm x 1000mm
900mm x 1100mm
900mm x 1200mm
900mm x 1300mm
900mm x 1400mm
900mm x 1800mm
900mm x 2000mm
900mm x 2200mm
900mm x 2300mm
1000mm x 800mm
1000mm x 900mm
1000mm x 1000mm
1000mm x 1100mm
1000mm x 1200mm
1000mm x 1300mm
1000mm x 1400mm
1000mm x 1500mm
1000mm x 1600mm
1000mm x 1700mm
1000mm x 2000mm
1000mm x 3000mm
1100mm x 1000mm
1100mm x 1200mm
1100mm x 1300mm
1100mm x 1400mm
1100mm x 1700mm
1100mm x 2100mm
1100mm x 2400mm
1200mm x 800mm
1200mm x 900mm
1200mm x 1000mm
1200mm x 1100mm
1200mm x 1200mm
1200mm x 1300mm
1200mm x 1500mm
1200mm x 1800mm
1200mm x 2200mm
1200mm x 2400mm
1300mm x 1000mm
1300mm x 1200mm
1300mm x 1400mm
1300mm x 1700mm
1400mm x 800mm
1400mm x 900mm
1400mm x 1000mm
1400mm x 1100mm
1400mm x 1200mm
1400mm x 1300mm
1400mm x 1400mm
1500mm x 800mm
1500mm x 1000mm
1600mm x 800mm
1600mm x 900mm
1600mm x 1000mm
1700mm x 800mm
1700mm x 900mm
1800mm x 900mm
1800mm x 1200mm
1800mm x 1800mm
1900mm x 1000mm
2000mm x 800mm
2000mm x 900mm
2000mm x 1000mm
2200mm x 1000mm
2400mm x 1000mm
2400mm x 1200mm
2500mm x 800mm
2500mm x 900mm
2500mm x 1000mm
1800mm x 800mm
Width 1000mm
1100mm
1200mm
1300mm
1400mm
800mm
900mm

Details

Finish Black on Black
Black on White
Grey on Grey
Grey on White
White on White
Operation Fixed Glazing Double Glazing Style Flat
Glazing Tint Clear Tint Application Flat Roofing Material Glass Internal Frame Colour Black
White
External Frame Colour Grey
White

Downloads

There are no product downloads to show.

Questions & Answers

Question:

We are also fitting a 1m x 2m fixed pane & will be making our own kerb can you clarify the dimensions please

Answer:

The dimensions/size stated on all Atlas Flat Glass Rooflights refers to the internal dimensions of the kerb.

Question:

Hi. Is the glass for the Atlas roof light K glass. Do you deliver to Jersey ?

Answer:

Im sorry but its mainland only

Question:

HI Does the Atlas flat roof light come with self cleaning glass? In not do you do something similar with this option?

Answer:

Im sorry, No on both questions

Question:

Hi, Im looking to purchase the 2000 x 1000 skylight. I will be building the kerb upstand this weekend can you clarify dimensions that the kerb upstand needs to be please?

Answer:

Good Morning Adrian



I will send you some information on a private email

Question:

Can this have self cleaning glass?

Answer:

This has that glazing as standard for you, please see the key features below.

Minimalist contemporary external design & flush glazing

Overall U Value 1.3 (double glazing)

10 year seal and easy clean coating warranty as standard

Low e insulated toughened double glazing as standard

Question:

If I order grey white frame will it be grey on the outside and white on the interior?

Answer:

Correct this would be grey on the outside and white on the inside.

Question:

Can it be used on a pitched roof (the pitch is very shallow 10-15Deg)?

Answer:

Yes this would be suitable, but please be aware you need to build your own kerb to fit this onto.

Question:

Hi there when it says grey on white I take it that means the frame external is grey then internal is white?

Answer:

Correct this means grey outside and white inside.

Question:

Can this window be fitted onto a rubber roof?

Answer:

Yes but you do need to build your own upstand for these to fit on, the dimensions on the Rooflight would be the internal dimensions of the upstand you create.

Question:

On the atlas roof light are you measurements the internal size or the external of the curb up stand on the flat roof?

Answer:

Yes, the internal dimensions of the kerb.

'Please note: the dimensions/size stated on all Atlas Flat Glass Rooflights refers to the internal dimensions of the kerb. Important: minimum pitch of kerb to be 5 degrees - measure internal kerb length along slope.'

Question:

what structural opening size should be made?

Answer:

The structural opening for Atlas Rooflights is the advertised dimensions we list on the website, a 80mm thick upstand must be applied around the the rooflight and in itself is the external dimensions for the rooflight, also a 5 degree slope must be applied to allow for water run off.

Question:

What dimensions do I use for the frame for a 1200x800 atlas flat roof window?

Answer:

The dimension on the lantern are the external dims you will need to make the kerb to, so if you make your kerb so it measures externally 1200mm x 800mm you would be fine.

Question:

What is the external size of this unit?

Answer:

The external measurements are 2160mm x 1060mm.

Question:

What is the weight of this product?

Answer:

The weight is 115kg.

Question:

What is the minimum upstand height required for planning?

Answer:

The minimum required upstand height for this rooflight is 150mm, please note that if the roof has a pitch of less than 15° then the upstand needs to compensate for this so the height at one end may be higher. The window itself has a height of 72mm above the upstand.

Question:

How much does this product weigh?

Answer:

APPROX 115KG
