Robust Plus Pantile Metal Lightweight Roofing Tile - Pepperstone

Q: What size

Overall size of tile : 1290mm x 360mm. Cover size of tile : 1230mm x 320mm.

Code:

STPB1

Brand:

Decra

Free UK Delivery

View full product details

View questions about this product

Create a wishlist

Kenny Macindoe

Description

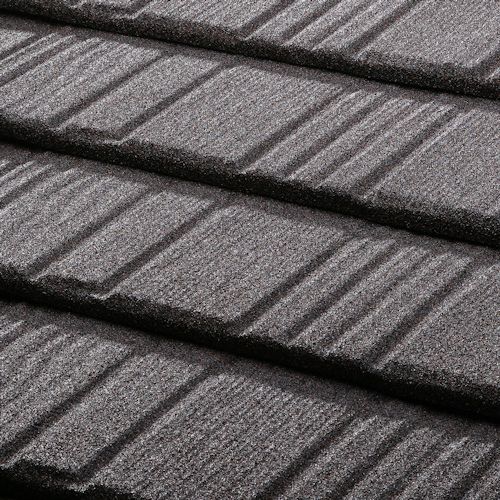

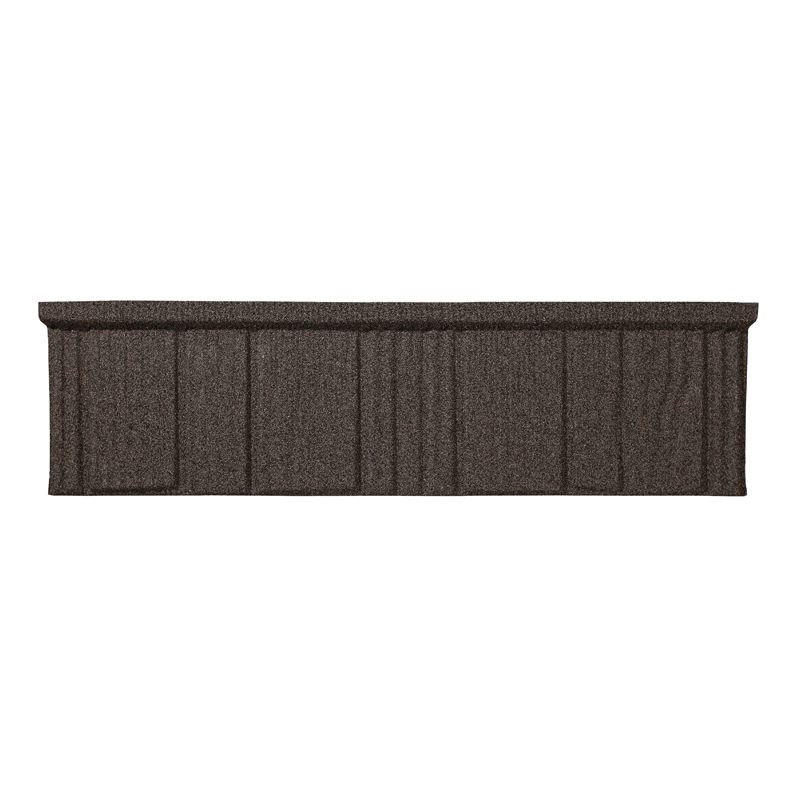

Robust Plus lightweight roofing tiles are designed to provide an economic and attractive finish for all types of roof down to 12° pitch. The system, which is available in two colours, comprises of coated, zinc aluminium galvanised steel tile panels with the appearance of slates or concrete roof tiles.

An extensive range of lightweight roofing accessories are also available, including eaves, ridge and tile ventilation systems, Robust Plus lightweight roofing tiles are totally dry fixed throughout. Each tile has a downturned front edge and an upturned rear edge, and is contoured to provide a strong overlapping and interlocking roof covering. Robust Plus lightweight roof tiles are produced in large format. This enables faster installation with fewer fixings compared to traditional tile or slate roofing.

Once installed Robust Plus lightweight roofing tiles provide an extremely robust, weather secure and low maintenance roof or vertical covering.

Properties

Minimum pitch : 12°.
Maximum pitch : 90°.
Overall size of tile : 1290mm x 360mm.
Cover size of tile : 1230mm x 320mm.
Gauge : 320mm.
Linear cover width : 1230mm.
Coverage : 0.39m2 per tile.
2.54 tiles per m2.
Weight : 2.8kg per tile.
7.1kg per m2.
Fixings per tile : 4 nails.
Battens required : 3.13 linear metres per m2 (plus wastage).

Rafter centres - maximum :
450mm - 38mm x 38mm.
600mm - 50mm x 38mm.
900mm - 50mm x 50mm.
1200mm - 50mm x 50mm.
1500mm - 50mm x 65mm.

Features

Versatile – can be used for roof pitched from 12° to vertical.
One-seventh the weight of concrete roof tiles.
40 year full value weather security roofing guarantee.
Lightweight roofing tiles possess unparalleled weather resistance.
Environmentally friendly.
Fully dry fixed roofing system provides the maximum storm security.
Labour costs reduced due to speed of fixing.
Lightweight roof tiles low weight enables savings to be made on timber content of roof structure.
Easier to handle, quicker to install and more attractive than long run roofing sheets.

Specification

Details

Colour Pepperstone Profile Pantile

Downloads

Questions & Answers

Question:

What size

Answer:

Overall size of tile : 1290mm x 360mm.
Cover size of tile : 1230mm x 320mm.
