Delta Lite Edwardian Roofing System with Tapco Slates - 3m x 3.5m

Code:
DL-ED-TS 3035
Free UK Delivery

This item is out of stock and not available to purchase.

The delta roof system can be made to any size - if you would like a quotation for the delta roof system or want any more information please feel free to contact us on : 01752 692760. Please note this system is supplied with Tapco slates. Lead flashings are not supplied w...Read More

Create a wishlist

"The best service I have experience…"

Customer John McInnes

Description

The delta roof system can be made to any size - if you would like a quotation for the delta roof system or want any more information please feel free to contact us on : 01752 692760.

Please note this system is supplied with Tapco slates.

Lead flashings are not supplied with this package.

Properties
Depth : 3m.
Width : 3.5m.

Delta Lite
The Delta-lite roof is a development of the proven Delta System and was designed specifically for conservatory roof replacement.

In response to the common conservatory issue of being ‘Too Cold In Winter’ and ‘Too Hot In Summer’, the Delta- lite product is the perfect solution. With exceptional insulation standards and carefully selected construction and finishes, the overall weight is minimised so as not to overstress existing window frames. Structurally certified, with many unique features the Delta-Lite roof offers a superior and cost effective solution to transform your existing conservatory.

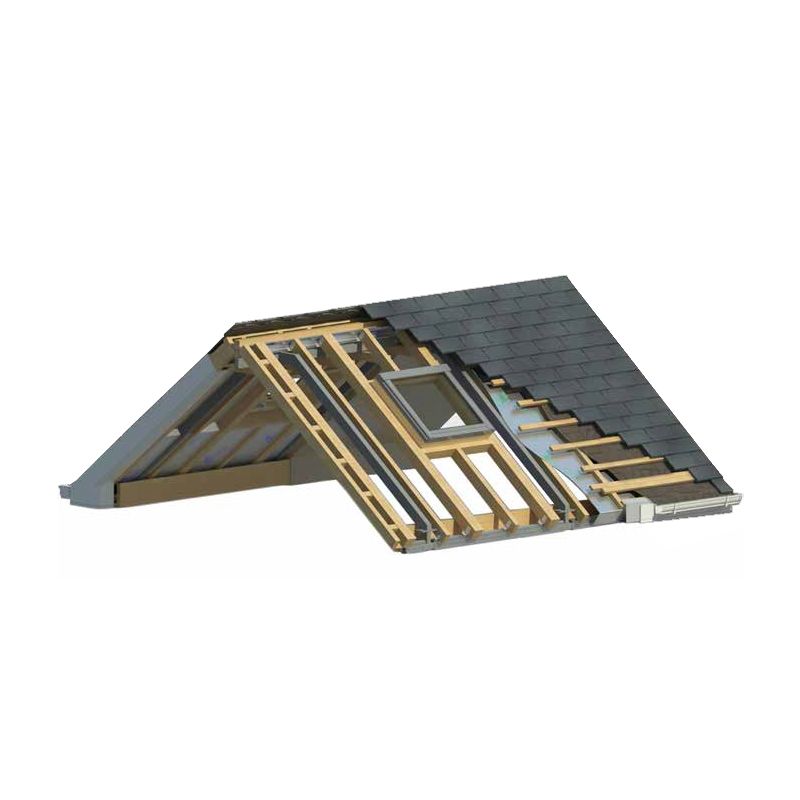

Delta lite kit contents
Steel portal.
Pre cut timber & aluminium components.
Pre formed internal & external fascias.
Rain water goods.
High tech insulation.
Felt.
Battens.

Optional extras - not included as standard
Hip backs / high box gutters.
Windows.
Steel post support.

If you require any windows or optional extras please call us on : 01752 692760 to discuss.

External finishes
Designed to carry any slates or tiles up to 20kgs per sq metre - eg Tapco, Tegral, Decralite or Envirotile.

Insulation
Delta-lite roof is a ‘warm roof’ system based on the proven Delta roof and uses the same high-tech multi-layer foil insulation over the rafters.

No ridge or eaves ventilation is required further enhancing the insulation performance. The timber rafters can easily facilitate additional insulation. 80mm of PIR (rigid polyurethane foam) between rafters achieves 0.18 U value required to meet building regulations and this can be increased should even higher insulation quality be required.

External fascias and soffits
Traditional appearance with PVC fascias, soffits and gutters the Delta-lite roof offers similar quality design, looks and weather protection as the Delta roof.

Internal ceilings
Sloping or flat ceilings can be provided to receive a choice of finishes such as plaster or timber sheeting. Traditional appearance and detailing above windows facilitates easy and secure fixing of blinds and curtains.

Rafters
Timber rafters help provide high quality insulation performance. They also resist thermal movement thereby preventing plaster cracks in ceilings.

Flexibility
Delta-lite roof is available in many sizes and shapes and its detailed design allows for tolerances on site. This is particularly useful when fitting to existing frames which may not be same size or angles on all sides. Consideration has to be allowed for the strength of existing windows, but if there is doubt the Delta-lite roof can be specified with additional posts to transfer weight directly to the inner walls.

Snow and wind loads
The roof system is designed to carry 600mm of snow (60kgs sq m) and resist storm force winds. It is structurally approved for use throughout the UK and Ireland.

Guarantee
Additionally and as a mark of confidence in our superior roof systems, every Delta Roof comes with a
10 Year Guarantee – Delta Roof Systems stand the test of time.
