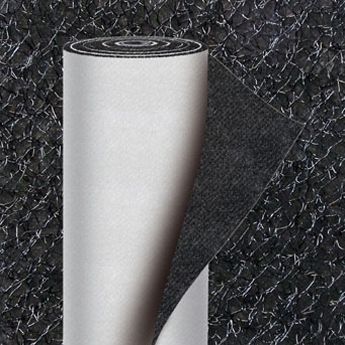

DuPont Tyvek Metal Roofing Felt Underlay - 25m x 1.5m Roll

Product Code:
Est. Delivery: 10-15 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

£299.00 Incl. VAT
Oops! Please select from the options


This underlay is a vapour open drainage membrane with integral adhesive lap allowing eventual condensation beneath Stainless Steel, Copper and Zinc roofs to drain away.

It is designed for use beneath standing seam metal sheet roofs over timber boarding and even more important over softwood boarding.

Length : 25m.
Width : 1.5m.
Roll size : 37.5m2.
Roll weight : 11.5kg.
Mass per unit area : 350gsm.
UV exposure : 4 months.
Certification : CE marking.
Composition : Composite of high density polyethylene, nonwoven and open mesh spacer.


Tyvek Metal
A vapour-permeable drainage membrane for use beneath standing seam metal sheet roofs over timber boarding. Allows condensation beneath stainless steel, copper and zinc roofs to drain away. Membrane should be installed over 150mm wide timber boarding with 2mm gaps between. Integral lap tape provided.

DuPont Tyvek Metal can be termed a ‘metal roof drainage membrane’ for application into standing seam metal roof systems. The product consists of a Tyvek vapour permeable membrane (Tyvek Supro) bonded to an open mesh of polypropylene strands approximately 8mm deep. The function of the product is to provide protection to a roof structure and thermal insulation against condensation that may occur beneath rigid standing seam cladding of zinc, stainless steel, aluminium and copper.

In addition to its drainage function, the product will provide suitable separation between layers by allowing movement between the metal sheet and timber boarding. DuPont Tyvek Metal will also offer a reduction in sound transmission typically generated by structure borne sounds such as rain clatter.

The product is installed directly beneath the standing seam sheet, with the open mesh providing adequate support, whilst maintaining a clear airspace to allow any condensate to drain away. The vapour permeability of the membrane will allow water vapour from the construction beneath to diffuse through and into the mesh zone. To accommodate this ‘breathable’ function the supporting substrate beneath DuPont Tyvek Metal must also be vapour open. A proven arrangement of 150mm timber boards with a 2mm gap is recommended for this purpose.

Controlling condensation
DuPont Tyvek Metal does not eliminate the risk of condensation occurring in metal roof systems, but will minimise the risks of condensation build-up. A holistic approach to the design of the roof system should therefore be employed, with an emphasis on vapour control and airtightness in the internal lining. A suitable Air & Vapour Control Layer for this type of construction is DuPont Airguard Reflective.

Allows condensation beneath stainless steel, aluminium, copper and zinc roofs to drain away.
Should be installed over 150 mm wide timber boarding with 2 mm gaps between.
For use as drainage membrane beneath standing seam metal sheets roofs over timber boarding.


Length 25m Width 1500mm


Permeability Air Tight Roll Size 37.5m2

Questions & Answers


Hi is this product ok for lead ?


This designed for use beneath standing seam metal sheet roofs over timber boarding and even more important over softwood boarding.
