Easy-trim Roto ETR7 IC Double Glazed Top-Third Pivot PVC Roof Window

Code:
ETR7-PVC-IC

This item is out of stock and not available to purchase.

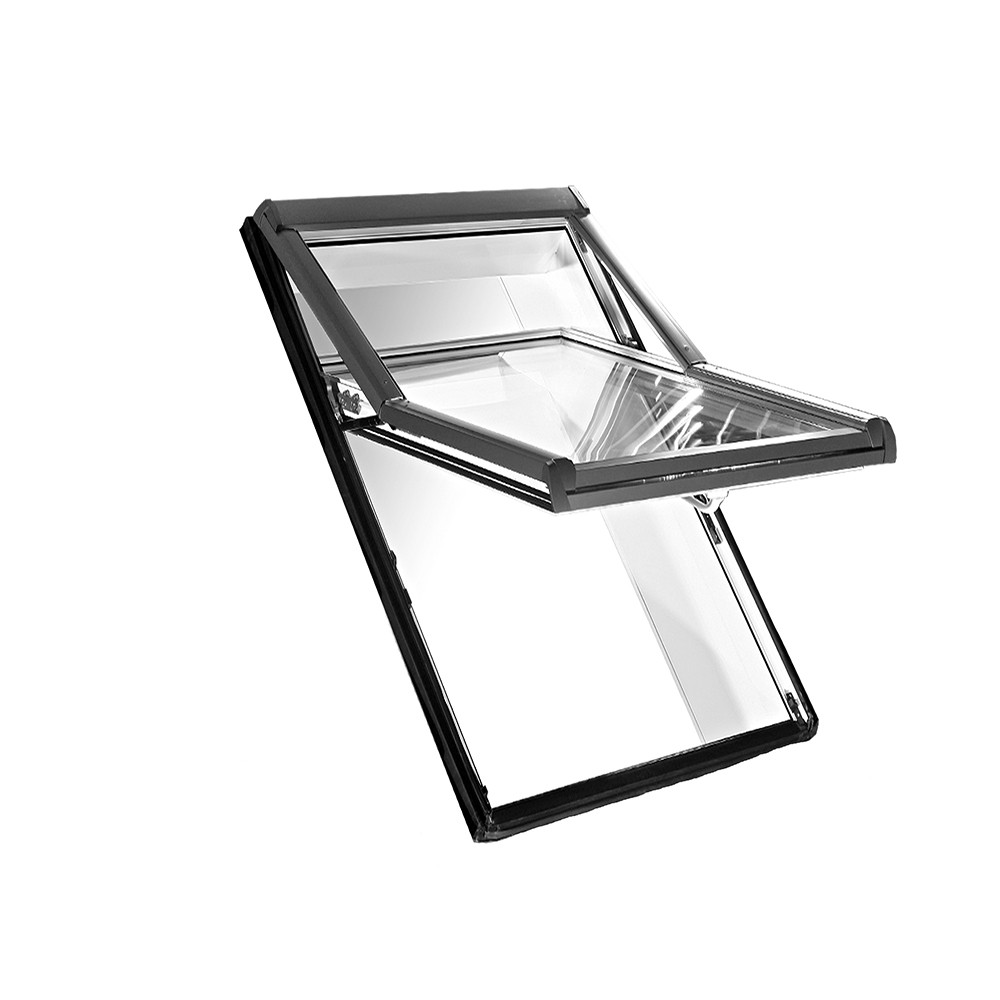

The ETR7 Top-Third PVC Roof Window by Easy-trim Roto has been designed with a slimmer profile compared to other roof windows on the market. This unique design allows for your room to be filled with more natural light, truly opening up any space. With the thermal insulation col...Read More

Create a wishlist

"Superfoil insulation SF19+ Really…"

Russ de Haney

Description

The ETR7 Top-Third PVC Roof Window by Easy-trim Roto has been designed with a slimmer profile compared to other roof windows on the market. This unique design allows for your room to be filled with more natural light, truly opening up any space. With the thermal insulation collar already fitted, installation time is shortened. Not only does the collar save you time it also increases the UW value.

With the control bar being position at the bottom of the window, everything you would need to do is all within an arm’s reach. This could be simply opening the window, ventilating the room or cleaning the glass.

With the window opening outwards, it means that no inside living space is compromised.

The Easy-trim Roto’s frames are all fully insulated, this helps to reduce any thermal bridges that may occur. A vapour barrier comes as a standard for all windows, it allows the window to breath with its high air permeability – high level of air flow.

Installation has become quicker and more simplistic with the clip assembly, push-fit system and the audible ‘click feedback’ designs. Mistakes can be minimised and there is no need for screws.

This window can be used in any room environment, as well as this, it has a non-obstructive sash.

Easy-trim Roto offers a wide range of flashings to accompany and fit all their windows.

If you are seeking a double comfort glazed alternative, please see Easy-trim Roto's ETR8

Installer tip:

Allow 35mm to all sides of your window when making your opening to allow for the insulation collar.

Features & Benefits

  • Bottom control bar
  • Insulated frame
  • Double glazed
  • Quick & Simple assembly

Product Specification

Dimensions:
540mm x 780mm
540mm x 980mm
540mm x 1180mm
650mm x 1180mm
740mm x 980mm
740mm x 1180mm
740mm x 1400mm
740mm x 1600mm
940mm x 1400mm
1140mm x 980mm
1140mm x 1180mm
1340mm x 980mm
1340mm x 1400mm

Material: PVC

Glazing type: Double

Uw-Value Glazing 5: 1

Ug-Value Glazing 5: 1

Sound reduction glazing 5: 29 (0; -3)

Minimum roof pitch: 20°

Maximum roof pitch: 65°

Dimensions

Length 780mm Depth 0.1mm Size 540mm x 780mm
540mm x 980mm
540mm x 1180mm
650mm x 1180mm
740mm x 980mm
740mm x 1180mm
740mm x 1400mm
740mm x 1600mm
940mm x 1400mm
1140mm x 980mm
1140mm x 1180mm
1340mm x 980mm
1340mm x 1400mm
Width 1140mm
1340mm
540mm
650mm
740mm
940mm

Details

Height 780mm
980mm
1180mm
1400mm
1600mm
Finish Timber Operation Manual Glazing Double Glazing
