FAKRO EHN-A/C B2/2/03 4 Block Combination Conservation Flashing For Up To 90mm Interlocking Tiles - 66cm x 98cm

Code:
EHN-A/C B2/2/03
Brand:
Free UK Delivery

This block combination flashing has been designed for use where four 66 x 98cm FAKRO roof windows are being installed as a block, in a 2 by 2 pattern on tiled roofs.  This flashing is designed for deep profiled interlocking tiles that include, but are not limited to...Read More

Create a wishlist

"Good service"

Sean Breakspear

Description

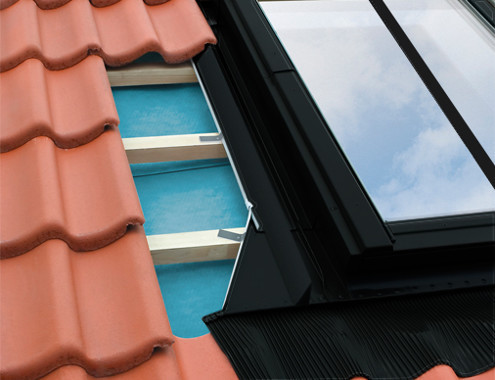

This block combination flashing has been designed for use where four 66 x 98cm FAKRO roof windows are being installed as a block, in a 2 by 2 pattern on tiled roofs.

This flashing is designed for deep profiled interlocking tiles that include, but are not limited to, Redland pantiles, Forticrete Centurion and Senator tiles, Sandtoft Shire, Double Pantile, Double Roman and more.

The 4 block flashing has been manufactured from aluminium as standard, with sections of the flashing being made in a ridged profile for improved malleability around the roof tiles. The flashing is then covered in a polyester coating which improves durability and lifespan, before being finished in a brown grey shade (RAL 7022), which tends to blend in well with most roof tiles.

Why do you need FAKRO 4 block combination flashings?

Flashings are an integral part of the installation of a FAKRO window, and although often disregarded, are incredibly important.

Flashings are used to create a tight connection between the roof windows and the roof tiles, ensuring that the window is fitted accurately, creating a neat finish. The flashings tend to allow a distance of around 10cm between each window.

However, the FAKRO flashing is not just used for visual effect, the flashing is also used to protect the windows from weather conditions, creating efficient rainwater drainage with the ridged design, and preventing water entry at the points where the windows connect to the roof.

By installing FAKRO flashings on your tiled roof, you are eliminating the potential for water to penetrate the roof, which prevents damp, condensation and structural issues from occurring over time. FAKRO flashings also help to increase the lifespan of the roof and the standard roof windows.

If you have any concerns or queries regarding the most suitable FAKRO flashing for your latest FAKRO roof window, don’t hesitate to give us a call on 01752 692760 or use the live chat in the bottom right hand corner and our team of experts will be more than happy to help.

Dimensions

Size 66cm x 98cm Width 1140mm
550mm
660mm
780mm
940mm
980mm

Details

Code EZV Height 780mm
980mm
1180mm
1400mm
1600mm
Finish Matt Pitch 15 - 90 degrees
Roof Covering Interlocking Tile Flashing Type Conservation Flashing
Combination Flashing
Tile Type Interlocking Tiles up to 90mm Profile
