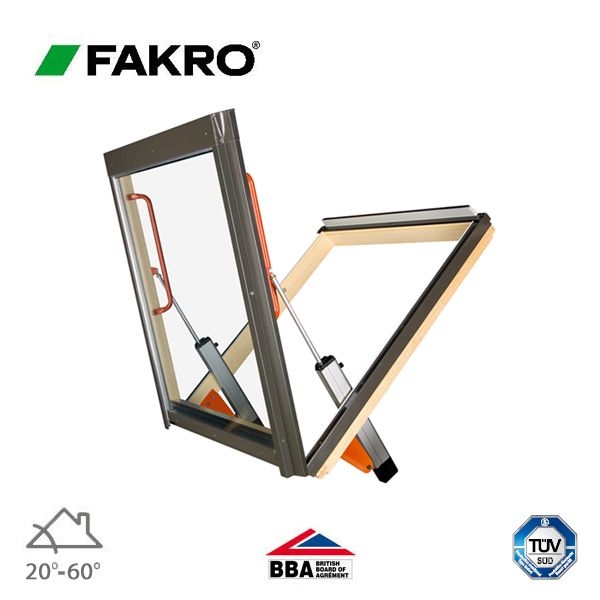

Fakro FSU/09 Bottom Opening Smoke Ventilation Window - 94cm x 140cm

Code:
FSU/09
Brand:
Free UK Delivery

Includes FSU polyurethane (PU) coated window, actuators, control unit, smoke sensor, smoke alarm & flashing. Please specify which tiles or slates the window is being installed with to ensure the correct flashing is supplied. The FSU smoke ventilation window is an elements ...Read More

Create a wishlist

"Handled my order very well were ve…"

ROGER

Description

Includes FSU polyurethane (PU) coated window, actuators, control unit, smoke sensor, smoke alarm & flashing.

Please specify which tiles or slates the window is being installed with to ensure the correct flashing is supplied.

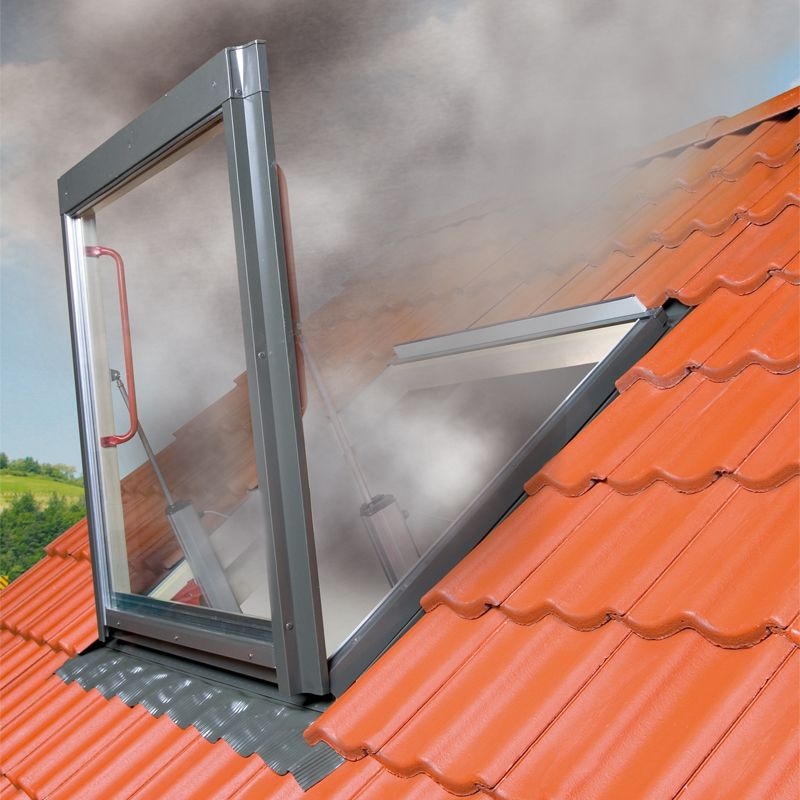

The FSU smoke ventilation window is an elements of the smoke ventilation system used for extraction of smoke and heat during a fire. It offers a special, innovative flap-like structure with the opened sash protecting the opening against the effects of a strong lateral wind. In the course of normal usage, it enables room ventilation and supply of daylight.

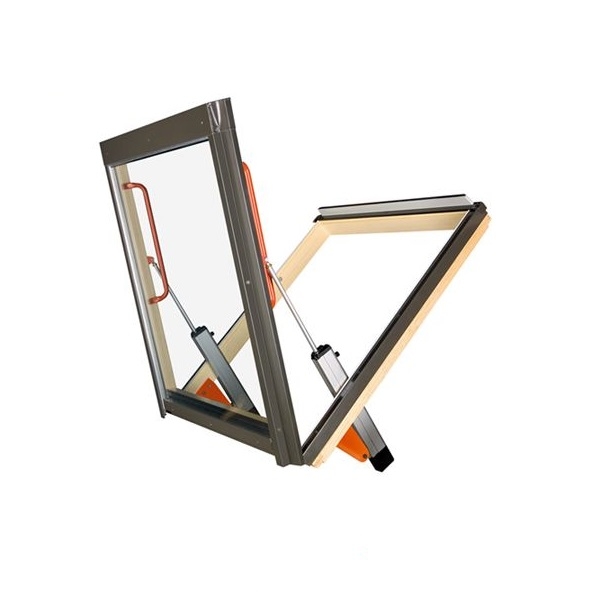

It is equipped with two (24V) motors which raise the sash through a signal from the control system. Bear in mind that the window has to be installed in such a way that all its edges are below the roof ridge level. The FSU smoke ventilation window is manufactured and certified in accordance with the requirements of the harmonised standard EN 12101-2:2005.

Max free ventilation area (EN 12101-2) : 0.53m2.

Features
Achieved classes as per EN 12101-2: RE 1000(+10000), SL 500, WL 1500, T(00), B300.
Maximum sash opening angle: 75° in 51 seconds under full load.
Application range in the roofs with pitches between 20° and 60° with a special flashing E_S.
Made of vacuum impregnated pinewood, double-coated with acrylic lacquer.
5 year warranty.

Please note It is most frequently applied in staircases.
