Forticrete Gemini Interlocking Concrete Roof Tile

Code:
FORTICRETE-BUZ-7908-G501

Forticrete Gemini interlocking concrete roof tiles are available in 12 colours suitable for roof pitches down to 22.5º. Forticrete manufactures Gemini interlocking concrete roof tiles for a tight interlock and a fantastic aesthetic appeal. These tiles form part of Fortic... Read More

from
£1.69 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Delivery from: 20-25 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Monday, Dec 16th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

"Brilliant service great delivery t…"

Derek Walsh

Description

Forticrete Gemini interlocking concrete roof tiles are available in 12 colours suitable for roof pitches down to 22.5º. Forticrete manufactures Gemini interlocking concrete roof tiles for a tight interlock and a fantastic aesthetic appeal.

These tiles form part of Forticrete's Ecotile range. This means these concrete roof tiles are designed and manufactured while keeping carbon dioxide emissions to a minimum, making them more eco-friendly. Combined with the fact that you need need less tiles per m2 than others, Forticrete Gemini tiles offer a 40% reduction in carbon dioxide emissions per m2.

Dimensions

Length: 270mm.
Hanging length: 243mm.
Width: 337mm.
Cover width: 316mm.
Height: 15mm.
Pitch:

22.5° to 29° pitch - 16.6/m2 (80mm min. headlap / 190mm max. batten spacing).

22.5° to 29° pitch - 18.1/m2 (95mm max. headlap / 175mm min. batten spacing).

30° to 70° pitch - 16.3/m2 (75mm min. headlap / 195mm max. batten spacing).

30° to 70° pitch - 18.1/m2 (95mm max. headlap / 175mm min. batten spacing).

Batten size:

38mm x 25mm for spans up to 450mm.

50mm x 25mm for spans from 450mm x 600mm.



Please note that deliveries to Scotland for this product will incur additional delivery charges.

Details

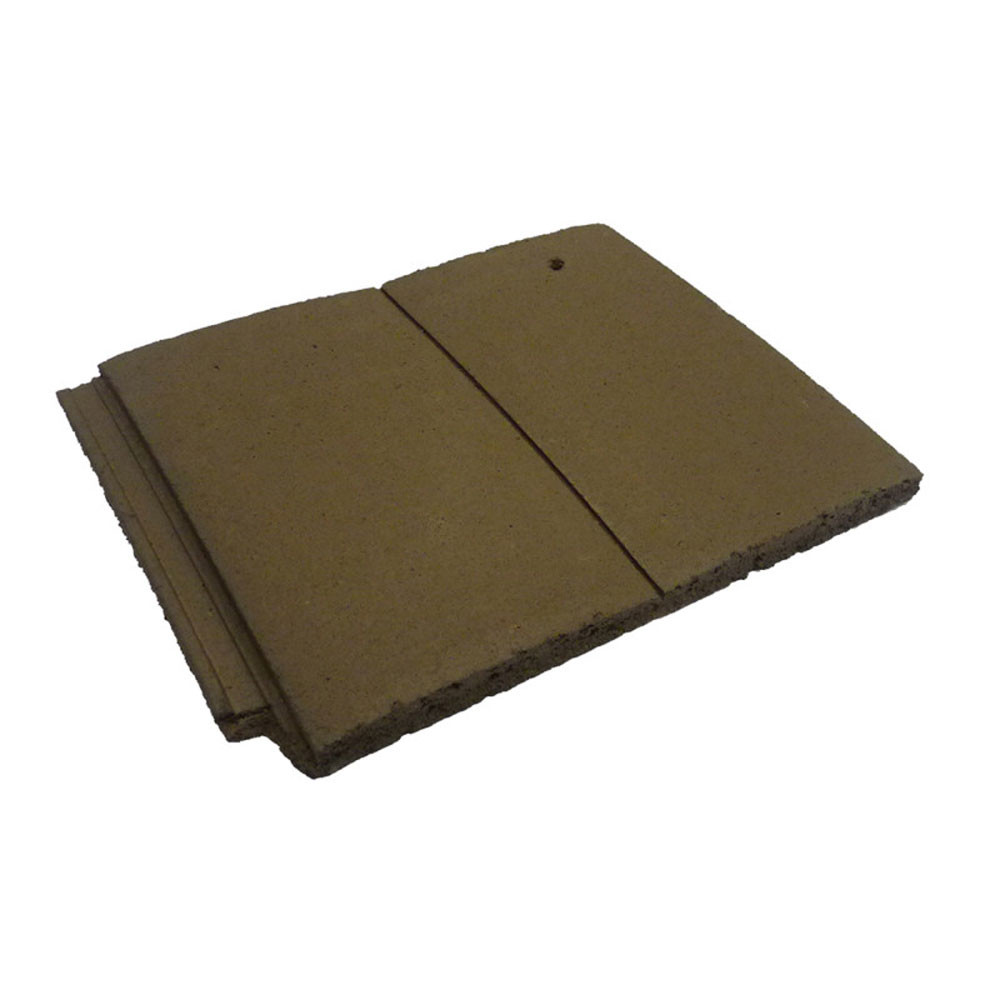

Colour Brown
Red

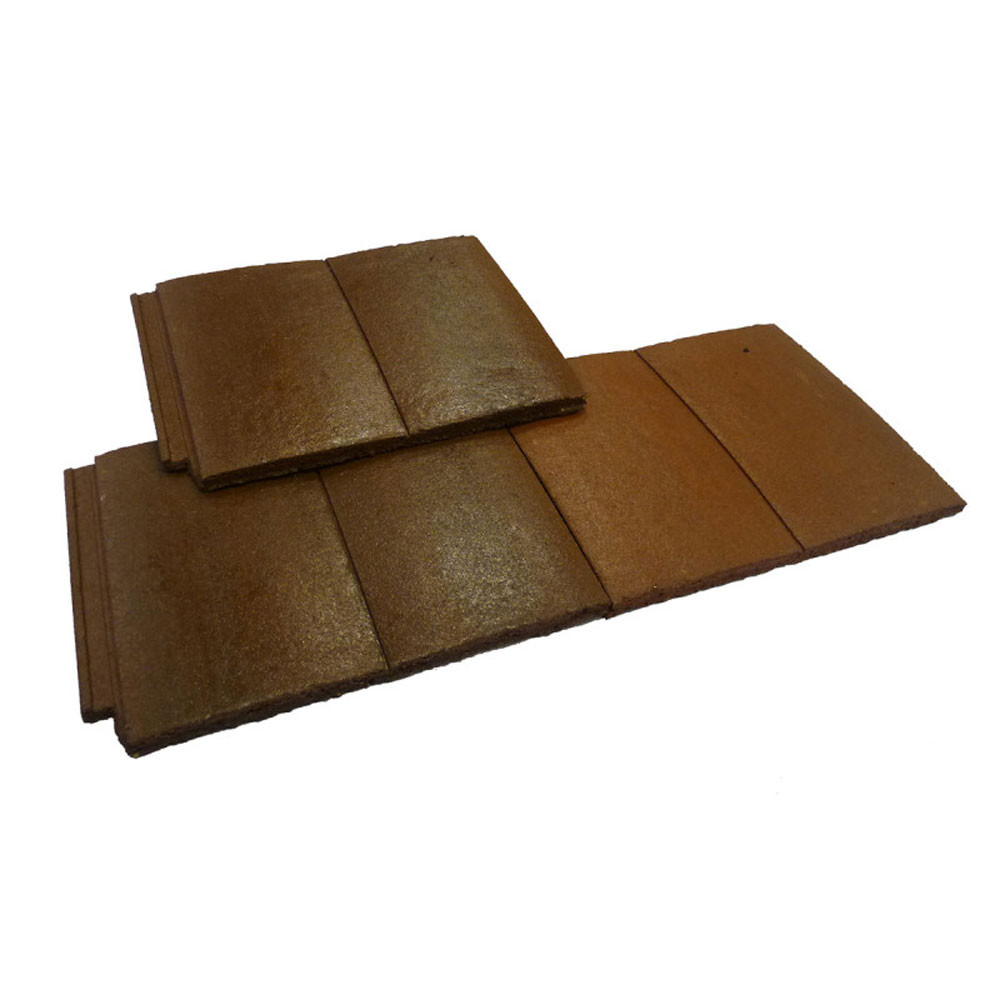

Russet Mix

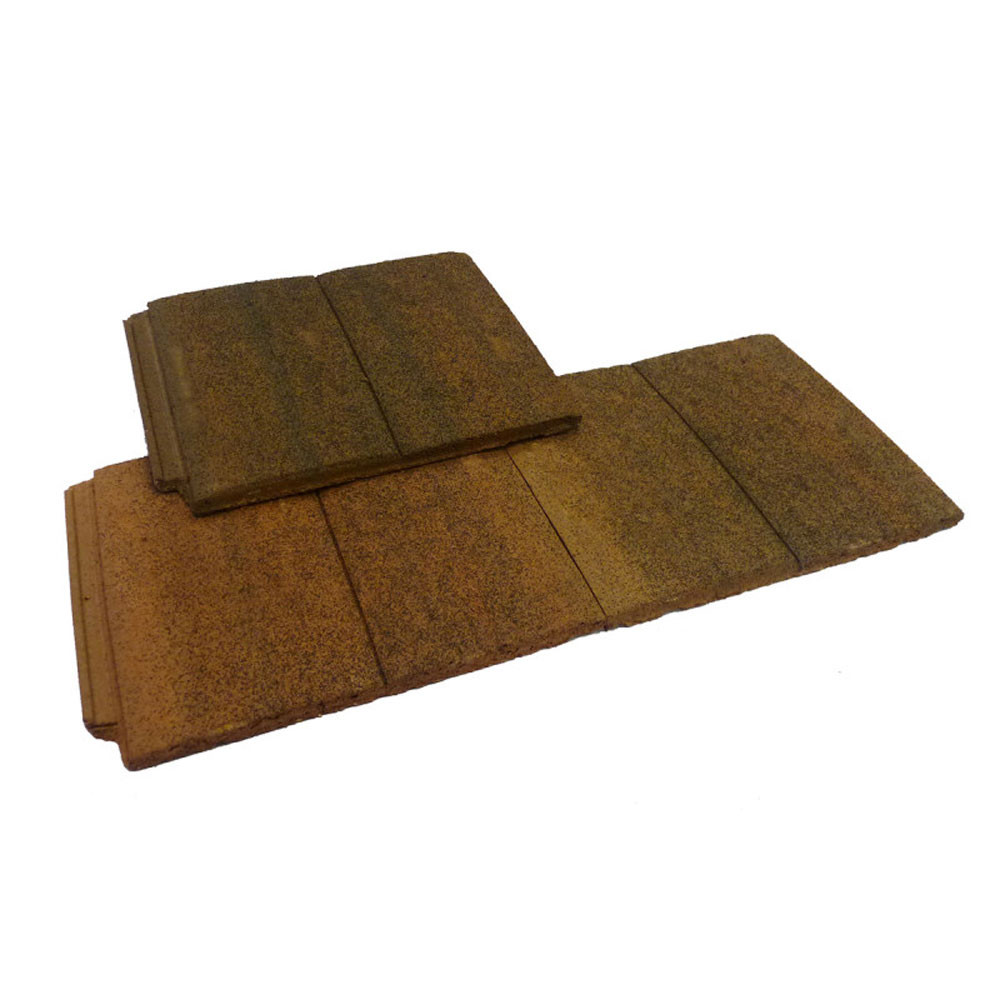

Sandfaced Ember Blend

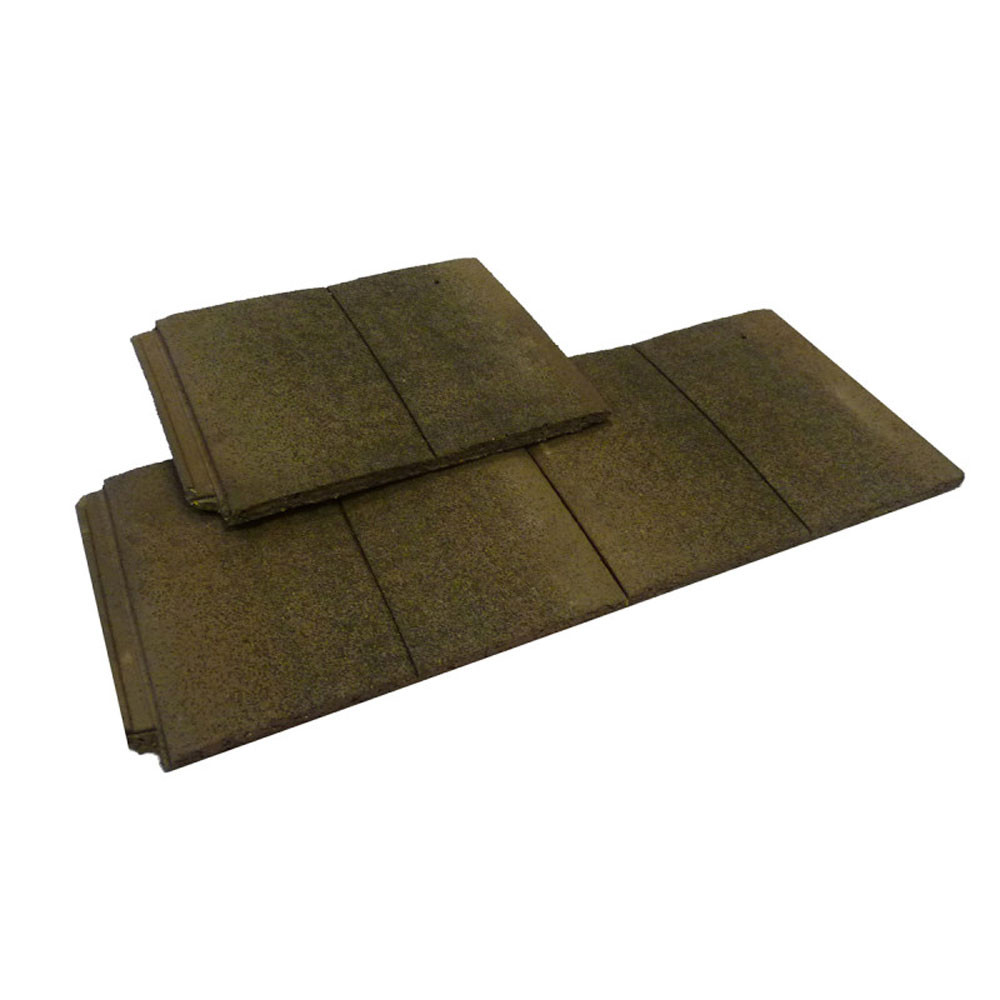

Sandfaced Mercia Blend

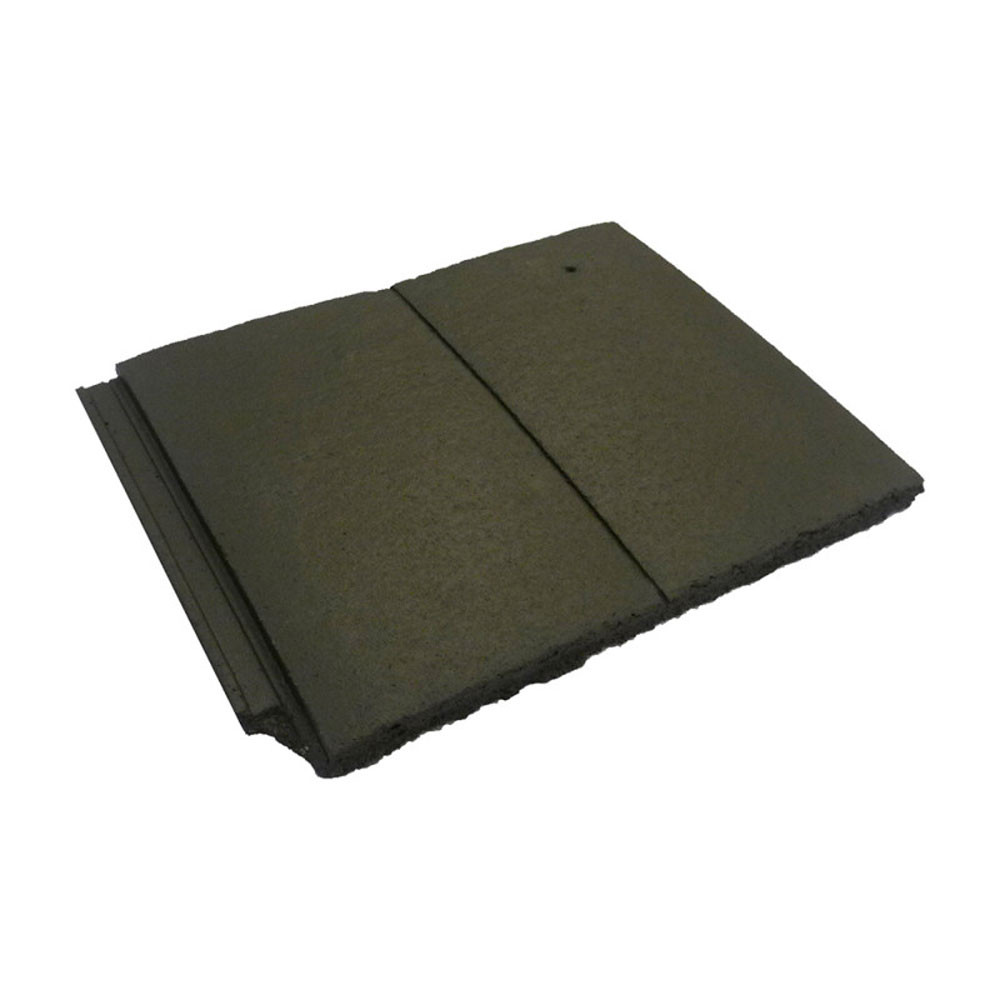

Slate Grey

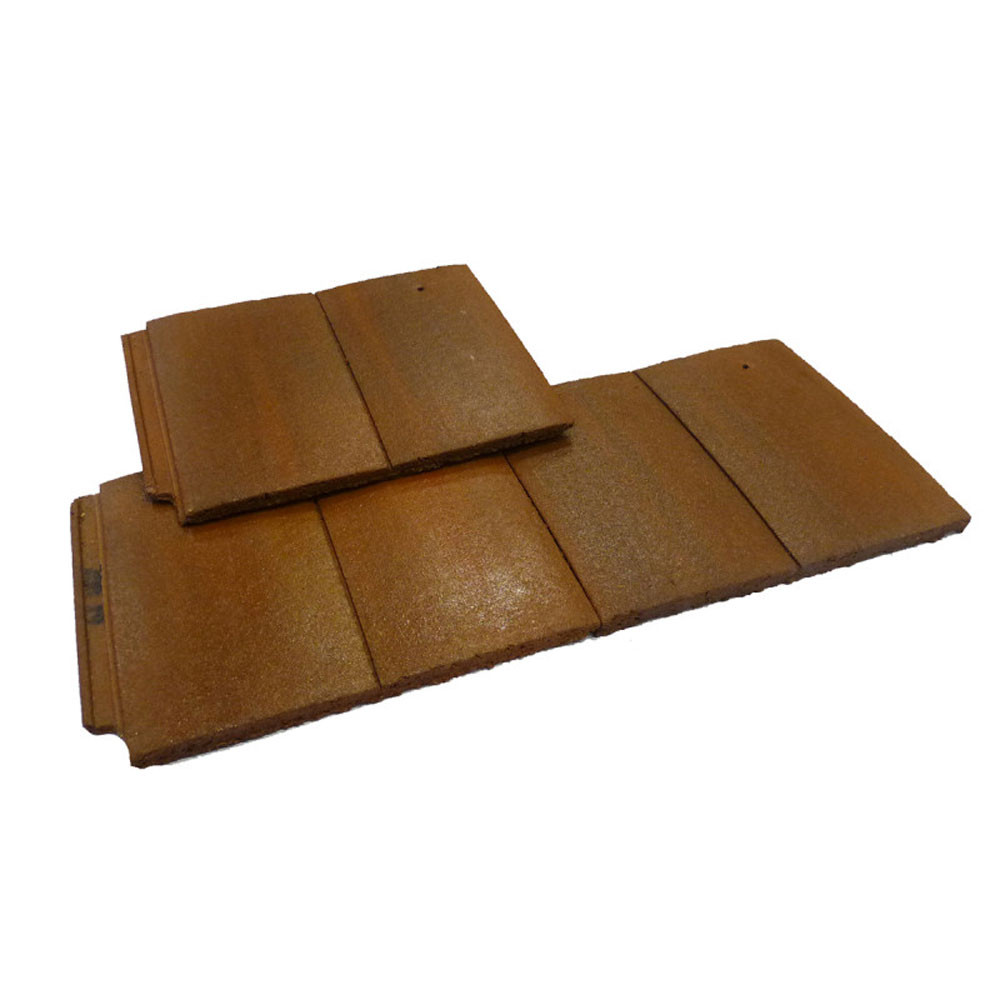

Sunrise Blend
Material Concrete Profile Gemini Interlocking Minimum Pitch 22.5 Degrees
30 Degrees
Maximum Pitch 70 Degrees
29 Degrees

Downloads

There are no product downloads to show.

Questions & Answers

Question:

Which dry verge system do you use with this tile

Answer:

you will need this link

https://www.roofingsuperstore.co.uk/product/forticrete-gemini-and-minislate-dry-verge-pack-of-15.html

Question:

How many tiles are there in m2

Answer:

Depends on the pitch, please see below.

Pitch: 22.5° to 29° pitch - 16.6/m2 (80mm min. headlap / 190mm max. batten spacing).



22.5° to 29° pitch - 18.1/m2 (95mm max. headlap / 175mm min. batten spacing).



30° to 70° pitch - 16.3/m2 (75mm min. headlap / 195mm max. batten spacing).



30° to 70° pitch - 18.1/m2 (95mm max. headlap / 175mm min. batten spacing).

Question:

Where can I see the colours?

Answer:

The different colours are pictured so if you change the colour on the drop down menu, you will see the colours in the image on the listing change accordingly.

Question:

Can you get this product in grey?

Answer:

Yes please find a link to the grey option below.

https://www.roofingsuperstore.co.uk/product/forticrete-gemini-interlocking-plain-tiles-slate-grey.html

Question:

What gauge do they go on

Answer:

The batten gauge varies depending on pitch you are installing at. 22.5° to 29° pitch - 16.6/m2 (80mm min. headlap / 190mm max. batten spacing). 22.5° to 29° pitch - 18.1/m2 (95mm max. headlap / 175mm min. batten spacing). 30° to 70° pitch - 16.3/m2 (75mm min. headlap / 195mm max. batten spacing). 30° to 70° pitch - 18.1/m2 (95mm max. headlap / 175mm min. batten spacing).
