This Hambleside Danelaw 3-in-1 Eaves Ventilation Pack offers a generous 6m² of coverage per pack and an impressive 25,000mm² of airflow per metre. This comprehensive ventilation solution also doubles as a support system, ensuring added safeguarding for the intricate details of... Read More
SUPER Rewards Earn points and build more across our SUPERSTORES!
Find out more
Pay in 3 interest-free payments of £0.00
Learn more

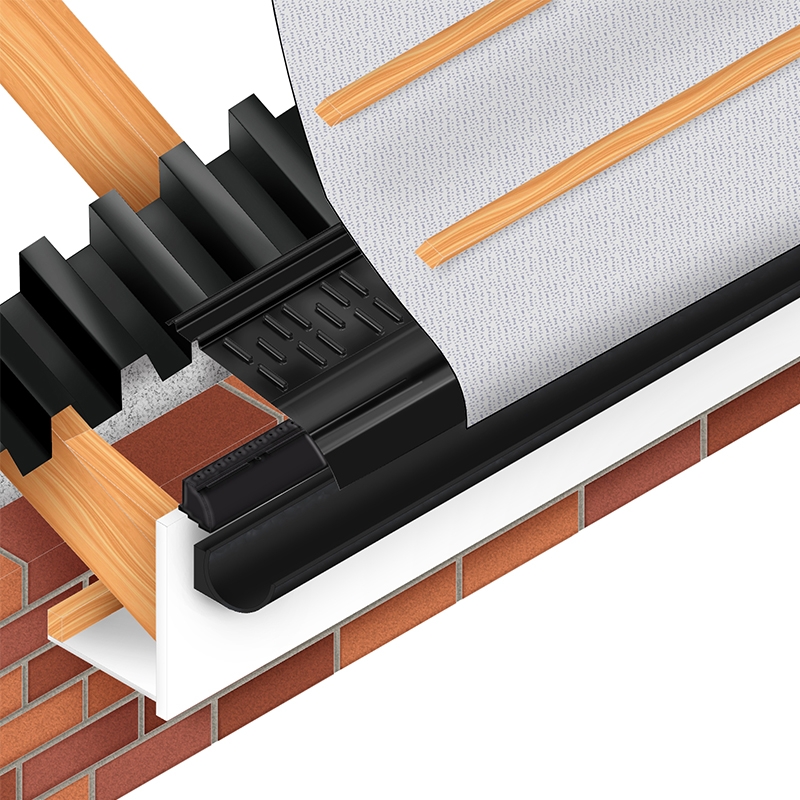

This Hambleside Danelaw 3-in-1 Eaves Ventilation Pack offers a generous 6m² of coverage per pack and an impressive 25,000mm² of airflow per metre. This comprehensive ventilation solution also doubles as a support system, ensuring added safeguarding for the intricate details of any roof type.
Featuring dual fixing positions, the innovative universal over-fascia vent accommodates airflow areas of 10mm and 25mm. With an easy installation process, you can simply attach the over-fascia vent to the fascia board’s top edge in one of the two stepped positions based on your desired airflow level. Follow up by seamlessly fitting the roll panel and underlay support tray into place.
The underlay support tray rests atop the over-fascia vent and is securely fastened through the vent’s provided holes. Additional stability can be achieved by nailing it to the rafter through the top of the tray if needed. You can maintain a watertight seal with consecutive trays, which overlap by 50mm, utilising the raised locators on the tray sides. The underlay support tray ingeniously directs water into the gutter, ensuring effective drainage.
Question:
How can this be used with a Scottish sarking and slate constructed roof
Answer:
The Hambleside Danelaw 3 in 1 Eaves Ventilation Pack is quite versatile and can be used with many types of roofs, including Scottish sarking and slate constructed roofs. Installation involves fitting the over fascia vent to the top edge of the fascia board at the required level of airflow. The underlay support tray is then placed on top of the over fascia vent and nailed into place through holes provided in the vent. It can also be nailed at the top of the tray through the roll panel into the rafter. The trays are lapped by 50mm using the raised locators formed into the tray sides. The underlay support tray also forms the drip into the gutter. Please ensure you follow the specific guidelines for installation on your type of roof to ensure you achieve proper ventilation. If you need more specific guidance, it might be a good idea to consult with a roofing professional or contact our customer service team for further assistance.
