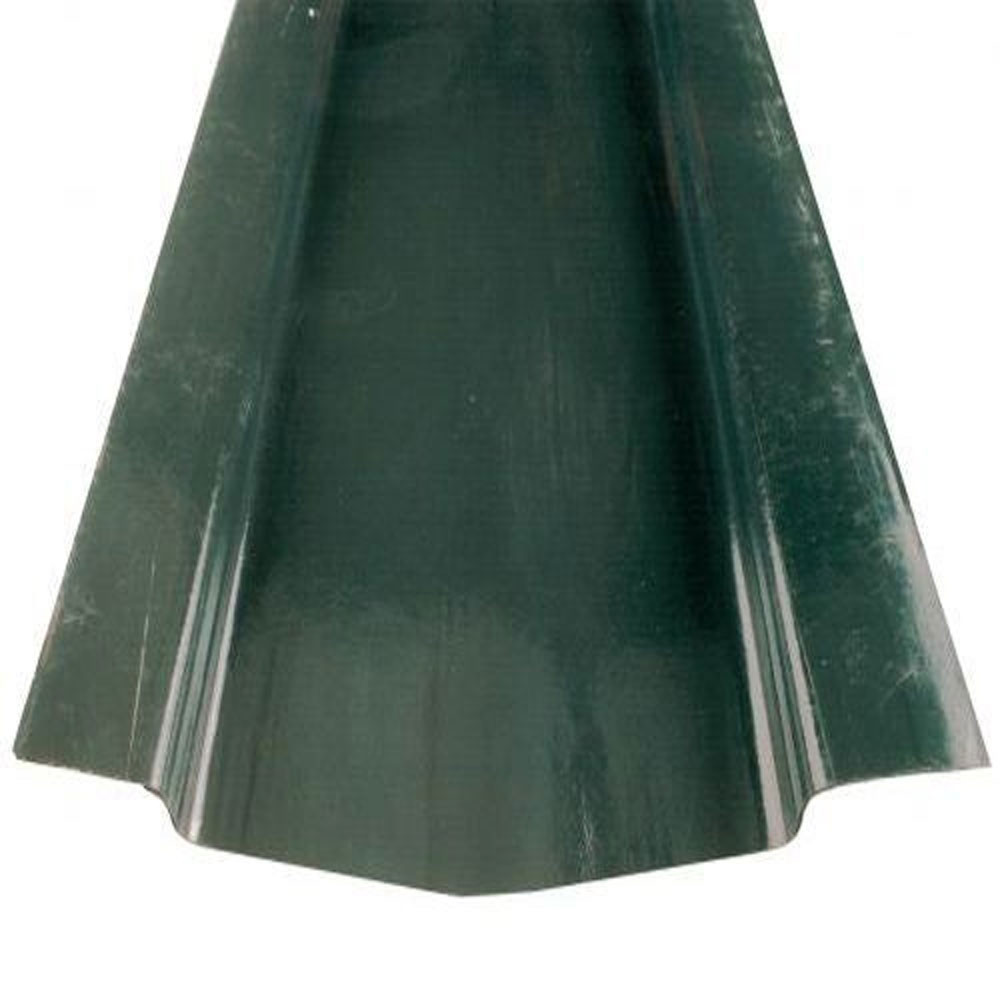

The Corodrain B Type Valley Trough is for use with double lap slates and tiles, which are dry bedded. There is a standard (type:HB) and heavy duty (type:BX) option. The valley fixes over the batten for fast and simple installation.
Suitable for use on roofs with pitches from 17.5° to 55°.
Can accommodate a maximum difference between two rafter pitches of 15°.
Designed for use with natural slate, manufactured slate and plain tiles.
Length: 3m.
Width: 330mm.
Weight: 1.83kg per m2.
Thickness: 1.3mm.
Colour: grey / blue.
Material: GRP - high quality unfilled polyester resin with glass fibre reinforcement.
Roof area less than 25m2 | Roof area 25m2 to 100m2 | ||||
Rafter Pitch | Valley Type | Max. Valley Length | Valley Type | Max. Valley Length | Minimum Lap Length |
17.5-22° | B / D | 7m | - | - | 350mm |
22.5-29° | A / B / D | 7m | B / D | 14.5m | 300mm |
30-34° | A / B / D | 7.5m | B / D | 15m | 200mm |
35-39° | A / B / D | 7.5m | B / D | 15.5m | 200mm |
40-44° | A / B / D | 8m | B / D | 16.5m | 150mm |
45-49° | A / B / D | 8.5m | B / D | 17m | 150mm |
50-55° | B / D | 9m | B / D | 18.5m | 150mm |
