Lindab Airy Valve Front Plate 100mm (Multiple Designs)

Product Code:
AIRYFP
Brand:
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Description

Colour - RAL9003 - Signal White

Please state in the special Instructions during the checkout on which design you would like;
ROUN – Circular
BOW – Square with curved sides.
SQUA – Square
ELLI – Elliptical.
RECT – Rectangular

Lindab Airy is designed for installation in walls or ceilings.

It can be used for new-build and refurbishment.

Its smart grip function ensures easy installation.

Its unique sound data ensure optimum low sound levels.

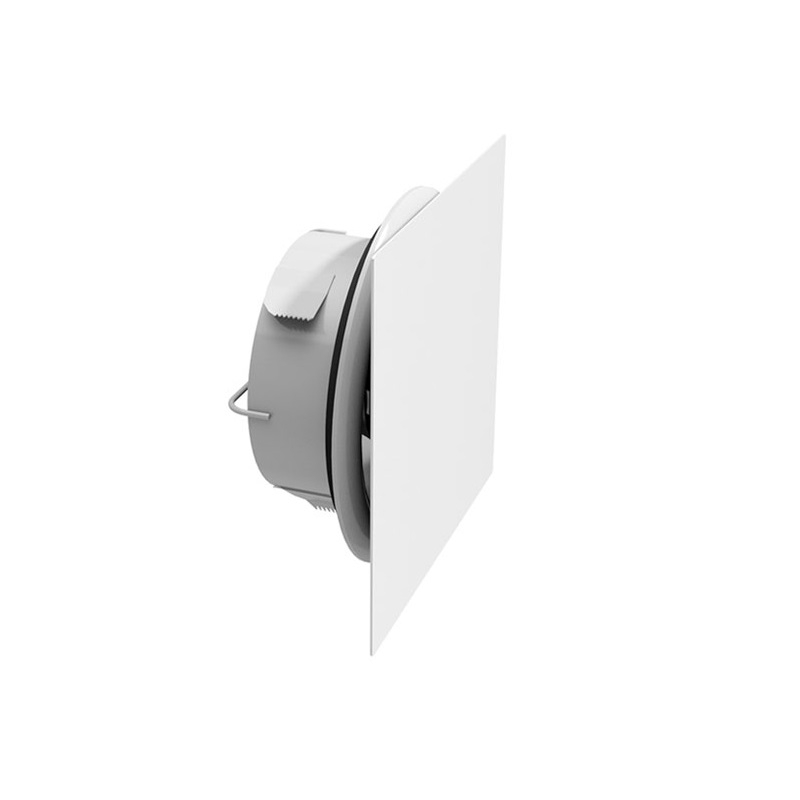

The valve consists of two parts; the valve body (AIRYB) and the flat front plate (AIRYFP).

The valve body is fixed to the duct system via flexible spring retainers.

The front plate is attached to the valve body via spring clips.

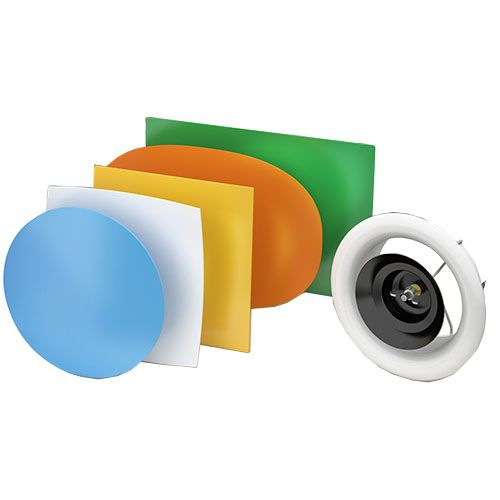

There are 5 available front plate shapes:
ROUN – Circular
BOW – Square with curved sides.
SQUA – Square
ELLI – Elliptical.
RECT – Rectangular

It is recommended that Lindab Airy is mounted in the Lindab air valve frame ILVRU. The product will also fit in the valve frames VRGU, VRGM, VRFU, VRFM and Lindab products BU GJUT, and TCPU GJUT.

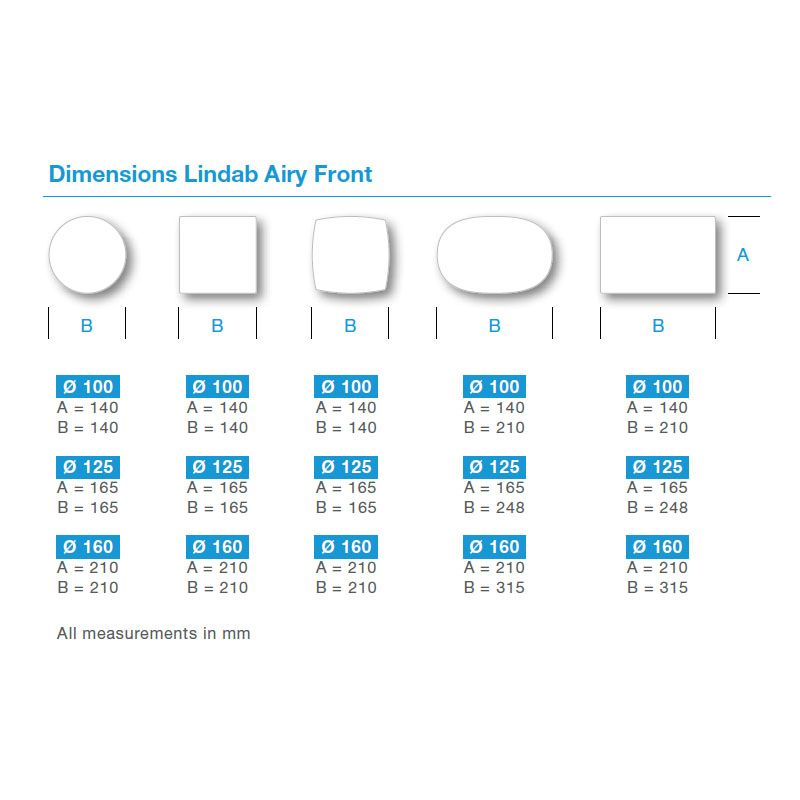

The valve body needs to cover the outer circumference of the product into which it is fitted. Therefor the maximum outer diameter of any receiving product is Ø100 - 133,5 mm, Ø125 - 152,5 mm and for Ø160 - 187,5 mm.

Lindab Airy is an effective design ventilation valve which makes it possible for property owners to give their decor a lift and at the same time create a better indoor climate. The valve, which has an almost silent airflow, is quick and easy to install in existing and new systems.

The valve is designed for installation at a wall or in a ceiling. It can be used for new-build and for replacement. Its smart grip function ensures an easy installation. Its unique sound data ensure an optimum sound level. The valve consists of two parts; the valve body (AIRYB) and the flat front plate (AIRYFP). The valve body is fixed to the duct system or a valve socket via flexible spring wings. The front plate is attached to the valve body via springs.

​- The only visible parts in residential ventilation systems are the valves. So why not make them an exciting part of the decor? That was our starting point when we developed Lindab Airy. The fact that we at the same time created a truly effective valve with a superb sound power level made matters even better, says Concept Manager Jan Hesel.
Lindab Airy consists of a body which is available in three standard sizes. It’s easy to mount in the ventilation duct and the valve front is quickly clicked into a fixed position. The front end panels come in five different shapes and are available in any color, metal or with a raw surface which can then, for example, be wall papered.

A low sound level is key for satisfied residents. Therefore the sound power level value was an important part of the development process. When Lindab Airy was tested in Lindab's sound lab, the results were beyond expectations.



Details

Diameter 100mm
