Manthorpe GW291-SBS Intermediate Tray RH - 448mm

Product Code:
GW291-SBS
Est. Delivery: 2-3 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

£7.84 Incl. VAT
Oops! Please select from the options

Description

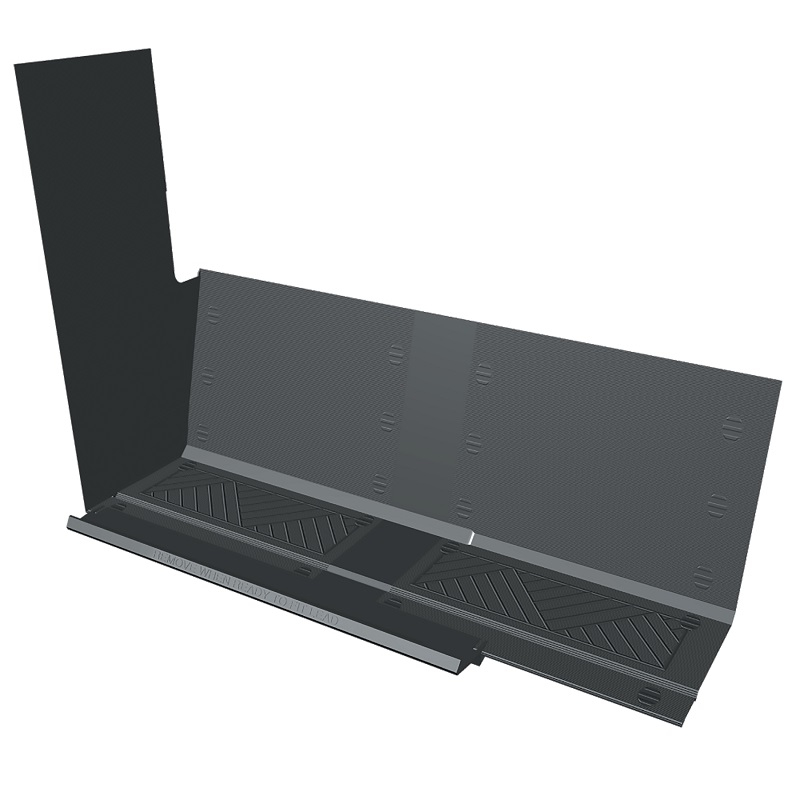

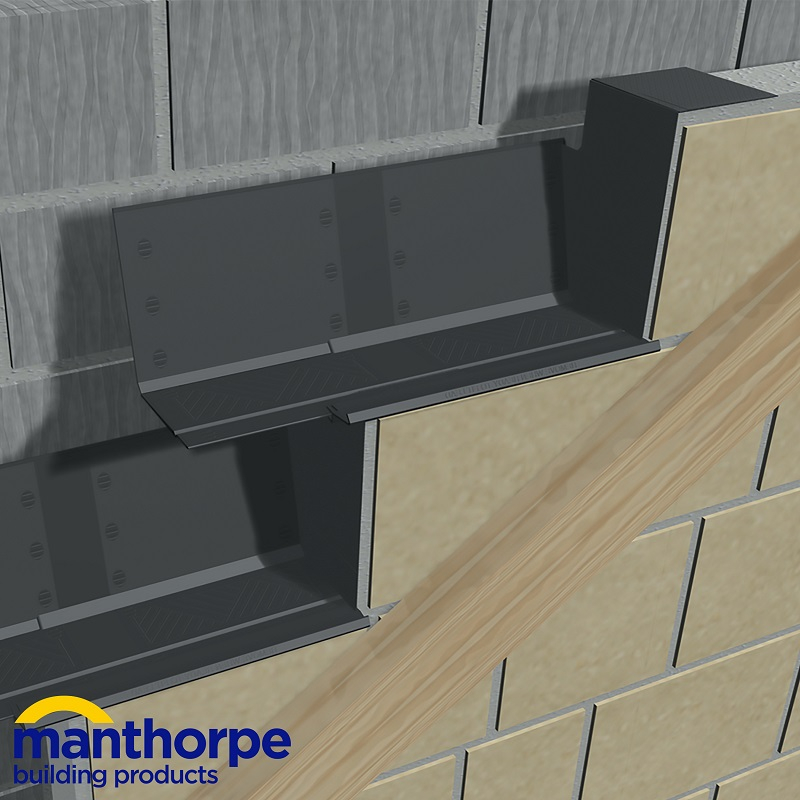

Manthorpe's right-handed Short Block GW291-SBS Intermediate Tray has been developed for situations where irregular blockwork or stone is specified. Featuring an upstand at only one end, the GW2191 SBS suits larger course heights, typically 150mm, 225mm in either stonework or blockwork. This helps water run out of the tray and down the cavity system.

The flexible perpend protector attached to the tray prevents driving rain from penetrating the exterior wall and tracking across the masonry. The tray has a unique front mortar clip that you can remove at any time once the mortar has set, leaving a 25mm deep aperture into which the lead is inserted and secured with lead wedges.

Features & Benefits: Manthorpe GW291-SBS Intermediate Tray RH - 448mm

  • Right Handed Tray
  • Flexible perpend protector
  • Easy to install
  • Designed for larger course heights
  • Removable mortar strip for lead placement
  • Length: 448mm
  • Roof Pitch (225mm Coursing): 35-55 Degrees
  • Roof Pitch (150mm Coursing): 25-50 Degrees

Please note:

  • Do not fit the trays into the nearest perp end, blockwork will need to be cut to achieve correct pitch, but will be hidden by the lead flashing.
  • Do not dry bed the trays, lay on a thin skim of mortar.

Details

Colour Black Material Polypropylene
