Manthorpe GW293CCLH Corner Catchment Tray LH

Code:
GW293CCLH
Brand:
Manthorpe

This GW293CCLH Left Hand Corner Catchment Tray in Black offers an ideal solution for corners where an abutment ends, guarding against water infiltration. Created for spaces where conventional trays face constraints, it boasts upstands at both ends, ensuring efficient collectio...Read More

View full product details
View questions about this product
£6.52 Incl. VAT
Oops! Please select from the options
Est. Delivery: 2-3 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Tuesday, Apr 23rd - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

View full product details
View questions about this product
Create a wishlist

"First class service"

Mr Patrick Higginbottom
Description Specification Downloads Q&A

Description

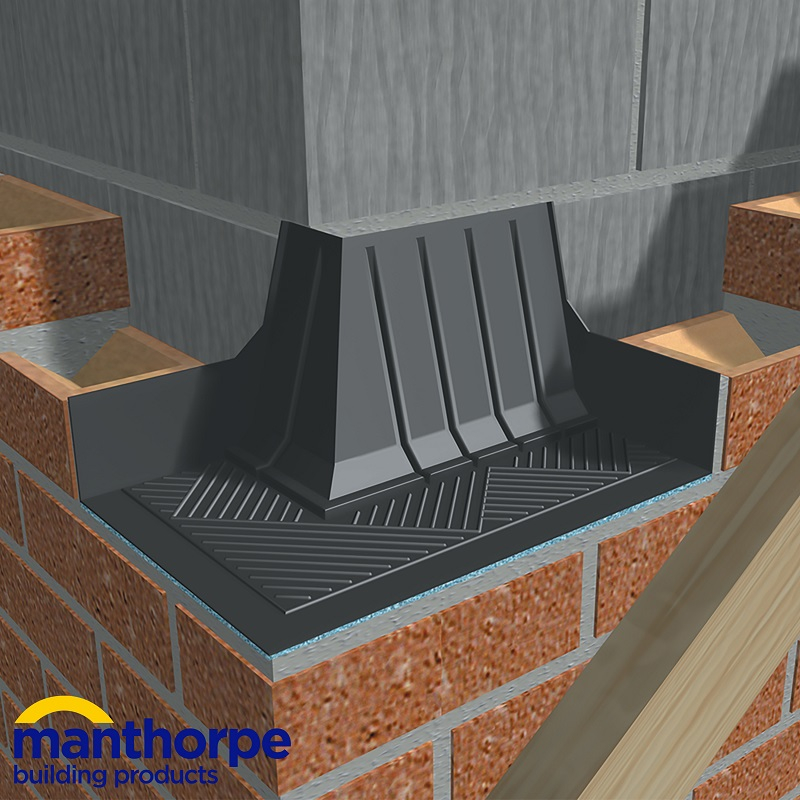

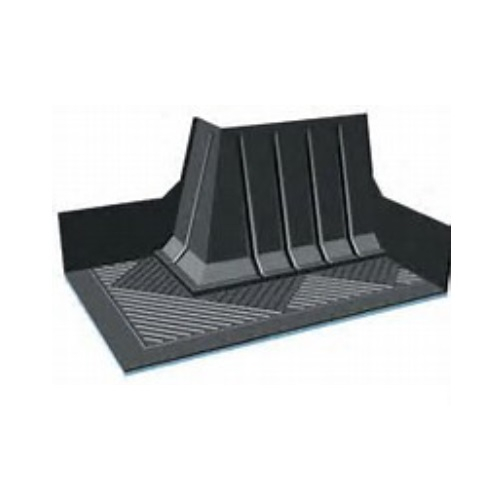

This GW293CCLH Left Hand Corner Catchment Tray in Black offers an ideal solution for corners where an abutment ends, guarding against water infiltration. Created for spaces where conventional trays face constraints, it boasts upstands at both ends, ensuring efficient collection and diversion of water cascading down from the trays above.

Designed for ease of use, this GW293CCLH Catchment Tray comes equipped with a foam strip that can be effortlessly raked out, revealing a 25mm deep aperture. Into this opening, the lead is seamlessly inserted and secured with lead wedges, providing a reliable shield against water intrusion. This preformed tray ensures rigidity within the cavity, offering a hassle-free solution for moisture management. To complete your installation, the essential G950 Weep Vent works with the tray to channel collected water away effectively.

Features & Benefits: Manthorpe GW293CCLH Corner Catchment Tray LH

  • Ideal for corner abutments to prevent water entry
  • Integral upstands/stop ends at both ends efficiently collect and divert water from trays above
  • Foam strip for easy lead insertion (25mm deep aperture) and secure attachment with lead wedges
  • Requires G950 Weep Vent for drainage of moisture onto the roof
  • Preformed tray ensures rigidity within the wall cavity
  • 330mm length, 214mm height, 75mm (brickwork) coursing height and 102.5mm bed size
  • Suitable for pitch ranges of 17.5° to 50°

With dimensions of 330mm in length, 214mm in height and a coursing height of 75mm for brickwork, this corner catchment tray is a reliable choice for maintaining a dry and secure environment.

Please note:

  • This tray is also available with either short or long lead, firmly attached with staples and sealant, in code 4, code 5 (Special Order) lead, or a lead replacement.
