Marley EcoLogic Ludlow Major Interlocking Concrete Roof Tile Nimbus Grey - Pallet of 216

Product Code:
MA17784
Brand:
Est. Delivery: TBC
Shipping costs displayed in basket.

This item is out of stock and not available to purchase.

We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

£337.98 Incl. VAT
Oops! Please select from the options

Product Description

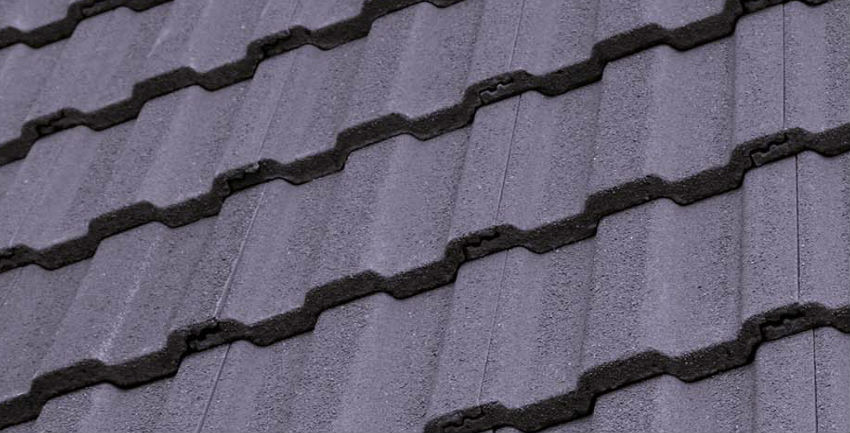

The EcoLogic Ludlow Major from Marley is an innovative and unique concrete roof tile that improves air quality by absorbing harmful atmospheric pollutants (NOx) that can cause respiratory problems and contribute to smog in built-up areas. Made from around 50% recycled materials’ the Ecologic Ludlow Major is part of Marley’s sustainable building solutions, making it one of the most environmentally beneficial roofing products in the market.

The EcoLogic Ludlow Major has a popular profile that is seen across a wide range of developments and is ideal for refurbishment. The strong, simple lines enhance the contrast between light and shade falling on the tile.

EcoLogic has a unique granule finish, with surface layers of granule and cement slurry coating mixed with titanium dioxide. The coating works as a photocatalyst stimulated by sunlight to remove both forms of nitrogen oxide.

Why Concrete Interlocking Tiles?

The concrete interlocking tile is a modern alternative to the standard plain tile. It is greatly admired for its smooth appearance. Additionally, concrete interlocking tiles have a lower environmental impact, are easier to install and are much more budget friendly – all the while being sturdier with the use of concrete material!

Product Specification

Pallet Quantity: 216

Colour: Nimbus Grey

Minimum Pitch: 30° Granular

Maximum Pitch: 90°

Size: 420mm x 330mm

Tile Thickness: 25mm (nominal)

Covering Capacity (Net, Roof)
9.8 tiles/m2 at 75mm headlap
10.6 tiles/m2 at 100mm headlap

Weight of tiling per m² (approx, roof):
45kg/m2 (0.44 kN/m2) at 75mm headlap
49kg/m2 (0.48kN/m2) at 100mm headlap

Tile Nails: 55mm x 3.35mm

Minimum Headlap (roof): 75mm

Maximum gauge (roof): 345mm

Battens required (net, roof):
2.9 lin.m/m2 at 75mm headlap
3.1 lin.m/m2 at 100mm headlap

Batten size recommended:
38mm x 25mm for rafters/supports not exceeding 450mm centres (fixed to BS 5534)
50mm x 25mm for rafters/supports not exceeding 600mm centres (fixed to BS 5534)

Product Documents

There are no product documents to show.

Details

Size 330mm x 420mm Finish Granulated Colour Nimbus Grey Material Concrete
Profile EcoLogic Minimum Pitch 30 Degrees Maximum Pitch 90 Degrees
