Marley Modern Interlocking Concrete Roof Tile - Pallet of 192
Please select a different option or call 01752 692 760.
Product Description

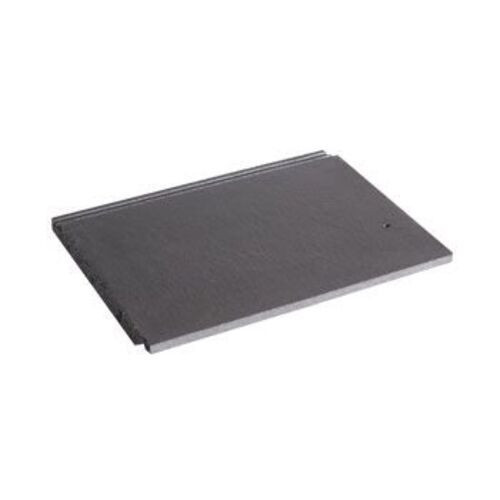

The Modern concrete interlocking roof tile from Marley has a smooth, single lap design and slate like appearance that is enhanced by the necessary broken bond laying pattern. It’s excellent covering capacity makes the Modern concrete tile an affordable roofing solution that is a great alternative to slate.
Why Concrete Interlocking Tiles?
The concrete interlocking tile is a modern alternative to the standard plain tile. It is greatly admired for its smooth appearance. Additionally, concrete interlocking tiles have a lower environmental impact, are easier to install and are much more budget friendly – all the while being sturdier with the use of concrete material!
Product Specification
Pallet Quantity: 192
Colour:
Anthracite
Smooth Grey
Antique Brown
Smooth Brown
Old English Dark Red
Mosborough Red
Minimum Pitch: 17.5° Smooth / 25° Granular
Maximum Pitch: 90°
Size: 420mm x 330mm
Tile Thickness: 30mm (nominal)
Covering Capacity (Net, Roof)
9.9 tiles/m2 at 75mm headlap
10.7 tiles/m2 at 100mm headlap
Weight of tiling per m² (approx, roof):
50kg/m2 (0.49 kN/m2) at 75mm headlap
54kg/m2 (0.53kN/m2) at 100mm headlap
Tile Nails: 50mm x 3.35mm
Minimum Headlap (roof): 75mm
Maximum gauge (roof): 345mm
Battens required (net, roof):
2.9 lin.m/m2 at 75mm headlap
3.1 lin.m/m2 at 100mm headlap
Batten size recommended:
38mm x 25mm for rafters/supports not exceeding 450mm centres (fixed to BS 5534)
50mm x 25mm for rafters/supports not exceeding 600mm centres (fixed to BS 5534)
Product Documents
Specifications
Dimensions
Details
Antique Brown
Smooth Brown
Smooth Grey
Mosborough Red
Old English Dark Red Material Concrete Profile Modern
Products We Recommend
Questions & Answers
Question:
How many tiles in a square meter
Answer:
Covering Capacity (Net, Roof)
9.9 tiles/m2 at 75mm headlap
10.7 tiles/m2 at 100mm headlap
Question:
Hi I am Lionel Winston and had Marley Interlocking tiles fitted to my new house in 2012. I am considering having Solar Panels fitted and would very much like to know if there are any special difficulties to be considered when lifting the tiles for fitting the panels if indeed it's possible. I was told by my architect that these tiles would last a lifetime if left alone. Regards Lionel
Answer:
There should be no issues fitting solar panels with these tiles, but we would suggest consulting the contractors who would be fitting the panels.
Question:
Please send sample of Marley Asmore smooth Grey tile.
Answer:
Samples of Marley tiles can be requested directly on the link below.
https://www.marley.co.uk/samples
Question:
Any guarantee with these tiles? The colour last?
Answer:
The suppliers advise the below on these...
'Typically, roof tiles are expected to last for around 60 years as the production process is very similar across manufacturers, and despite differences in the sand or coatings used, most tiles would have a comparable 60 year lifespan.
It’s important to note that a 60 year life expectancy is the expected service life of the product in normal conditions, when correctly installed. This is not a guarantee or warranty of its longevity.'
Question:
Can I use these tiles on a low pitch roof maximum 12 degree pitch?
Answer:
No, the min pitch you can use these at is 17.5°.
Question:
Is it possible to buy 1 roof tile just to match my existing tiles?
Answer:
It is not possible to purchase jusy one tile but you can request FOC samples direct from the suppliers on the link below.
https://www.marley.co.uk/samples
Question:
How many tiles do I need to cover for 18m2
Answer:
At a coverage of 10.7 tiles/m2 you would need 193 tiles, but always get a few extra in case of breakages on site.
Question:
How many tiles to a m2 please?
Answer:
Covering capacity (net)
9.9 tiles/m2 at 75mm headlap
10.7 tiles/m2 at 100mm headlap
Question:
Could you tell me how thick these are please?
Answer:
These tiles are 30mm thick.
