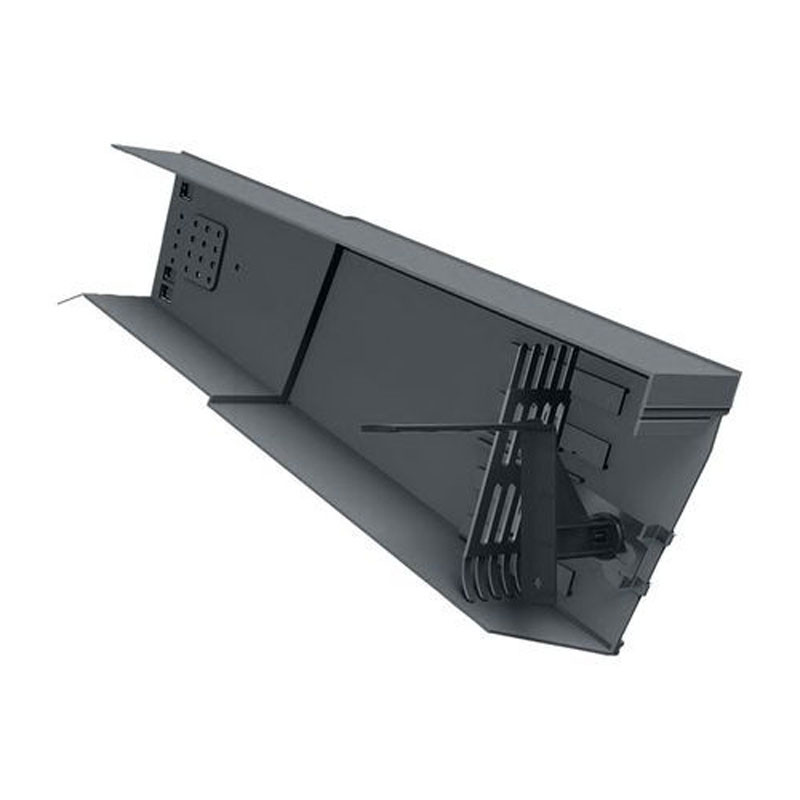

Providing a weathertight, mortar-free and strong solution for all types of the three main interlocking tiles, including large and medium standard format and large format thin leading edge, as well as the Marley Maxima and Lincoln clay pantiles, this Universal Dry Verge Unit has been designed to deliver a secure method for finishing the verge detail.
Complying with the BS 5534 requirements as a way of mechanically fixing verge tiles, this Dry Verge Unit is simple and quick to install, retaining the stepped look of a traditional mortar-bedded verge. Suitable for roof pitches from 12° up to 55°, tiles must be laid at a minimum of 287mm to a maximum of 345mm in accordance with specific tile gauge parameters. Two starter units are included within each dry verge fixing kit.
Please note:
There are no product downloads to show.
Question:
Hello What is the length of each unit?
Answer:
Each Marley Universal Left Hand Dry Verge Unit - Smooth Grey measures 320mm in length.
Question:
Is this suitable to retrofit over an existing Marley Ludlow concrete tile roof, no barge board Currently concrete along the edge of the tiles Thanks
Answer:
The Marley Universal Left Hand Dry Verge Unit is designed to work with many different types of tiles, including Marley Ludlow concrete tiles. It's a versatile product made from durable polypropylene and it can be installed on a roof pitch between 12 and 55 degrees. However, for a retrofit over an existing roof without a barge board, you might need additional components or a specific installation method. We would recommend checking with a roofing specialist or a builder to ensure proper installation.
Question:
What is the width and length of this product?
Answer:
Please have a look at this link
https://www.marley.co.uk/accessories/universal-dry-verge
Question:
Do these work with the Marley Mendip tiles?
Answer:
Yes, this would work with the mendip
Question:
Would this product be the same as Marley Eternit L/H Verge Unit - grey?
Answer:
Hi Glen
You would need to check with Marley as the "Eternit" range is no longer in production.
