Based on the classic North American timber shingle design, Metrotile Shingle is a simple and elegant solution for any roof project. Offering the rooftop quality and style for which Metrotile is renowned, Metrotile Shingle has been designed with a unique “hidden fix” system that also enables the product to double as an excellent vertical cladding solution. This is because the hidden-fix design leaves no nail exposed, preventing rainwater from corroding the nails, a common weakness of traditional vertical cladding.

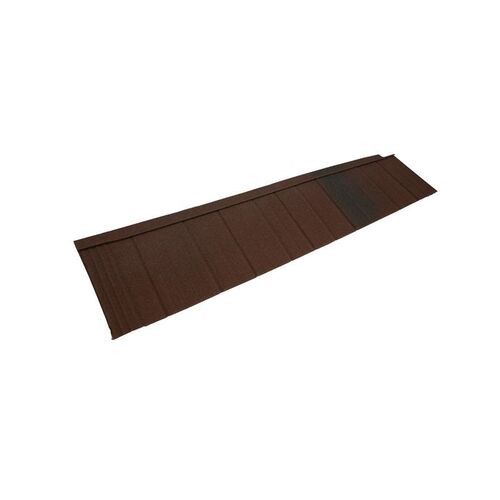

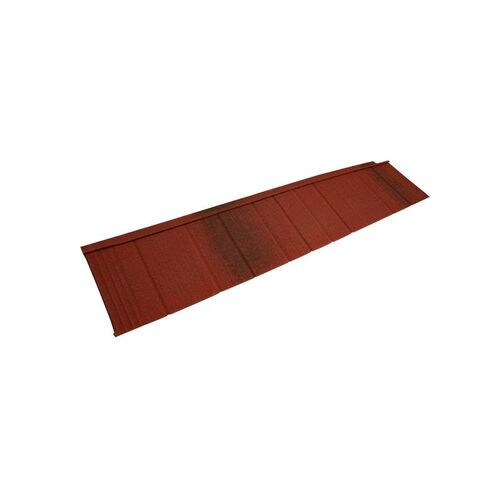

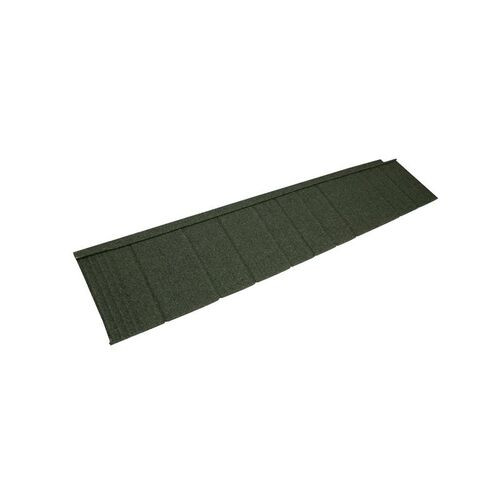

Metrotile Shingle is available in five colours, and can be fixed from vertical, down to a minimum pitch of 15°. It is the ideal profile for those looking for a simple and elegant roofing or cladding solution.

Lightweight high grade steel with aluzinc coating for incredible strength and resistance.
Comes with a 40 year weatherproof guarantee.

Properties

Minimum pitch : 15°.
Maximum pitch : 90°.

Overall size of tile : 1335mm x 300mm.
Cover size of tile : 1255mm x 250mm.
Gauge of Steel : .450mm.
Linear cover width : 1255mm.
Coverage : 0.313m2 or 3.2 tiles/m2.

Weight per m² : 6.1kg.
Weight per tile : 1.9kg.

Tile fixings : 25mm x 2.8mm coated nail - hand nailing or power tool.
Fixings per tile : 4x nails per tile.

Battens : 5 linear metres per m2 (plus wastage).
Rafter Centres (max) :
450mm - 25mm x 50mm.
600mm - 25mm x 50mm.
900mm - 50mm x 50mm.
1200mm - 50mm x 50mm.
1500mm - 50mm x 65mm.

Interlocking.
