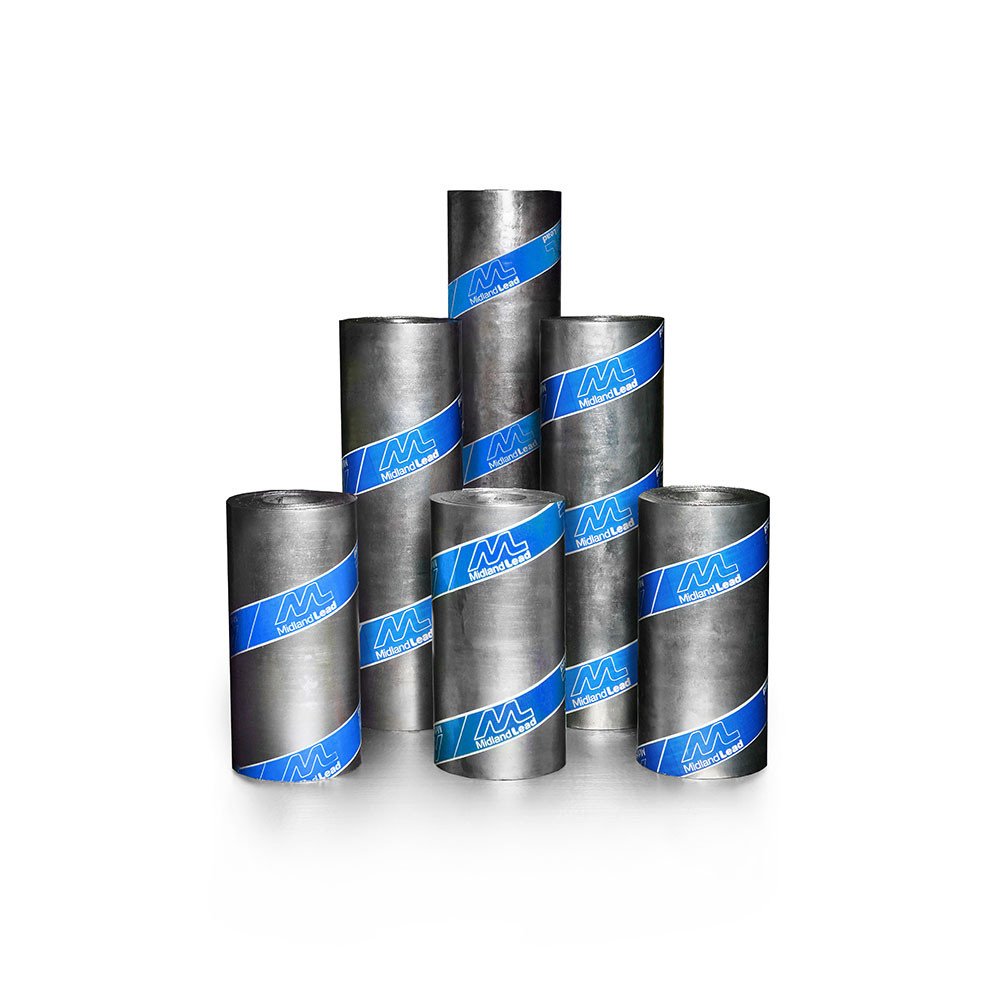

Midland Lead Code 4 Cast Lead Roof Flashing

Name: Midland Lead Code 4 Cast Lead Roof Flashing
Brand: Midland Lead
SKU: ML-C4-LEAD

Code:

ML-C4-LEAD

This item is out of stock and not available to purchase.

View alternative products

Made from Code 4 lead, this roof flashing is malleable yet durable and usually lasts over one hundred years. It is 100% recyclable, sustainable and environmentally friendly as well as stylish, cost-effective, practical and easy to use. Available in a range of widths and lengths...Read More

View full product details

View questions about this product

Create a wishlist

marek sopilnik

Description

Available in a range of widths and lengths to suit your project needs, this high-quality lead sheet has been fabricated and machine cast by Midland Lead from 100% recycled raw materials and certified by the British Board of Agrément (BBA). Created by dipping a rotating water-cooled drum into a molten lead bath, this roof flashing sheet is shaped on the submerged part of the drum and peeled off at the top. It is then rolled onto spools before being cut into lead sheet rolls.

Features & Benefits: Midland Lead Code 4 Cast Lead Roof Flashing

Sustainable, environmentally friendly and 100% recyclable
Outperforms the creep resistance and strength of milled lead
BBA Certificate No. 86/1764
Code 4 lead
Machine cast
1.80mm thickness
20.4kg/m² nominal weight
Suitable for a variety of applications
Range of widths and lengths available
Typically lasts over 100 years

Both milled and cast lead are manufactured in accordance with the same permitted sizes, analysis, codes and tolerances but cast lead outperforms the creep resistance and strength of milled lead. This Code 4 lead flashing is suitable for a variety of applications including dormers, apron and cover flashings, bay tops and canopies, pitched valley gutters, hip and ridge flashing, soakers and vertical cladding.

Please note:

To avoid thermal expansion and contraction problems with lead flashing, individual flashing pieces must not surpass 1.5 metres in length. Due to temperature fluctuations, regular spaced expansion joints must be used.
When flashing flat roofs up to 10° pitch, the maximum spacing of joints with the fall must not exceed 500mm and the maximum distance between the drips must not exceed 1.5m with Code 4 cast lead.

Specification

Dimensions

Length 3000mm
6000mm Width 1000mm
150mm
180mm
210mm
225mm
240mm
300mm
360mm
390mm
450mm
600mm

Details

Lead Code Code 4 Type Lead Flashing Thickness 1.80mm
