Redland 50 Double Roman Concrete Interlocking Roof Tile

Product Code:
REDLAND-2201
Brand:
Est. Delivery: Select option below
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

from
£1.75 Incl. VAT
Oops! Please select from the options

Description

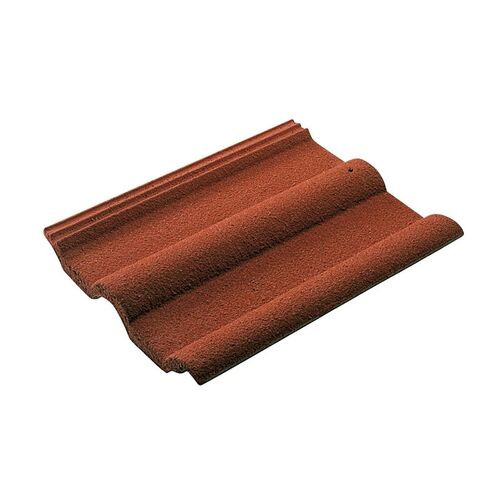

A classic interlocking concrete tile with a distinctive Roman profile, boasting a gentle roll and subtle pans. It is available in a wide range of colours, including the new Rustic Red, to blend harmoniously with any environment.

Once installed, these tiles create the look of a classic, clay double roman roof with the added advantage of being compatible with a wide range of fittings and accessories.

Properties

Size: 418mm x 330mm.
Minimum pitch:
Through coloured.
17.5° at 100mm headlap.
22.5° at 75mm headlap.
Granular.
22.5° at 100mm headlap.
30° at 75mm headlap.
Maximum pitch: 90° - subject to fixing specification.
Maximum headlap: 125mm.
Minimum gauge: 293mm.
Maximum gauge: 318mm below 22.5°.
343mm at 22.5° and over.
Tile thickness: 25mm.
Coverage: 10.5 tiles/m2 at 318mm gauge.
9.7 tiles/m2 at 343mm gauge.
Weight: 4.2 tonnes/1000.
Batten size: 38mm x 25mm - rafter centres up to 450mm.
50mm x 25mm - rafter centres up to 600mm.
Battens required: 3.15m/m2 at 318mm gauge.
2.92m/m2 at 343mm gauge.
Nail size: 60mm x 3.35mm.
Tile finish: smooth - through coloured.
Tile profile: profiled.

BBA certified.
50 Double Roman Tiles conform to BS EN 490: 2011 Concrete roofing tiles and fittings for roof covering and wall cladding - Product Specifications.

Dimensions

Size 418mm x 330mm

Details

Type Tile Finish Smooth Colour Breckland Black
Breckland Brown
Farmhouse Red
Rustic Red
Slate Grey
Terracotta
Tudor Brown
Material Concrete
Profile 50 Double Roman Minimum Pitch 17.5 Degrees

Downloads

There are no product downloads to show.

Questions & Answers

Question:

Do concrete tiles have any defects, are they all made same size exact with no flaws?

Answer:

No tiles should have any defects

Question:

which size roof please

Answer:

Coverage: 10.5 tiles/m2 at 318mm gauge.

Question:

Does the Redland 50 double roman slate grey have a smooth or granular finish ?

Answer:

Smooth finish

Question:

Good Morning. We are looking for 1000 of these in the granular finish are these available?

Answer:

Hi Darren

These are in stock - I have sent a quote to your email address

Question:

Are these tiles granulated or smooth?

Answer:

These tiles are a smooth finish.

Question:

how many tiles would I need to cover 27m2 please?

Answer:

At a coverage of 10.5 tiles/m2 you would need approx 290 to cover this area.

Question:

is this product the smooth version, as the specification says smooth, but the picture is a granulated

Answer:

We cabn confirm that the Breckland Brown will be a smooth finish.

Question:

Is the roof tiles fixed with 1 nail or 2?

Answer:

These are fixed with one nail.
