Redland Cambrian Hi-Flow ThruVent Tile Including Underlay - Slate Grey

Product Code:
10002190
Brand:
Est. Delivery: 100-110 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

£243.11 Incl. VAT
Oops! Please select from the options

Product Description

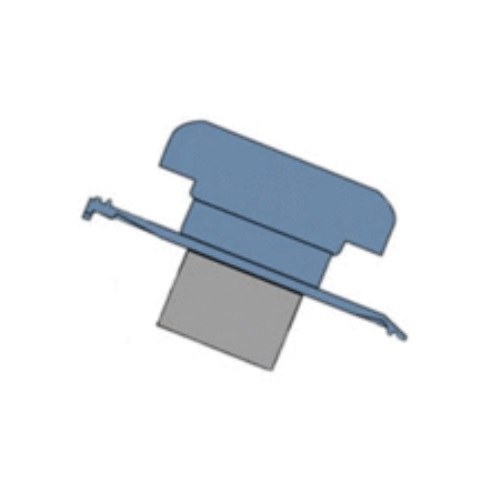

High Capacity Vent Tiles are only available for Cambrian Slates. The Hi-Flow ThruVent Tile is a means of incorporating higher levels of ventilation within the roof slope than the standard ThruVent Tile at high or low level. They can also be used for soil pipe ventilation with no restrictions in usage.

Performance

  • Minimum pitch is the minimum pitch of the slate
  • Maximum pitch 90°
  • The effective ventilation area for each Hi-Flow ThruVent Tile is 15,000 mm² for Cambrian
  • To achieve roof space ventilation of 25,000 mm²/m, Hi-Flow ThruVent Tiles should be spaced at 600 mm centres for Cambrian

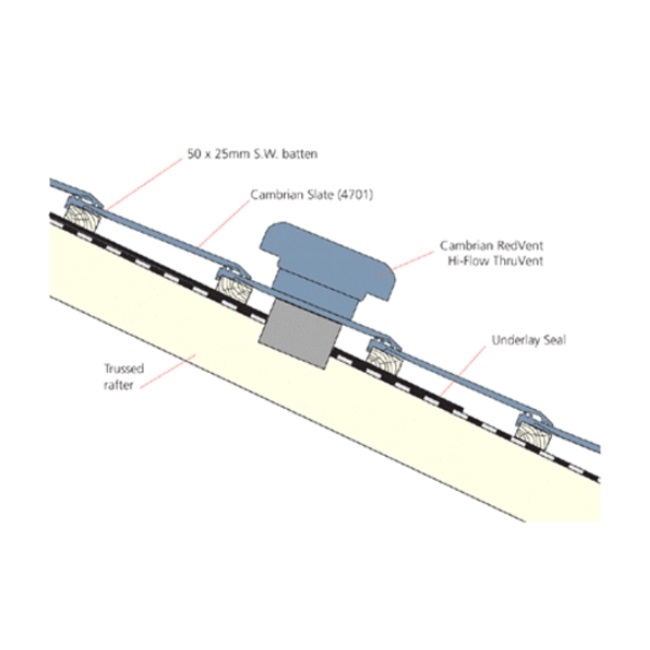

Installation

  • Suitable for roof space ventilation, mechanical extraction and soil vent termination.
  • The Underlay Seal provided should always be installed to maintain the integrity of the roofing underlay.
  • Where Hi-Flow ThruVent Tiles are used in combination with insulation between the rafters, ensure that the pipe on the underside is clear of the insulation, by cutting the pipe where necessary.
  • Hi-Flow ThruVent Tiles are not suitable for hot flue gases, please use the Gas Flue Ridge Terminal.
  • For soil pipe termination do not install within 3 m horizontally and 900 mm vertically of an opening, e.g. roof windows and roof space ventilation.

Product Documents

There are no product documents to show.

Details

Type Tile Vent Finish Smooth Colour Grey Material Natural Slate
Profile Cambrian Slate
