DuoPlain combines the classic proportions and good looks of traditional plain tiles with all the time and cost-saving benefits of a modern, large-format interlocking tile. Engineered for strength, ease of handling and ease of installation, it fulfils the three main demands ...Read More
DuoPlain combines the classic proportions and good looks of traditional plain tiles with all the time and cost-saving benefits of a modern, large-format interlocking tile.
Engineered for strength, ease of handling and ease of installation, it fulfils the three main demands of a modern roofing site. Now available in seven popular colours with the addition of our brand new Blue, DuoPlain also comes with a full range of matching fittings and accessories.

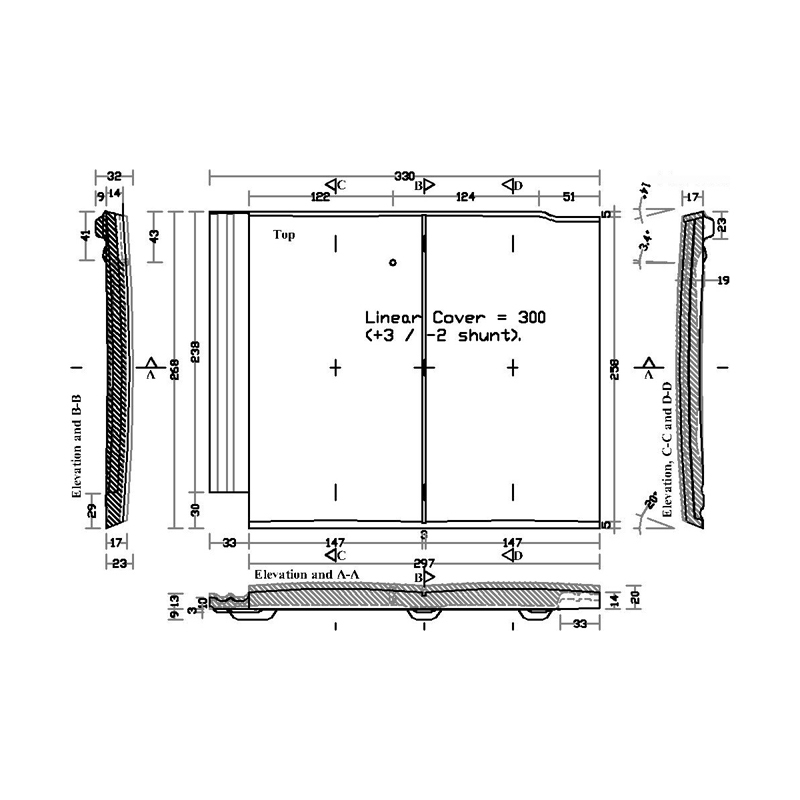

Size: 268mm x 330mm.
Minimum pitch: 25°.
Maximum pitch: 90° - subject to fixing specification.
Minimum headlap: 80mm.
95mm.
Maximum headlap: 173mm.
Minimum gauge: 188mm.
Tile thickness: 17mm.
Coverage: 17.7 tiles/m2 at maximum gauge.
Weight: 3.1 tonnes/1000.
Batten size: 38mm x 25mm - rafter centres up to 450mm.
50mm x 25mm - rafter centres up to 600mm.
Battens required: 5.26m/m2.
Nail size: 40mm x 3mm - aluminium alloy.
45mm x 3.35mm - stainless steel ring shank.
38mm x 4.2mm - stainless steel screws.
Tile finish: through coloured & painted.
BBA certified.
DuoPlain Tiles conform to BS EN 490: 2004 Concrete roofing tiles and fittings for roof covering and wall cladding - Product Specifications.
