Colour - RAL9010 - Pure White Description Lindab Airy is designed for installation in walls or ceilings. It can be used for new-build and refurbishment. Its smart grip function ensures easy installation. Its unique sound data ensure optimum low...Read More
Colour - RAL9010 - Pure White
Description

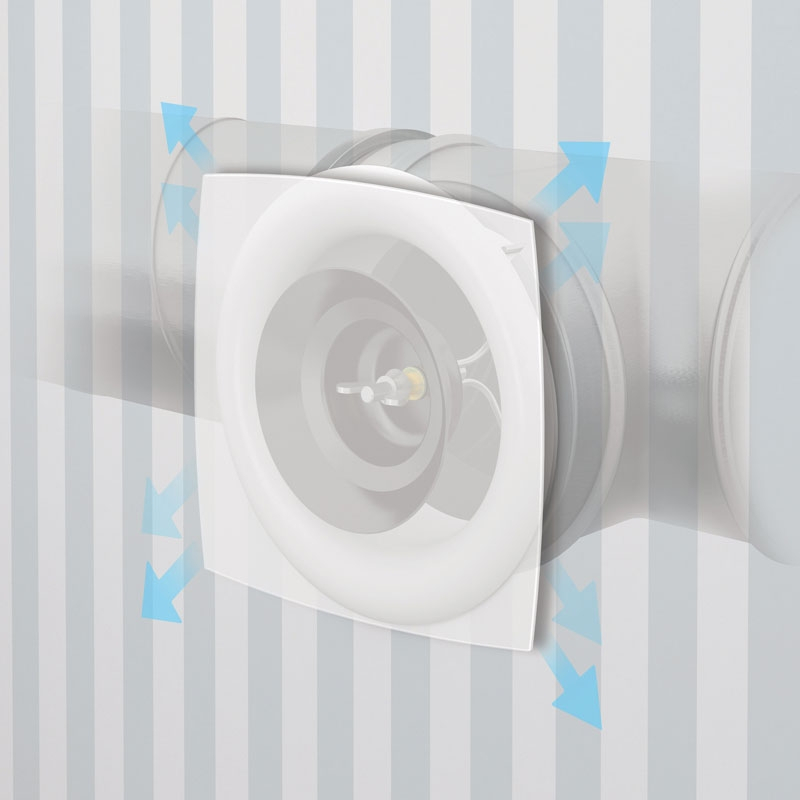

Lindab Airy is designed for installation in walls or ceilings.
It can be used for new-build and refurbishment.
Its smart grip function ensures easy installation.
Its unique sound data ensure optimum low sound levels.

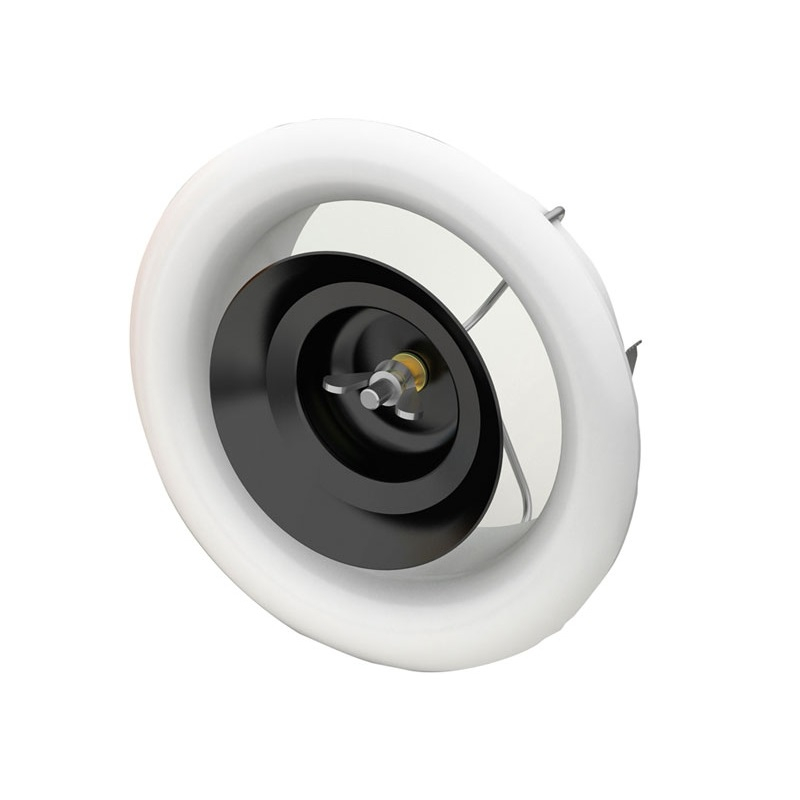

The valve consists of two parts; the valve body (AIRYB) and the flat front plate (AIRYFP).
The valve body is fixed to the duct system via flexible spring retainers.
The front plate is attached to the valve body via spring clips.
There are 5 available front plate shapes:
ROUN – Circular
BOW – Square with curved sides.
SQUA – Square
ELLI – Elliptical.
RECT – Rectangular
It is recommended that Lindab Airy is mounted in the Lindab air valve frame ILVRU. The product will also fit in the valve frames VRGU, VRGM, VRFU, VRFM and Lindab products BU GJUT, and TCPU GJUT.
The valve body needs to cover the outer circumference of the product into which it is fitted. Therefor the maximum outer diameter of any receiving product is Ø100 - 133,5 mm, Ø125 - 152,5 mm and for Ø160 - 187,5 mm.
Lindab Airy is an effective design ventilation valve which makes it possible for property owners to give their decor a lift and at the same time create a better indoor climate. The valve, which has an almost silent airflow, is quick and easy to install in existing and new systems.
The valve is designed for installation at a wall or in a ceiling. It can be used for new-build and for replacement. Its smart grip function ensures an easy installation. Its unique sound data ensure an optimum sound level. The valve consists of two parts; the valve body (AIRYB) and the flat front plate (AIRYFP). The valve body is fixed to the duct system or a valve socket via flexible spring wings. The front plate is attached to the valve body via springs.
- The only visible parts in residential ventilation systems are the valves. So why not make them an exciting part of the decor? That was our starting point when we developed Lindab Airy. The fact that we at the same time created a truly effective valve with a superb sound power level made matters even better, says Concept Manager Jan Hesel.
Lindab Airy consists of a body which is available in three standard sizes. It’s easy to mount in the ventilation duct and the valve front is quickly clicked into a fixed position. The front end panels come in five different shapes and are available in any color, metal or with a raw surface which can then, for example, be wall papered.
A low sound level is key for satisfied residents. Therefore the sound power level value was an important part of the development process. When Lindab Airy was tested in Lindab's sound lab, the results were beyond expectations.
