RynoDeck RDA Self-Levelling Adjustable Decking Pedestal

Code:
RYNODECK-RDA
Brand:

Fully supportive of up to 2100kg compression in a temperature scale from -40°C up to 120°C, this recyclable polypropylene pedestal from RynoDeck is compatible with all kinds of decking or floor joists and is self-levelling and adjustable. Allowing for height corrections, this ...Read More

from
£4.38 Incl. VAT
Oops! Please select from the options
Delivery from: 1-2 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Wednesday, May 29th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

"Easy ordering and fast delivery"

Ian Elliott

Description

Fully supportive of up to 2100kg compression in a temperature scale from -40°C up to 120°C, this recyclable polypropylene pedestal from RynoDeck is compatible with all kinds of decking or floor joists and is self-levelling and adjustable. Allowing for height corrections, this RynoDeck does not require shims.

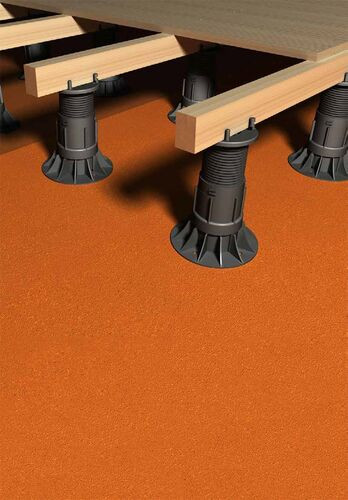

The wide supporting base distributes the load of the decking without difficulty to protect the membranes from being punctured by the weight. Featuring a height extension collar enabling 100mm build-ups and an adjustable threaded section giving more precise millimetre adjustment, this pedestal also has a self-levelling bearer support head with a ball and socket joint so that you can correct the levelling by up to 6° or 10.5% for a completely level system. With versatile joist lugs allowing for differing bearer widths of up to 100mm, the bearer support head can be substituted by an interchangeable deck tile head for fitting decking tiles as a replacement for timber.

Features & Benefits: RynoDeck RDA Self-Levelling Adjustable Decking Pedestal

  • Temperature range of -40°C to 120°C
  • Mould, bitumen, algae and alkali resistant
  • Height range of 40mm to 1000mm
  • Made from polypropylene
  • Removes the need for shims
  • Slope correction up to 10.5% or 6°
  • Can support 2100kg compression
  • Recyclable
  • Self-levelling and adjustable
  • Compatible with all types of floor and decking joists

Without the necessity for shims, you can reduce the amount of time taken to find the correct height adjustment, you require less parts on site and you don't have to trouble of not having enough shims to finish your installation. This RynoDeck pedestal is algae, mould, bitumen and alkali resistant.



Details

Height 40mm - 56mm
50mm - 70mm
70mm - 110mm
110mm - 160mm
150mm - 210mm
200mm - 300mm
300mm - 400mm
400mm - 500mm
500mm - 600mm
600mm - 700mm
700mm - 800mm
800mm - 900mm
900mm - 1000mm
Colour Black Material Polypropylene Decking Support Pedestals

Downloads

There are no product downloads to show.

Questions & Answers

Question:

Please can you confirm if your product: 52.0007 will accommodate 50 x 100mm joists?

Answer:

Yes on the 50mm

Question:

Is this a pack of 5 or just one? Thanks

Answer:

One unit

Question:

what is the recommended centres between pedestals to support 100X50 treated timber joists

Answer:

400mm to 600mm depending on what's going on top. eg a hot tub would be 400mm

Question:

what size decking joists will these take

Answer:

50mm wide

Question:

How far do i need to space these?

Answer:

Depending on the job but as a rule every 400mm

Question:

Is this product suitable for levelling a wooden deck to support a hottub?

Answer:

It would work but I would decrease the standard spacing to be safe

Question:

What is the recommended spacing for these risers. My log cabin is 5m x 3m with 32 x 48mm floor bearers spaced approx 500mm apart.

Answer:

Between 400 and 500mm depending on the carry load

Question:

How many are suggested per square metre for composite decking please? I am looking at 12 - 13m2 of decking.

Answer:

You would use them at least every 400mm along your timber supports, so best to look at the total timber you are using and work out a qty from that total linear meterage.

Question:

Can this product be used to level a wooden decking frame?

Answer:

Yes this product is perfect for that use.

Question:

How many supports would I need for a raised 4200x4200 deck using a C24 150x50 sub-frame on a lawn supporting 150x50 decking joists spaced at 400mm? The lawn slopes by 5%.

Answer:

The best way to calculate this is take the total linear meterage of timber you are getting and divide that by the 400mm spacing.

Question:

How many would I need for a 3.5m2 floating deck on hardcore? To hold small inflatable hot tub weighted with people at approx 1500kgs.

Answer:

You want to use these at least every 400mm along the timbers so if you know the total linear meters of timber you are getting to create the deck best to work from that calculation for how many you will need.

Question:

I'm going to build a shed base. I'm going to use a kiln dried 4x2 timber frame. what decking pedestal could you recommend?

Answer:

These decking pedestals would be suitable.

Question:

Hi there just a quick question on how do you fix the decking joist to RDA-7?

Answer:

They rest against the fixing bracket on the top and can then be screwed through that bracket.

Question:

How many do you get thanks?

Answer:

This is the individual price per cradle, if you wanted an estimate of how many you needed please send your build details through to sales@roofingsuperstore.co.uk.
