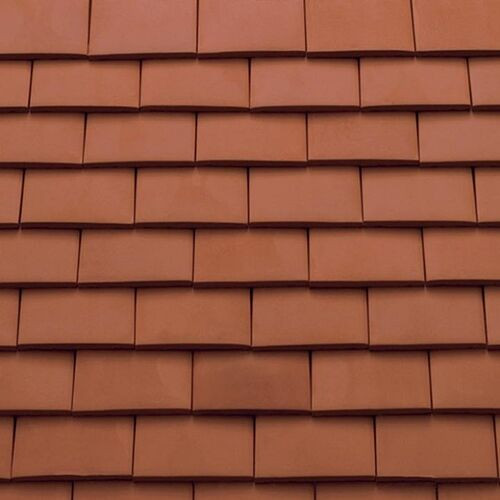

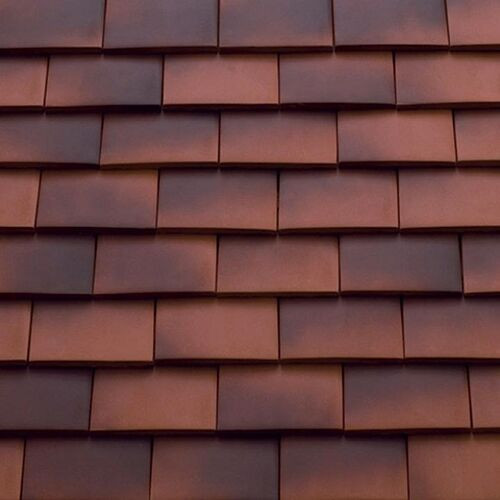

The Humber plain tile is a traditional, cross cambered, machine made clay plain tile. Available in four rich colours and offering exceptional durability, the Humber tile gives complete design and flexibility and is perfect for complex roofs or vertical cladding.

Features

• The Humber plain tile has clean lines and a double cambered design delivering striking aesthetics.
• The use of Sandtoft's easy-to-cut alluvial clay, provides higher levels of on-site flexibility.
• Each Humber tile is made with the finest quality alluvial clay from the planes of the river Humber.
• Available in four rich colours (Tuscan, Natural Red, Flanders and Antique)
• Offers exceptional durability, the Humber tile will never fade; weathering and maturing naturally to create a roof of character and elegant charm.
• Complements other Sandtoft clay tiles such as the 20/20 and the Pantile.

Specification

Material: Clay
Headlap (Roof): 65mm
Headlap (Vertical): 38mm
Tile Dimensions: 265mm x 165mm (both Roof and Vertical)
Batten Spacing (Roof): 100 mm
Batten Spacing (Vertical): 114 mm
Weight as laid per m² (Roof): 60 kg
Weight as laid per m² (Vertical): 53 kg
Weight per 1000: 1.123 tonnes
Weight/Tile: 1.0 KG
Minimum Roof Pitch: 35?/ 75?
Tile Coverage per m² (Roof): 60.0 tiles
Tile Coverage per m² (Vertical): 53.0 tiles
Quantity per pallet: 540
