TapcoSlate Synthetic Hip and Ridge

Code:

PARENT-TAPCO-SYNTHETIC-HIP-AND-RIDGE

Brand:

TapcoSlate

View full product details

Ask a question about this product

Colour

from

£5.30 Incl. VAT

Earn points

Delivery from: 1-2 Working Days

Shipping costs displayed in basket.

For delivery Tuesday, May 19th - order in:

days hrs mins secs

View Transport Policy

View full product details

Ask a question about this product

Create a wishlist

Description

An important part of any pitched roof due to its ability to not only protect the ridge of your TapcoSlate Classic roof but also provides a decorative and professional finish once complete, the TapcoSlate Synthetic Hip and Ridge is available in a wide array of colours ranging from vibrant Brick Red to a dark and dramatic Stone Black. Made from the same lightweight and durable material as the popular TapcoSlate Classic range, this dry-fix ridge and hip cap offers a universal fixed ridge solution for almost any angle.

Suitable for most roof pitches, from 12° to 70°, these fittings are designed with a degree of flexibility to allow for easy fixing. They measure 440mm in overall length, with a facing pattern length of 210mm and a length of overlap of 230mm. The side length is 160mm, and six units cover one linear metre in ridge/hip lengths.

Features & Benefits: TapcoSlate Synthetic Hip and Ridge

Made from the same eco-friendly, lightweight and durable material as TapcoSlate Classic
A universal fixed ridge solution for any angle and roof pitch from 12° to 70°
Ridge and Hip tiles are mechanically fixed
Pre-marked nailing guides and spacers make installation easy
Can be cut with a sharp utility blade or fine-toothed saw
Fully tested to BBA, UKTA, and ETA standards
UKCA and CE marked, resistant to wind, driven snow and rain, and water absorption
40-year warranty

Installing TapcoSlate Classic Ridge and Hip caps is incredibly easy thanks to the pre-marked nailing guides and spacers, and cutting the caps with a sharp utility blade or fine-toothed saw is also a quick and straightforward process.

Standards & Certification

Fully tested to BBA, UKTA and ETA standards, and has UKCA and CE marking, including fire rating, wind, driven snow & rain, and water absorption.

Please note:

Six units cover one linear metre in ridge/hip lengths.
These ridge/hip tiles are not made from recycled plastics but are manufactured from recyclable virgin limestone and polypropylene, making it an eco-friendly choice.
It should be heated with a hot-air gun along the ridge before attempting to bend into shape.

Specification

Details

Type: Hip
Ridge

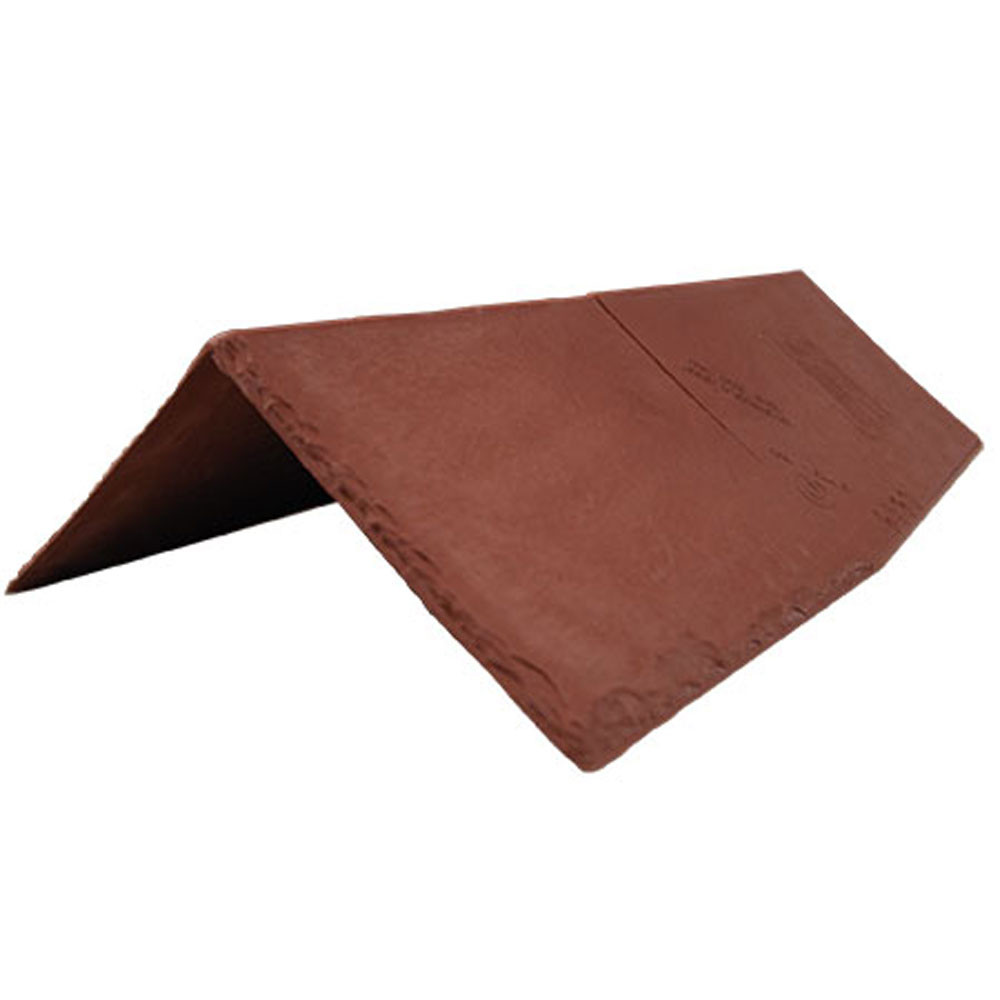

Colour: Brick Red

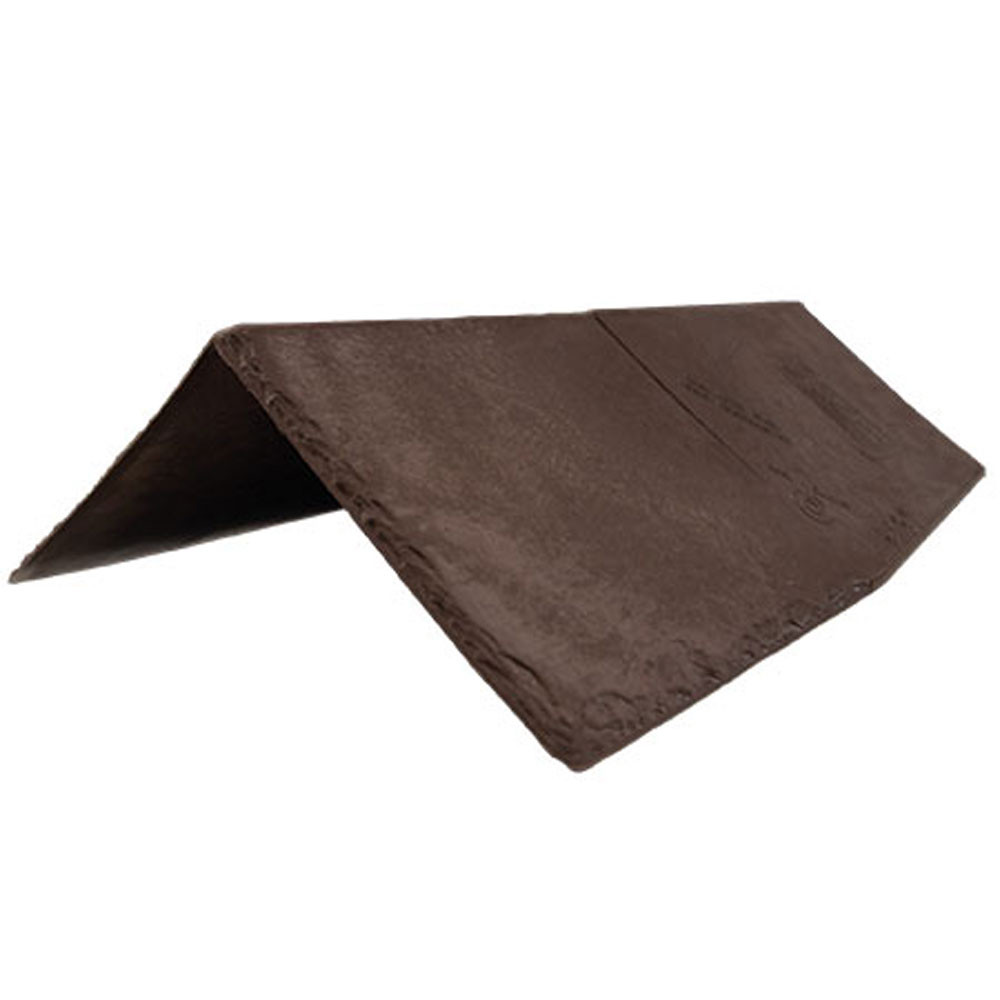

Chestnut Brown

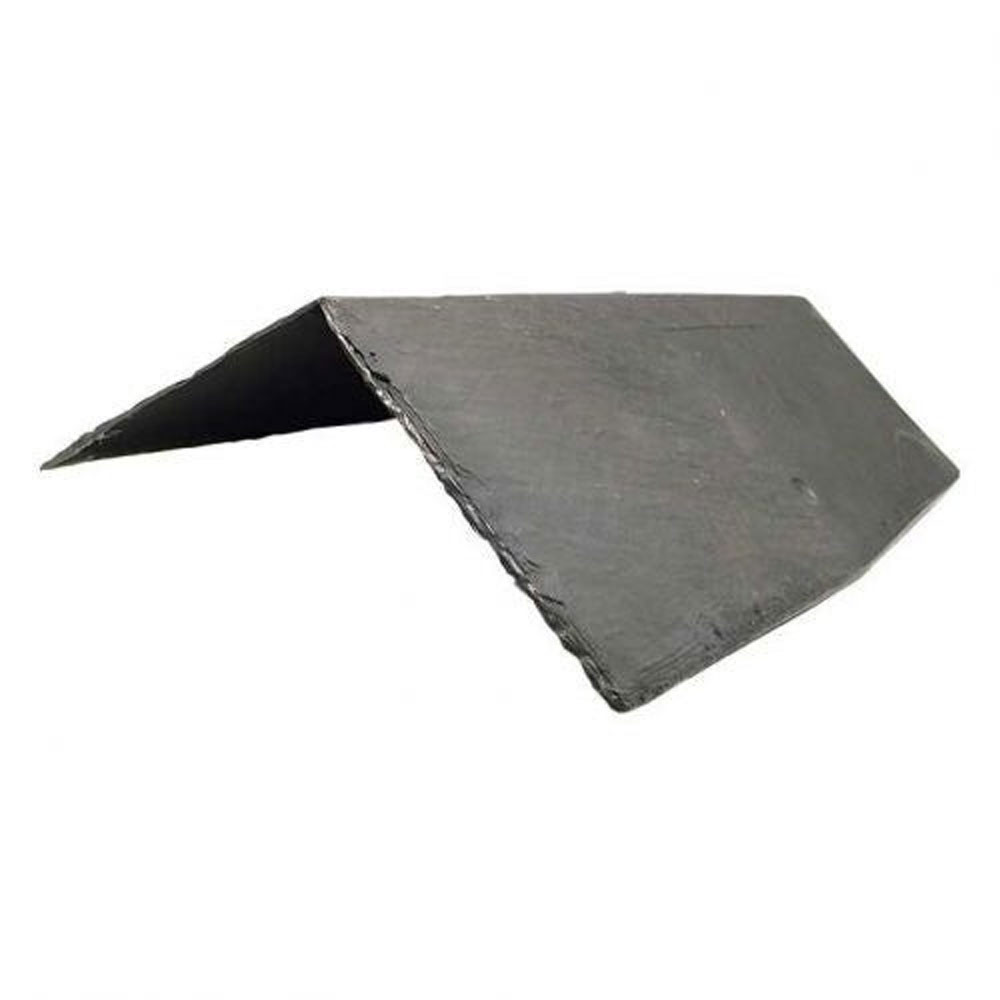

Mist Grey

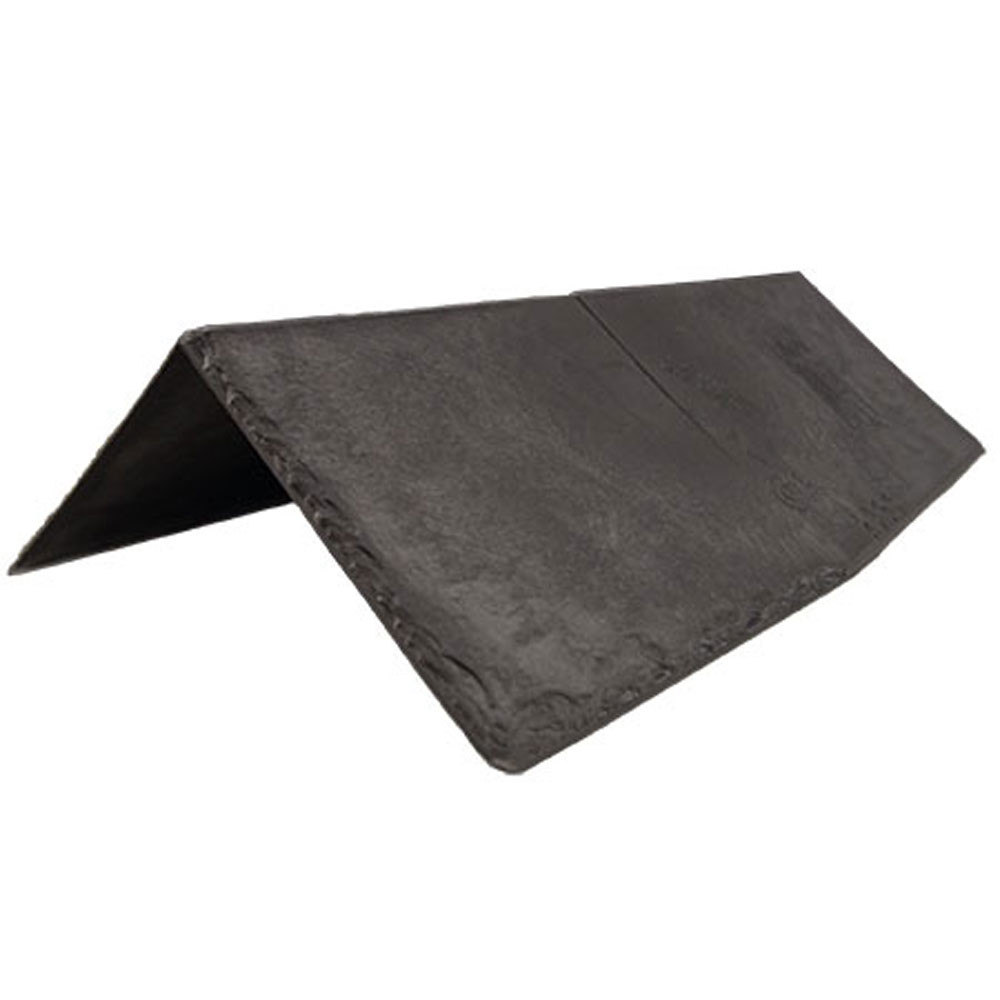

Pewter Grey

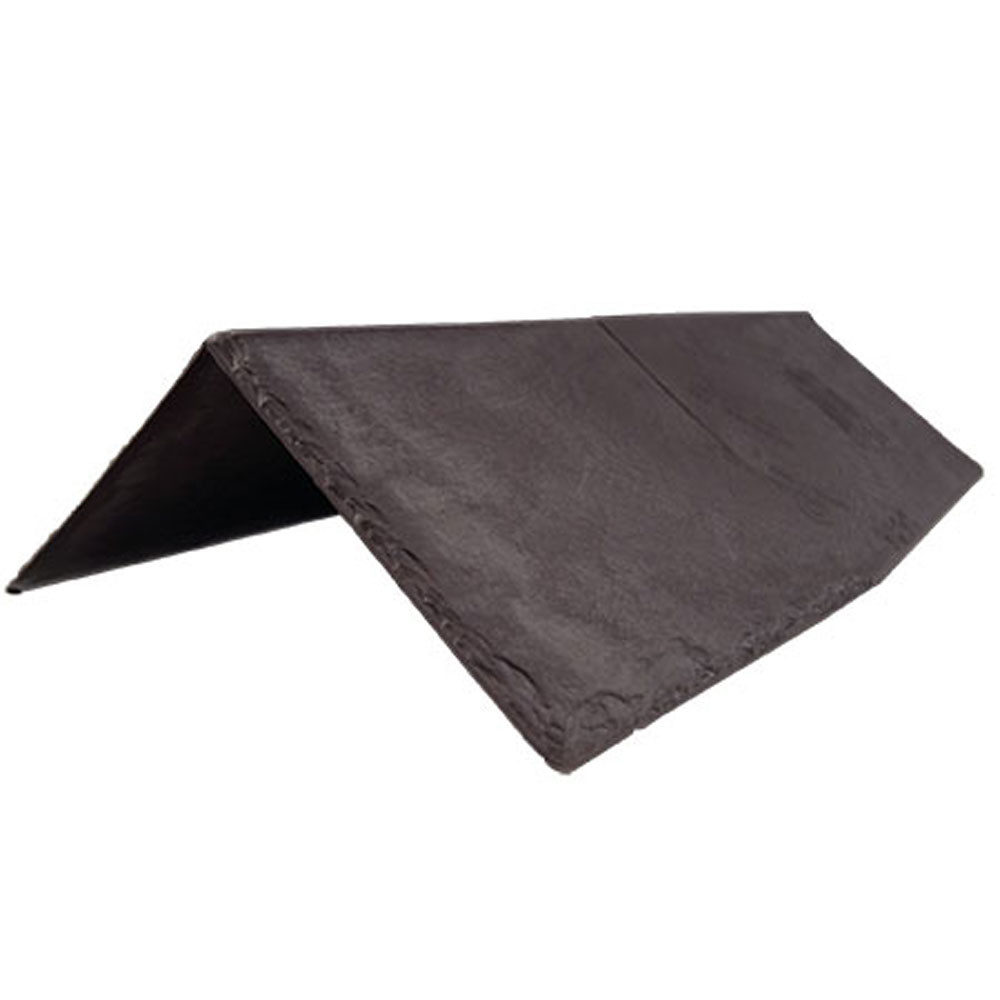

Plum

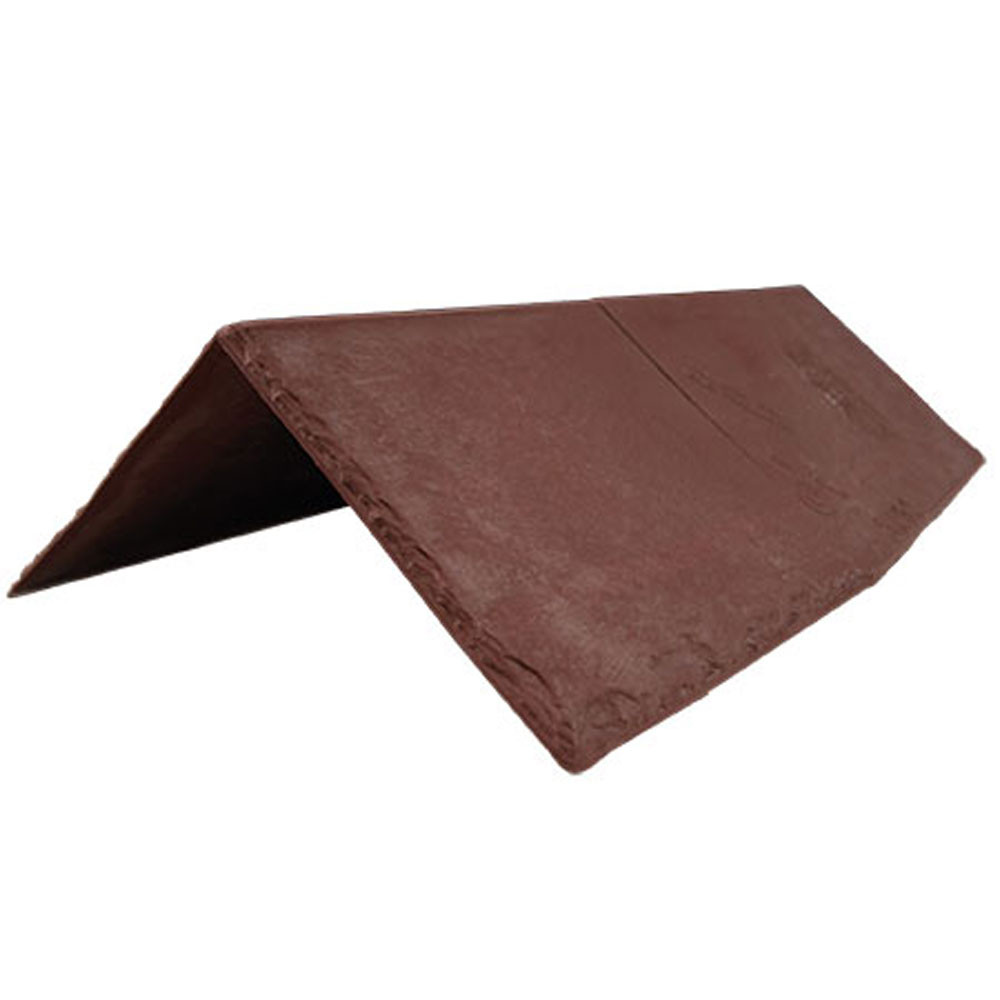

Red Rock

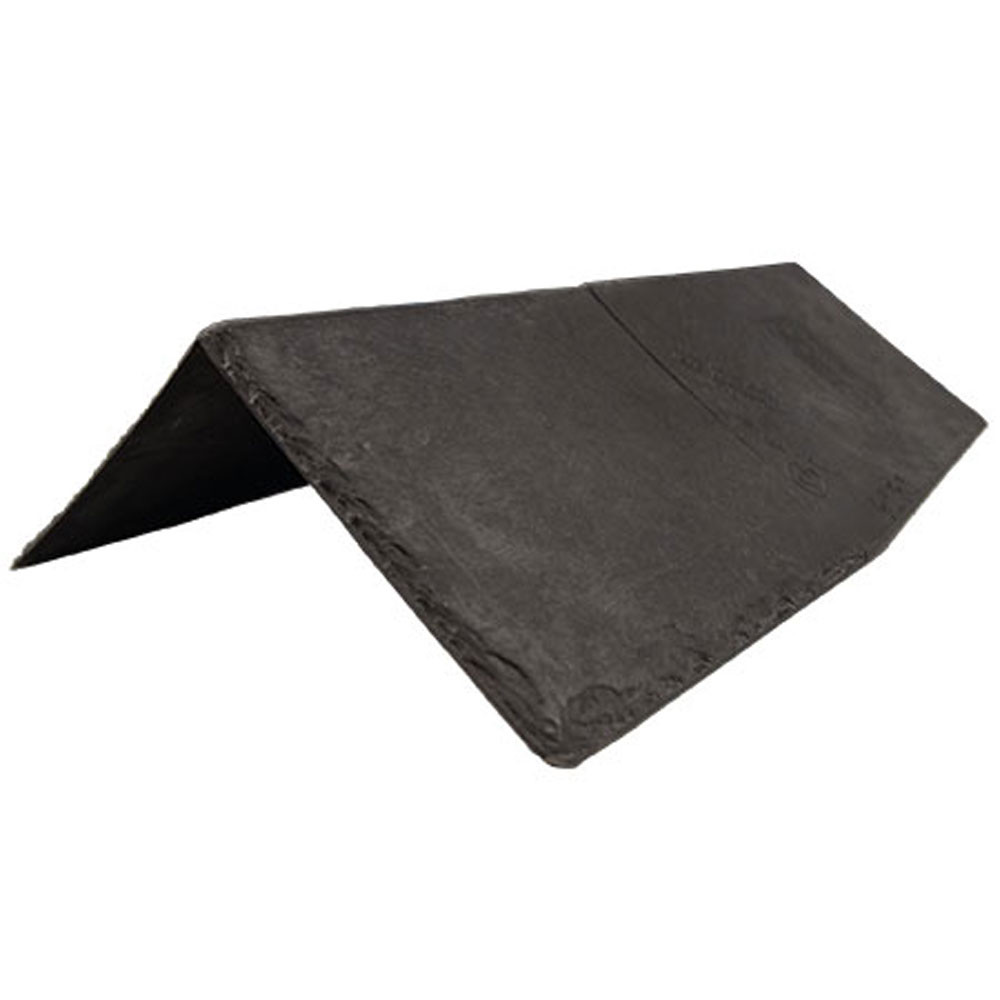

Stone Black
Winter Green Mix

Material: Plastic

Profile: Universal

Downloads

Questions & Answers

Question:

I have a hipped roof where the main roof pitch is 20 degrees. The hips rafters run at a lower pitch because they are on a 45. they're around abour 14.5 degree. The bevel of the hip is roughly 130 degree. Will these ridge tiles work?

Answer:

Yes — Tapco synthetic ridge/hip tiles will work on a 20° main roof and ~14.5° hip pitch. Tapco slates are tested for pitches as low as 12°, and the ridge/hip caps are designed to flex to suit a wide range of hip bevels.

Question:

Is this ridge tile for a mono pitch roof?

Answer:

Technically, they don't make a mono ridge. You would have to bend this and mechanically fix it on site

Question:

Hi- to roof a dual pitched roof garden office with ridge length of 5.5metres, how many of these ridge tiles wd I need please? Thanks

Answer:

I will email you a quote

Question:

What degree ridge tiles is this

Answer:

Its a universal hip ridge system so should cover all degree's

Question:

What is the angle of the product? Thanks

Answer:

Hip and Ridge Dimensions cover 90° and 140°

Question:

What nails/screws are needed to put this roof on please?

Answer:

Galvanised/stainless steel or copper fasteners with a minimum 3/8" (10mm) diameter head and a minimum length of 30mm. Corrosion-resistant fasteners are always recommended, especially in coastal areas. The length of the Hip & Ridge fastener should be a minimum length of 2" (51mm) over the slates and 3" (76mm) over ridge vent.
