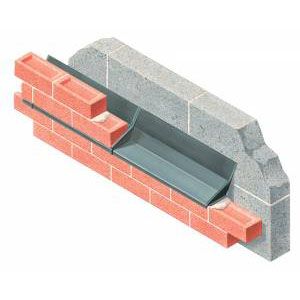

The Type E is a preformed DPC cavitray which is inserted into an existing cavity wall. The Type E requires only one course of bricks to be disturbed, with just a few bricks removed at any time. The self-contained Type E cavitrays are the length of two bricks, and clip together, so long runs are easily and quickly created. Preformed angles cater for corners and piers. Each unit has stand-alone discharge via a weep. Suitable for all popular cavity widths because the cavity upstand of the Type E is hinged and adjusts to always suit the ‘as-found’ cavity width.

Cavitray for insertion into an existing wall.

Properties

Length: 450mm.
Widths accommodated: 50mm to 140mm.
Thermal transmission: 0.15 to 0.17.
Material: polypropylene DPC.
Colour: black.
ODP: zero.

Application

To prevent damp penetrating an original outside wall that has become an inside wall by virtue of an extension being built. To re-establish damp control measures where an original DPC has failed.

Benefits

• Brick-sized cavitrays permit progressive insertion.
• Anticapil interlocking to form long runs.
• Cavity widths compatible - upstand adjusts to suit.
• Unobstructed cavity compartment area with stand-alone discharge.
• Easy compliance with building regulations.
