Type RAV-FL Flat Roof Abutment Ventilator 1.2m

Code:
RAV-FL

Airflow is vital for roofing, and with the Type RAV-FL Flat Roof Abutment Ventilator, you can promote air entry where a flat roof abuts a vertical masonry wall. It's compatible for use with our horizontal intersection cavity trays, which may be established at a higher level to... Read More

£30.66 Incl. VAT
Earn points

SUPER Rewards Earn points and build more across our SUPERSTORES!

Find out more
Oops! Please select from the options
Est. Delivery: 2-3 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Thursday, Oct 10th - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

"The service from Roofing superstor…"

Mr Weston

Description

Airflow is vital for roofing, and with the Type RAV-FL Flat Roof Abutment Ventilator, you can promote air entry where a flat roof abuts a vertical masonry wall. It's compatible for use with our horizontal intersection cavity trays, which may be established at a higher level to permit the flashing to be dressed down to cover the external shell of the RAV-FL profile

Each unit measures 1.2 metres long and features a heavy-duty profile with an integral pivot-hold hinge. This permits easy and direct fixing as the profile may be secured to the vertical board upstand when opened like a book. The profile is then closed and fixing is completed by securing the top of the profile to the masonry wall. An air ventilation path which complies with the current regulations is established at the flat roof intersection.

Features & Benefits: Type RAV-FL Flat Roof Abutment Ventilator 1.2m

  • Promotes air entry at flat roof-vertical masonry wall junction
  • Compatible with horizontal intersection cavity trays
  • Trays can be at a higher level for flashing coverage
  • Each unit is 1.2 metres long and has a heavy-duty profile with integral pivot-hold hinge
  • Easy and direct fixing
  • Secured to vertical board upstand
  • Closed profile fixed to masonry wall
  • Complies with current regulations for air ventilation path
  • Supplied with pre-drilled fixing holes and integral insect-resistant grille
  • Faster and easier fitting process

This ventilator is supplied with pre-drilled fixing holes and an integral insect-resistant grille, further helping the task run more smoothly with a faster and easier fitting process.

Please note:

  • Integral ventilation grille promotes equivalent of a 25mm continuous gap.

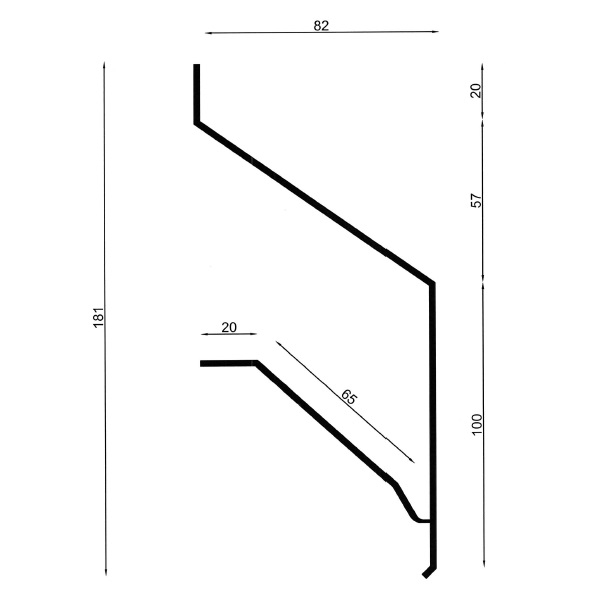

Dimensions

Length 200mm Depth 3mm Width 1200mm

Details

Colour Grey Material PVCu

Questions & Answers

Question:

Do these overlap and if so by how much? Or do they but up tight to one another.

Answer:

They butt up together

Question:

What is the minimum level the vent need to be fitted at. I have a upstand that is 130mm to the underside of the door threshold.

Answer:

Please call in and speak with a team member as there may be alternatives to discuss

Question:

I don’t understand where the air flows to if lead flashing covers the whole vent. Where is the moist air going?

Answer:

Please call in and speak with one of the team

Question:

Hi do you supply a flashing kit for this roof ventilation kit?

Answer:

Nothing specific is provided with it, you can flash over the top of it with Lead or Lead alternative, whichever flashing you prefer.

Question:

Does this product require a flashing over the top? What gap is required between the upstanding and the wall. I have a 50 mm wall plate.

Answer:

You do need to Flash over the top to create a water tight seal, you would ideally want at least a 25mm air gap for ventilation.
