VELUX EDJ CK01 2800 Conservation Recessed Tile Flashing - 55cm x 70cm

Name: VELUX EDJ CK01 2800 Conservation Recessed Tile Flashing - 55cm x 70cm
Brand: VELUX
SKU: EDJ CK01 2800
Price: 153.00 GBP
Availability: Discontinued

Code:

EDJ CK01 2800

Brand:

VELUX

This item is out of stock and not available to purchase.

View alternative products

Please note this energy efficient recessed tile flashing for a CK04 conservation window comes with a BDX insulation collar and a BFX underfelt collar for optimal thermal performance. VELUX EDJ - Recessed tile flashingsRecessed flashings provide a sleek, streamlined finish as th...Read More

View full product details

View questions about this product

Create a wishlist

Maintenance

Description

Please note this energy efficient recessed tile flashing for a CK04 conservation window comes with a BDX insulation collar and a BFX underfelt collar for optimal thermal performance.

VELUX EDJ - Recessed tile flashings

Recessed flashings provide a sleek, streamlined finish as the window is installed deeper in the roof structure meaning that less of the window protrudes above the roofline.

For recessed installation heights install the brackets at the sides of the frame and at the blue line level.

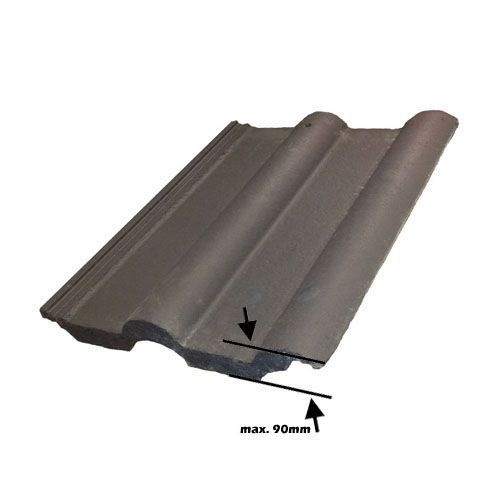

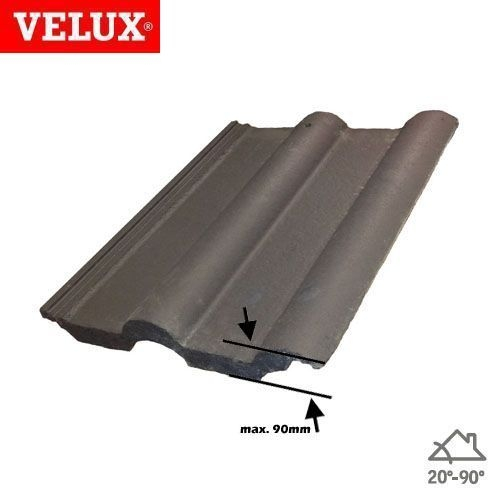

Recessed flashings for installing one roof window into tiles up to 90mm in profile.
Roof pitch between 20 and 90°.
10 year guarantee.

Flashings

VELUX flashings integrate with the roof covering to provide a weathertight finish around the window.
They are compatible with virtually any type of roofing material, from standard covers such as slate and tiles through to corrugated sheeting or even thatch.
Flashings are designed to sit under the roofing materials.
The water from the roof is then collected in the built-in guttering system.
The gutter overlaps a second section of the flashing to help the water flow smoothly down the side of the window.

Insulation collar - BDX

Insulates around the roof window frame, reducing heat loss and eliminating cold bridges.
Makes insulating and installing the window a simple process.
Click fittings ensure a fast and accurate assembly.
Comes with an underfelt collar - BFX.

Underfelt collar - BFX

Ensures a weather-tight seal between the roof window and the roof.
Pleated material ensures a flexible and tight seal to the underfelt of the roof, whatever it's construction.
Made from diffusion open material to minimise the risk of condensation.
Comes with transverse drainage gutter to lead water away from the head of the window if a tile or slate is broken above the window.
Welded corners ensure a watertight and simple installation.

Specification

Dimensions

Size CK01 - 55 x 70cm Width 550mm

Details

Code EDJ Height 700mm Thickness Up to 90mm Roof Covering Universal Tile

Flashing Type Recessed Flashing
