VELUX EDN CK02 0800 Conservation Recessed Slate Flashing - 55cm x 78cm

Code:
EDN CK02 0800
Brand:

This item is out of stock and not available to purchase.

Recessed slate flashings - EDNRecessed flashings provide a sleek, streamlined finish as the window is installed deeper in the roof structure meaning that less of the window protrudes above the roofline. For recessed installation heights install the brackets at the sides...Read More

Create a wishlist

"Excellent service."

Gill C

Description

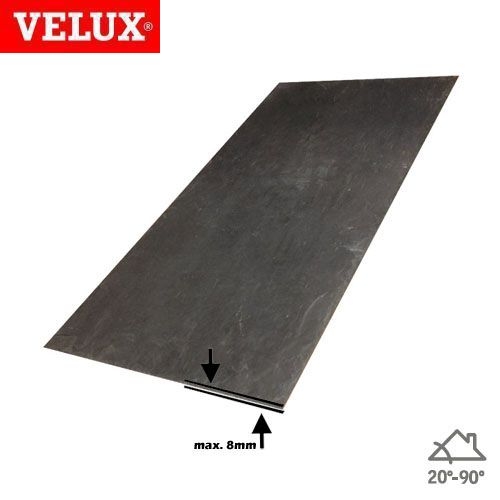

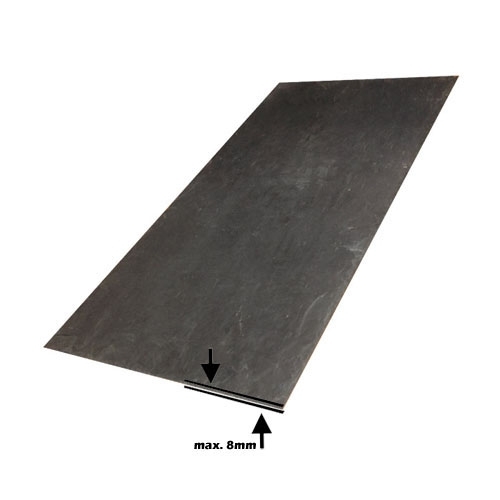

Recessed slate flashings - EDN

  • Recessed flashings provide a sleek, streamlined finish as the window is installed deeper in the roof structure meaning that less of the window protrudes above the roofline.
  • For recessed installation heights install the brackets at the sides of the frame and at the blue line level.
  • Recessed flashings for installing one roof window into slate up to 8mm thick.
  • Not for interlocking slate.
  • Roof pitch between 20 and 90°.
  • 10 year guarantee.

Flashing

  • VELUX flashings integrate with the roof covering to provide a weathertight finish around the window.
  • They are compatible with virtually any type of roofing material, from standard covers such as slate and tiles through to corrugated sheeting or even thatch.
  • Flashings are designed to sit under the roofing materials.
  • The water from the roof is then collected in the built-in guttering system.
  • The gutter overlaps a second section of the flashing to help the water flow smoothly down the side of the window.

Insulation collar - BDX

  • Insulates around the roof window frame, reducing heat loss and eliminating cold bridges.
  • Makes insulating and installing the window a simple process.
  • Click fittings ensure a fast and accurate assembly.
  • Comes with an underfelt collar - BFX.

Underfelt collar - BFX

  • Ensures a weather-tight seal between the roof window and the roof.
  • Pleated material ensures a flexible and tight seal to the underfelt of the roof, whatever it's construction.
  • Made from diffusion open material to minimise the risk of condensation.
  • Comes with transverse drainage gutter to lead water away from the head of the window if a tile or slate is broken above the window.
  • Welded corners ensure a watertight and simple installation.

Dimensions

Size CK02 - 55 x 78cm Width 550mm

Details

Code EDN Height 780mm Thickness Up to 8mm Roof Covering Slate
Flashing Type Recessed Flashing
