VELUX White Maintenance Free GGU SK06 SD0L140 Smoke Vent System for 8mm Slates 114cm x 118cm

Code:
GGU SK06 S40L01
Brand:

This GGU SK06 SD0L140 smoke and vent system from VELUX includes an electrically operated centre-pivot roof window with double glazing and a moisture-resistant white polyurethane finish. It also features an EDL flashing kit for 8mm thick slates, as well as the required elements...Read More

£1,862.00 Incl. VAT
Oops! Please select from the options
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

For delivery Tuesday, Apr 23rd - order in:
days hrs mins secs
Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

Create a wishlist

5% off VELUX, FAKRO & RoofLITE windows on all orders over £750 ex VAT

USE CODE: WINDOW5
CODE COPIED
Ends: 30 Apr 2024 23:59

Description

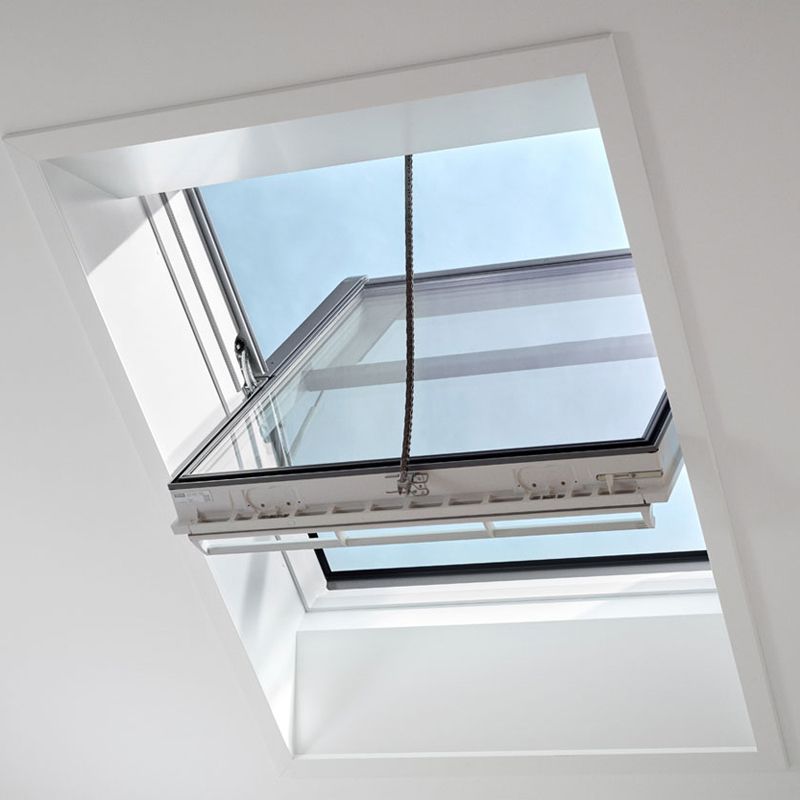

This GGU SK06 SD0L140 smoke and vent system from VELUX includes an electrically operated centre-pivot roof window with double glazing and a moisture-resistant white polyurethane finish. It also features an EDL flashing kit for 8mm thick slates, as well as the required elements for forming a complete system.

Perfect for releasing heat and smoke, this VELUX smoke ventilation control system boasts a variety of features with a smoke ventilation window that automatically opens to a full fire position in a rapid 60 seconds after smoke ventilation activation. The window has also undergone rigorous testing to comply with all EU requirements, and you are able to open it when you require a flow of fresh air throughout the space.

Features & Benefits: VELUX White Maintenance Free GGU SK06 SD0L140 Smoke Vent System for 8mm Slates 114cm x 118cm

  • Moisture-resistant and low maintenance white polyurethane finish
  • Electrically operated centre-pivot roof window
  • Double glazed with a 1.3W/m²K uValue
  • Comparable exterior to other VELUX sloped roof windows
  • Suited to slates up to 8mm thick
  • Appropriate for roof pitches from 15° up to 60° (90°)
  • 1m² (SK06 size) of smoke free ventilation area
  • 10-year guarantee on windows and flashings
  • 3-year guarantee on all electrical products and accessories

The VELUX double glazing (70) equips your window with a plethora of advantages. The safety laminated inner pane stops broken glass from spilling into the room, while the outer pane includes toughened glass to improve resilience against external environmental factors. Additionally, a UV filter is integrated to protect interior furnishings against the damage of sun's harmful rays. The up to 35dB sound insulation and rain noise reduction are ideal for maintain calm and quiet environments. By reduces the sound of heavy rainfall, the window promotes a restful sleep.

System Includes:

  • 1 x break glass point
  • 1 x EDL slate flashing kit
  • 1 x wall control unit
  • 1 x smoke sensor
  • Single electrically operated GGU centre-pivot roof window with a white polyurethane finish

Standards & Certification

  • Tested according to DIN EN 12101-2

Please note:

  • For aerodynamic smoke ventilation, the system is certified to EN ISO12101-1 for roof pitches between 15° and 60°. For geometric smoke ventilation, the system is certified to EN ISO12101-2 for roof pitches between 15° and 90°.
  • For compliance with aerodynamic smoke ventilation requirements, you can include the optional KFD external wind deflector.
  • The EDL flashing is not suitable for use with interlocking slate.

Dimensions

Length 170mm Depth 1316mm Size SK06 - 114 x 118cm Width 1140mm

Details

Code GGU Height 1180mm Type Centre-pivot Finish White Polyurethane
White Maintenance Free
Operation Smoke Ventilation Glazing Double Glazing Pitch 15 - 90 degrees U Value 1.2

Downloads

There are no product downloads to show.

Questions & Answers

Question:

What's the dimension for projection from the roof plane please?

Answer:

Approx 518mm

Question:

Can you please email me the product details you are supplying i.e the type of break glass point, the type of wall control unit and the smoke sensor. I need a kit for a single roof window with one call point on the ground floor for the fire brigade

Answer:

I have sent you a quote with all the items listed

Question:

May I HAVE 1. link to installation and pre-req spec eg electrical requirements 2. Is there a requirement to have fire brigaded key access switch at ground floor common access entrance for forced opening & closing by fire brigade.

Answer:

I will send you a quote with the right items on it

Question:

Hi, I just wanted to check if this product also comes with all the electrical kit to open this window when their is a fire, also can you email me the specifications and installation instructions so I can work out how I'm going to install this. Thanks

Answer:

Hi Andrew

That part number includes the full system

Smoke ventilation system
• Single electrically operated GGU white polyurethane coated roof window with a toughened outer pane, clear and clean coating and a laminated inner pane for additional safety.
• 1x smoke sensor.
• 1x break glass point.
• 1x wall control unit.
• 1x slate flashing kit.

Question:

Can you confirm that this product provides at least 1m2 of smoke ventilation when open?

Answer:

This is advised by Velux to achieve the recommended 1m2 of Free Ventillation area as advised by building control to install 1 of these units.
