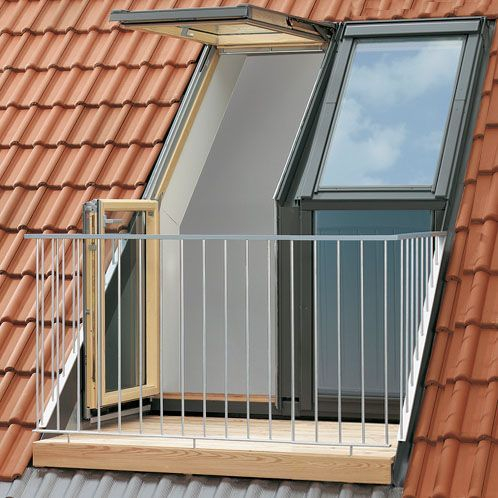

Designed by VELUX and intended for use with 8mm thick slates, this twin roof terrace window system is right-hand opening and has a two-window triple glazed structure. Ideal for creating a comprehensive and accessible terrace or balcony, this 1580mm wide x 2450mm high VELUX roo... Read More
SUPER Rewards Earn points and build more across our SUPERSTORES!
Find out more
Designed by VELUX and intended for use with 8mm thick slates, this twin roof terrace window system is right-hand opening and has a two-window triple glazed structure. Ideal for creating a comprehensive and accessible terrace or balcony, this 1580mm wide x 2450mm high VELUX roof terrace both looks fantastic and is easy to install with the necessary flashings provided, as well as EEX rail supports with standard sizes.
This VELUX terrace is perfectly compatible with roof pitches that vary between 35° and 53°. It includes two top hung windows that open simultaneously for terrace access and a right-hung vertical window that opens to 45°.
Equipped with a triple-coated Nordic pine interior and a sleek grey aluminium exterior, this terrace system is incredibly pleasing to the eye. Not only is it sleek and modern, but it incorporates a uValue of 1.4W/m²K and 35dB of noise reduction while creating a bright and open area to liven up your home.
This system provides you with two M08 Top Hung VELUX Windows, one VEB M35 Right Hung Vertical VELUX Window, one VEC M35 Fixed Vertical VELUX Window and one EBY W10 3100 Trimmer to create a complete terrace.
Please note:
There are no product specifications to show.
Question:
My client would like a 3 or 4 window version of the twin terrace GEL M08 SE0L223 rooflight. is there such a thing or would it be a matter of putting 2 together. I take it that double attic type trusses are required between each window and at both sides? Joe McCormick, McCormick Design, Architectural Consultants
Answer:
In response to your query, the VELUX GEL M08 SE0L223 Twin Roof Terrace is designed as a two-window system. To achieve a 3 or 4 window configuration, you may need to consider installing two of these units side by side. However, this would depend on the specific requirements and structural integrity of the building. As for the trusses, it's likely that additional support will be necessary between each window and on both sides. This is to ensure the stability and safety of the structure. But, the exact requirements would depend on your specific project and should be confirmed by a structural engineer. For more information on the installation of this product, you may find it helpful to refer to the Installation Guide. Please note that while we strive to provide accurate information, we recommend consulting with the supplier or a technical expert to confirm these details before proceeding with any installation.
