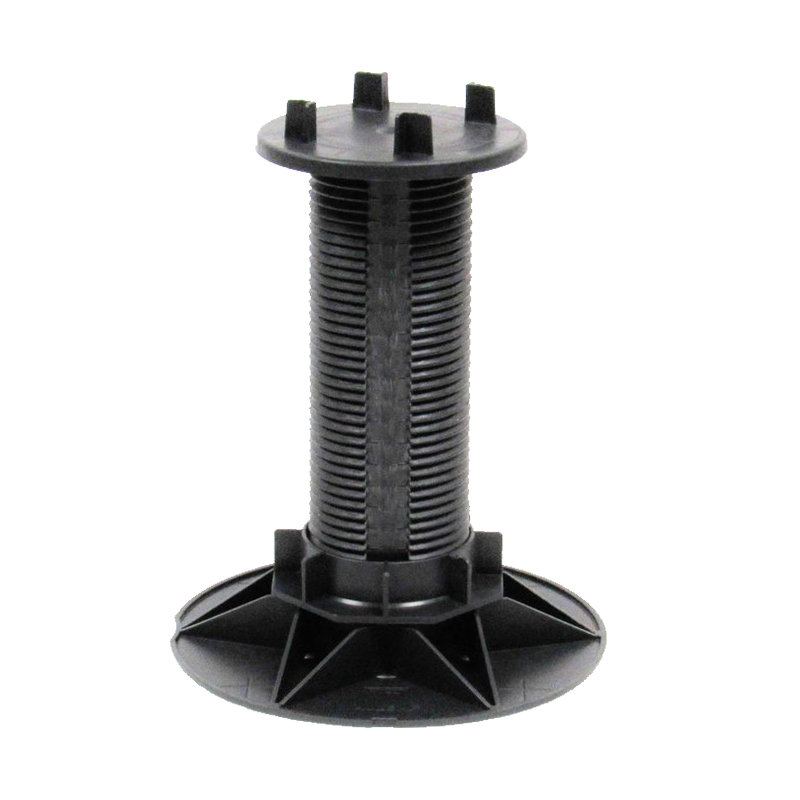

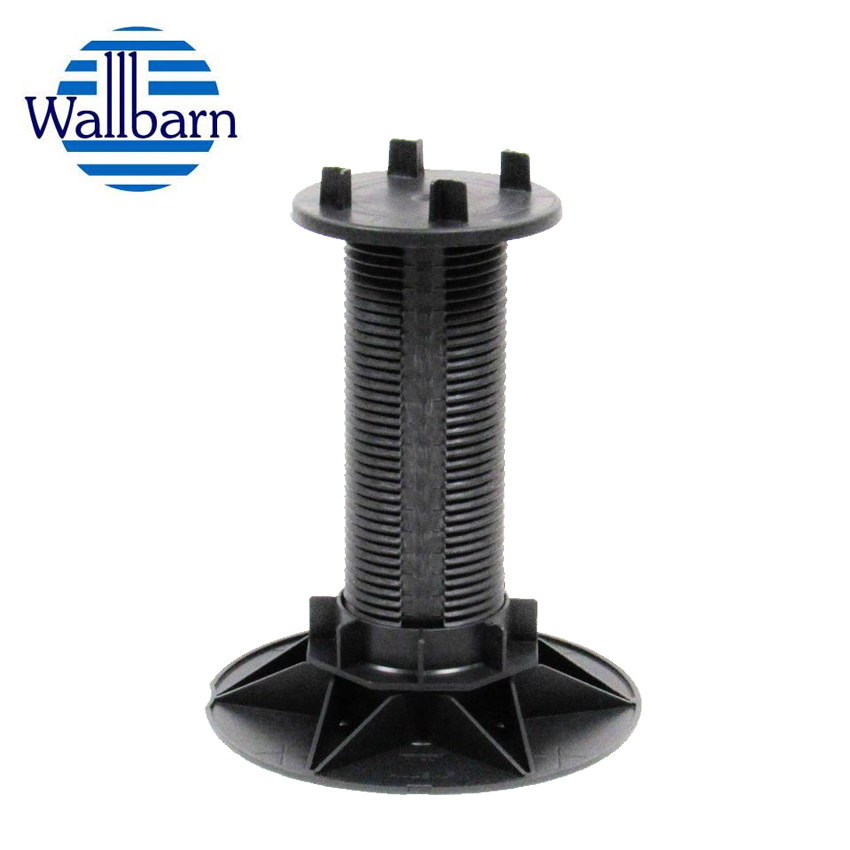

Wallbarn TD EXTRA 210-380mm Timber Decking Pedestal

Code:
SP-TD-EXTRA-210-Z
Brand:
Free UK Delivery

TD Extra gives installers greater flexibility as the height range per unit is far greater. They even have the height marked on the side of their stems. This range of pedestals has been designed to give applicators much greater scope to lay decking on areas with very large dif...Read More

Create a wishlist

"Order processed and dispatched rea…"

Julian Dwane

Description

TD Extra gives installers greater flexibility as the height range per unit is far greater. They even have the height marked on the side of their stems.

This range of pedestals has been designed to give applicators much greater scope to lay decking on areas with very large differences in deck level. Often contractors are not sure exactly by how much and where the fall on the roof will be exactly, and it can be frustrating when a slightly incorrect height of TD unit has been purchased.

These pedestals have the heights marked out every 10mm on the side of stems, so users can see at a glance the exact height they are adjusting to without having to constantly re-measure.

Each TD EXTRA pedestal comes complete with an extension shank. This shank clicks into the baseplate and the threaded stem is placed into the top of it.

All TD EXTRA support pedestals can have slope correctors fitted to their bases. TD EXTRA pedestals offer flexibility and freedom to installers of decking systems if they are unsure of exactly where the deck falls and by how much.

Technical Information

Material: Virgin fibre injection moulded polypropylene
Weight Tolerance: Maximum Load 11,493 N = 1,171kg
End of Linear Behaviour at 6,700N = 683kg
Max Temperature: Plus 75° C
Min Temperature: Minus 40°C
Base Plate Diameter: 200mm
Headpiece Diameter: 120mm
Peg / Lug Height: 18mm
Distance Between Pegs / Lugs: 40mm and 60mm

Details

Height 210mm - 380mm Material Polypropylene Decking Support Pedestals
